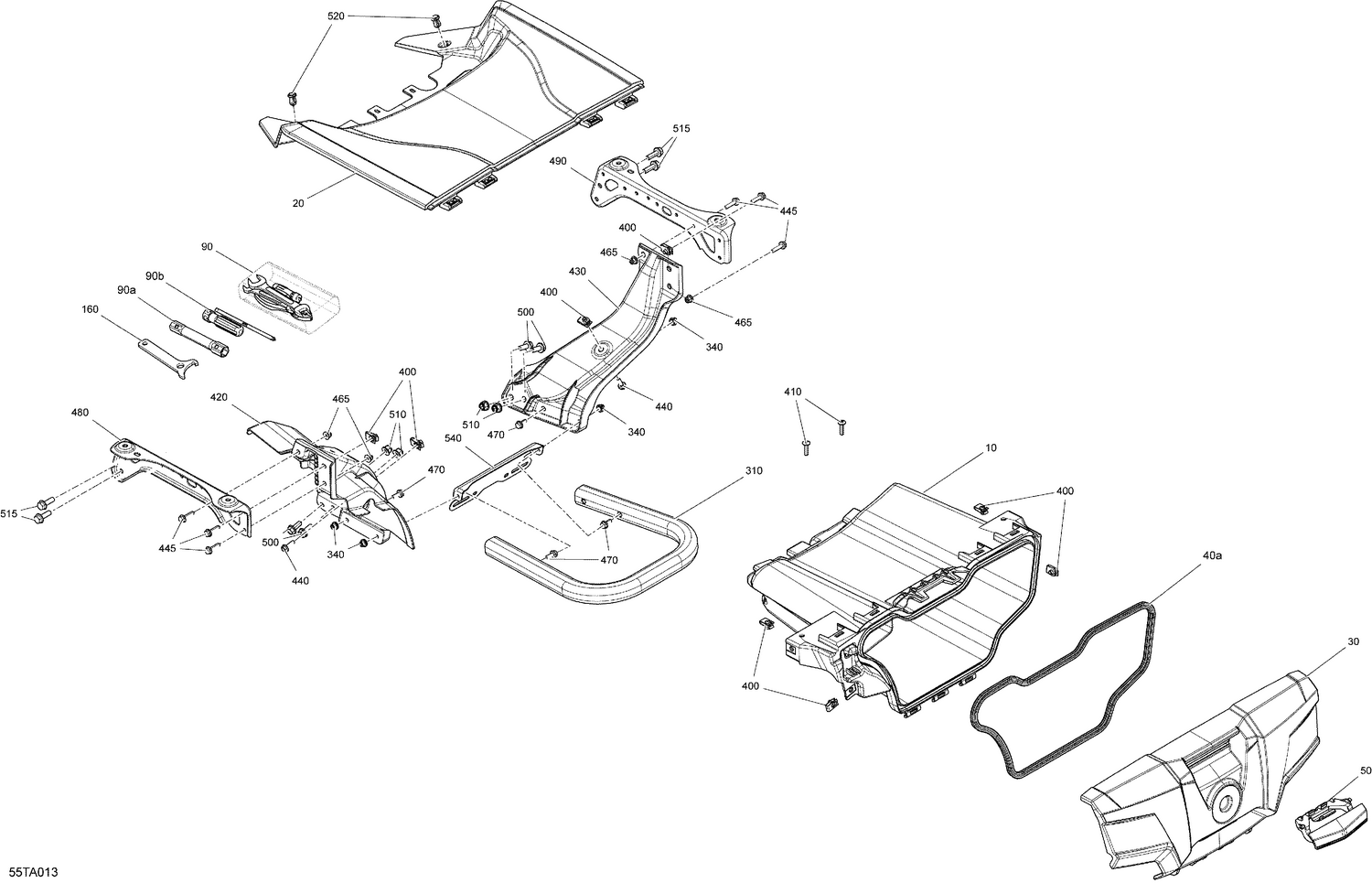

07- Body - Storage Tray
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708300674 | Rear Storage Box |
| 20 | 708301212 | Rear Storage Box Cover |
| 30 | 708300150 | Rear Panel |
| 40a | 219704369 | Was 293200163 Neoprene Seal |
| 50 | 708201250 | Handle Latch This part replaces 708200272. |
| 90a | 529000085 | Socket Wrench 14/16MM |
| 90b | 529000021 | Screw Driver |
| 160 | 529000035 | Adjustment Wrench |
| 340 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 400 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 410 | 250000807 | Torx Truss Screw M6 X 25 |
| 420 | 705006997 | LH Cargo Support |
| 430 | 705006998 | RH Cargo Support |
| 440 | 207662044 | Hex. Flange Screw M6 X 20 |
| 445 | 207662544 | Hex. Flange Screw M6 X 25 |
| 465 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 470 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 480 | 705004563 | LH Support |
| 490 | 705004564 | RH Support |
| 500 | 207682044 | Hex. Flange Screw M8 X 20 |
| 510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 515 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 520 | 293150230 | Tuflok Plastic Rivet |
