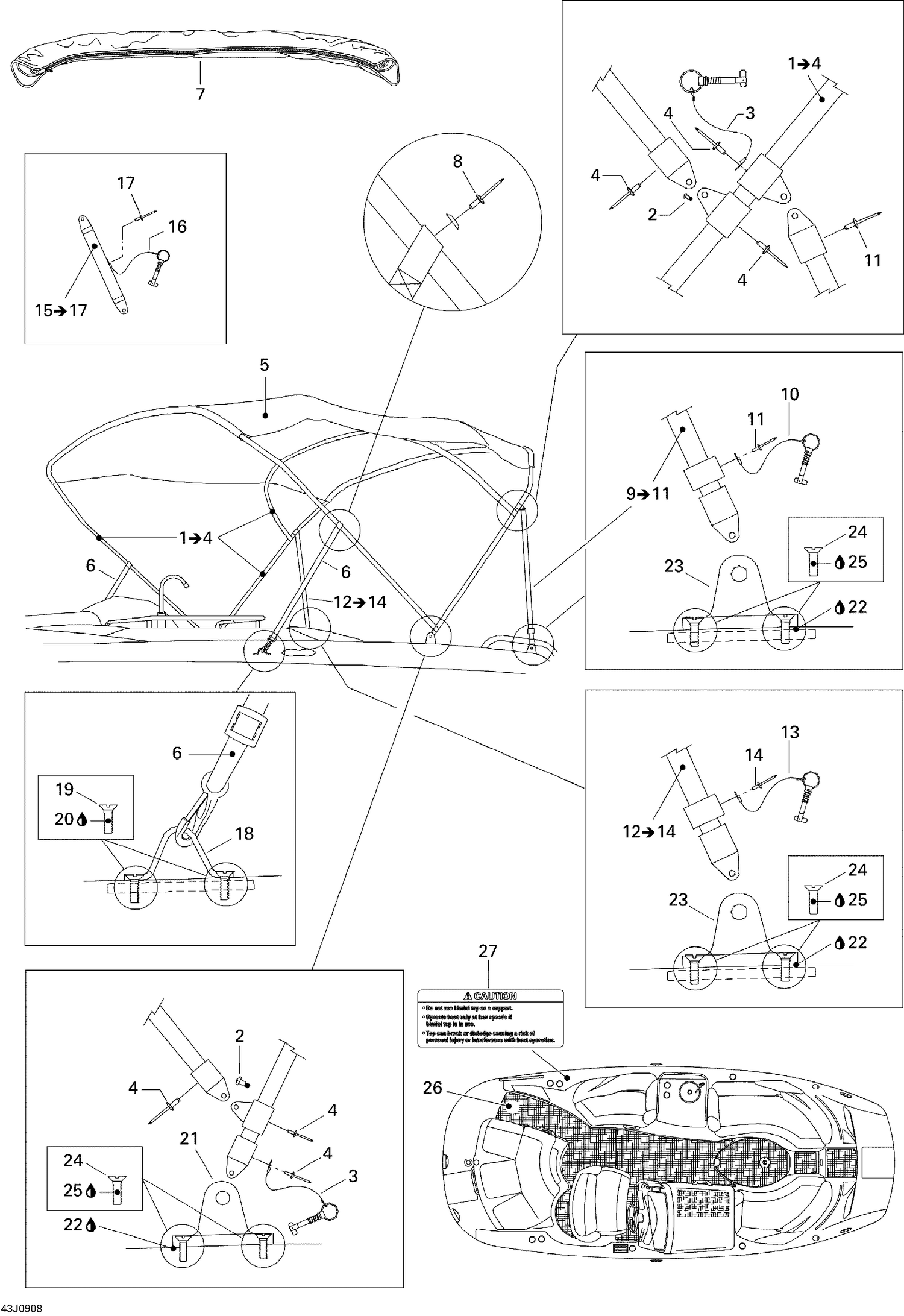

| Ref | Part Number | Description |
|---|
| 2 |
204100066 |
SCREW-PAN HD.1/4-20 SS - Call your local BRP dealership |
| 3 |
204072441 |
RETAINING CABLE ASS'Y - Call your local BRP dealership |
| 4 |
293150039 |
Pop Rivet 3/16" |
| 5 |
204950067 |
Bimini Canvas |
| 6 |
204072442 |
BIMINI STRAP ASS?Y - Call your local BRP dealership |
| 7 |
204950068 |
BIMINI COVER - Call your local BRP dealership |
| 8 |
293150039 |
Pop Rivet 3/16" |
| 10 |
204072441 |
RETAINING CABLE ASS'Y - Call your local BRP dealership |
| 11 |
293150039 |
Pop Rivet 3/16" |
| 13 |
204072441 |
RETAINING CABLE ASS'Y - Call your local BRP dealership |
| 14 |
293150039 |
Pop Rivet 3/16" |
| 16 |
204072441 |
RETAINING CABLE ASS'Y - Call your local BRP dealership |
| 17 |
293150039 |
Pop Rivet 3/16" |
| 18 |
204070234 |
Strap Tie |
| 19 |
208443060 |
Phillips Screw M4 X 30 |
| 20 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 21 |
204070910 |
BIMINI BRACKET - Call your local BRP dealership |
| 22 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 23 |
204071011 |
BIMINI BRACKET - Call your local BRP dealership |
| 24 |
208453060 |
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership |
| 25 |
293800060 |
Loctite 243, 10 ml |
| 26 |
204950096 |
Cockpit Carpet |
