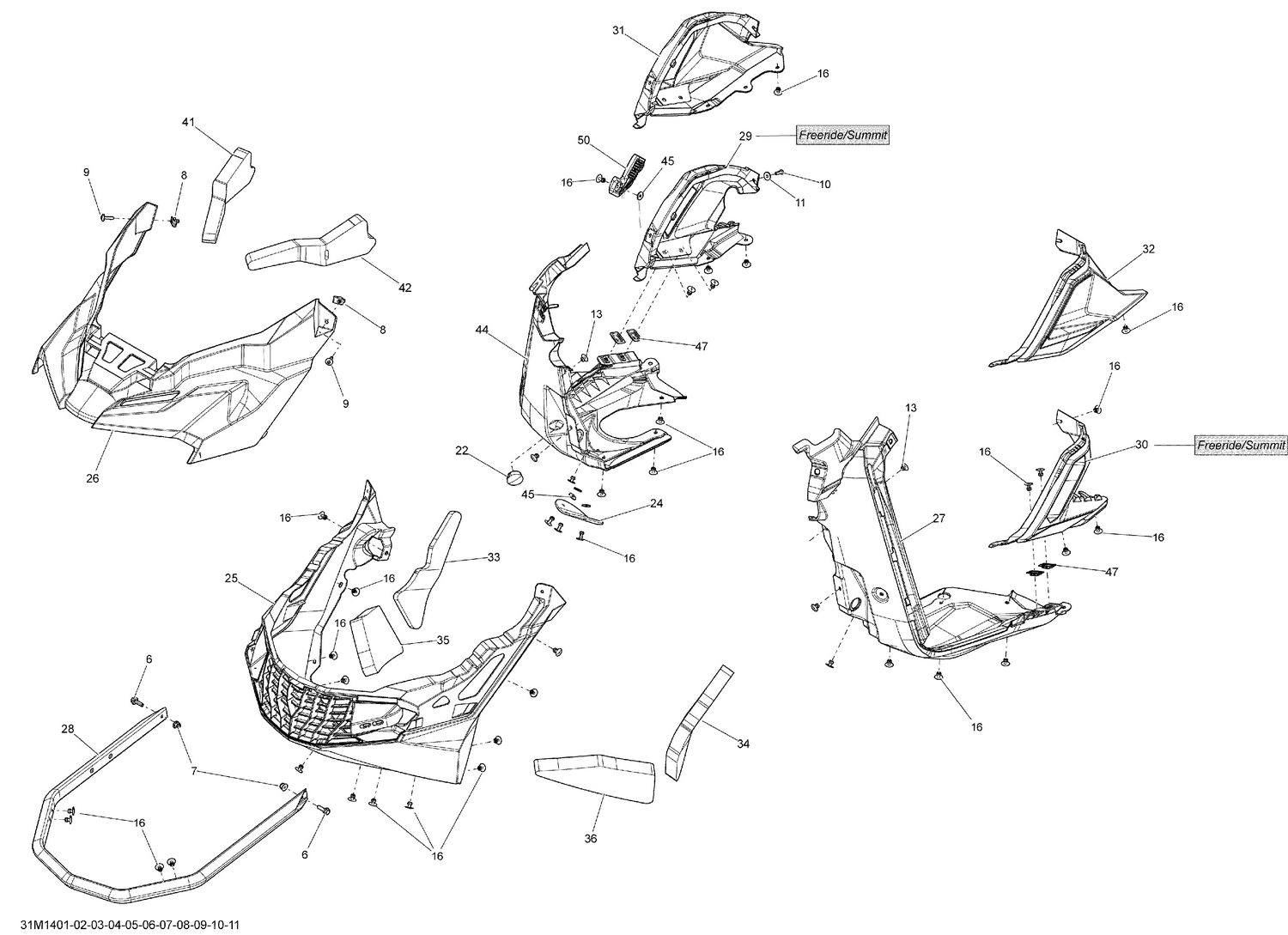

09- Bottom Pan
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 207662044 | Hex. Flange Screw M6 X 20 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 9 | 250000587 | Torx Screw M5 X 26 |
| 10 | 250000652 | Socket Screw M5 X .80 X 16 |
| 11 | 250200025 | Washer M5 |
| 13 | 293150103 | Pop Rivet 3/16" |
| 16 | 293150104 | Pop Rivet 3/16" |
| 22 | 414916600 | Black, Nylon Cap |
| 24 | 502006935 | Snow Deflector |
| 25 | 502007172 | Black Front Bottom Pan |
| 26 | 502007173 | Black Bottom Pan Cap |
| 27 | 502007175 | Black LH Bottom Pan |
| 28 | 860201167 | Black Front Bumper This part replaces 502007176. |
| 29 | XXX | Not Available As Spare Parts |
| 30 | XXX | Not Available As Spare Parts |
| 31 | 502007306 | Black - RH Side Bottom Pan Panel |
| 32 | 502007304 | Black - LH Side Bottom Pan Panel |
| 33 | 502007243 | RH Bottom Pan Upper Foam |
| 34 | 502007244 | LH Bottom Pan Upper Foam |
| 35 | 502007245 | RH Bottom Pan Lower Foam |
| 36 | 502007246 | LH Bottom Pan Lower Foam |
| 41 | 502007263 | RH Bottom Pan Cap Foam |
| 42 | 502007264 | LH Bottom Pan Cap Foam |
| 44 | 502007340 | Black RH Bottom Pan |
| 45 | 517124300 | Washer |
| 47 | 517305109 | Rivet Plate |
