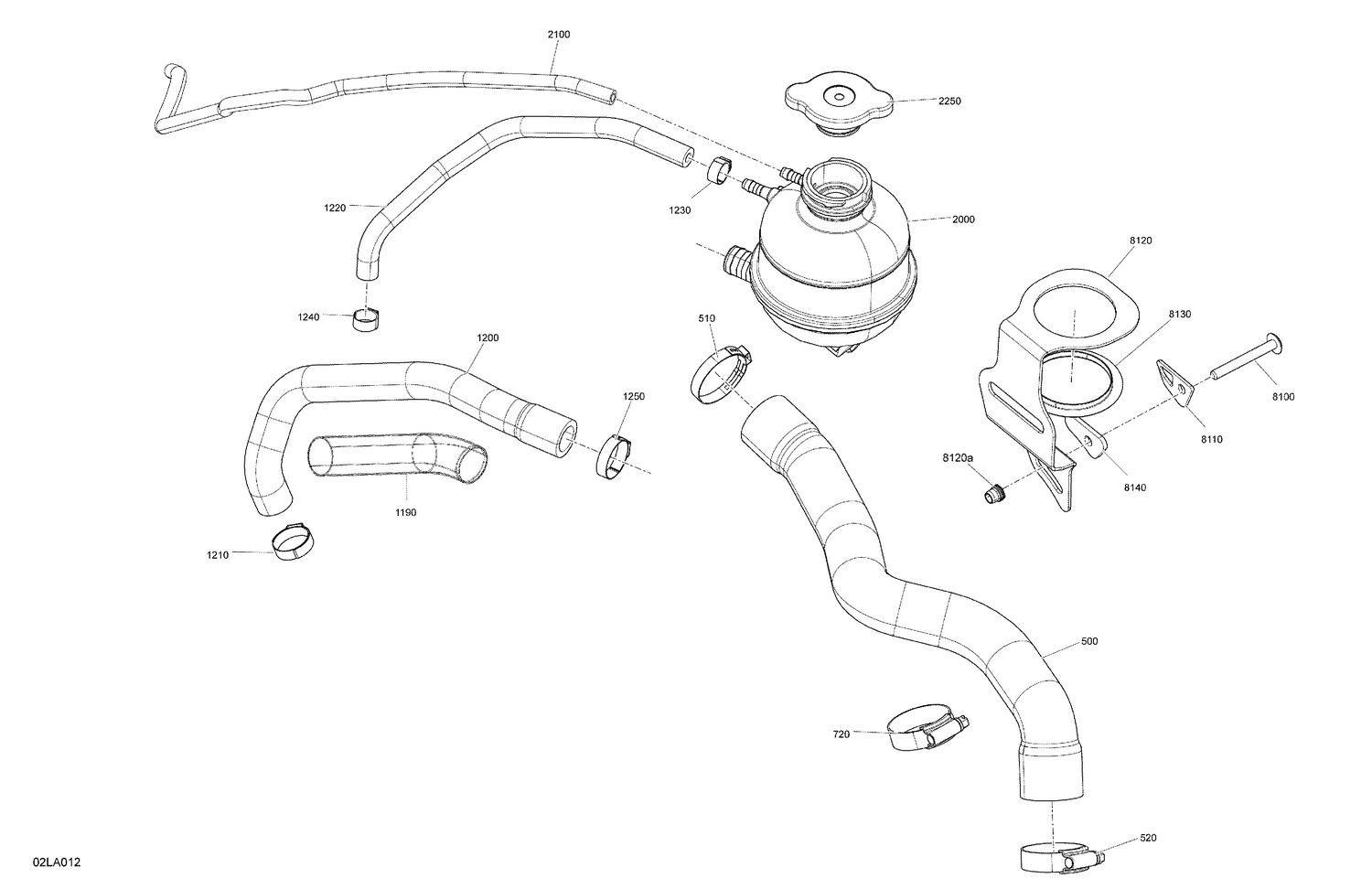

02- Engine - Cooling
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001413 | Thermostat Hose This part replaces 509001274. |
| 510 | 293650254 | Oetiker Gear Clamp |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1190 | 509000513 | Protector Tube 32 mm |
| 1200 | 509001141 | Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509000968 | Cooling Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 2000 | 861805527 | Coolant Tank Kit |
| 2100 | 276000048 | Polyurethane Hose 5.2 mm |
| 2250 | 509000180 | Radiator Pressure Cap |
| 8100 | 250000868 | Torx Truss M6 X 50 |
| 8110 | 518331542 | Coolant Tank Support |
| 8120a | 605636003 | Clinch Nut M6 Hexsert |
| 8130 | 417127116 | Swivel Abutment |
