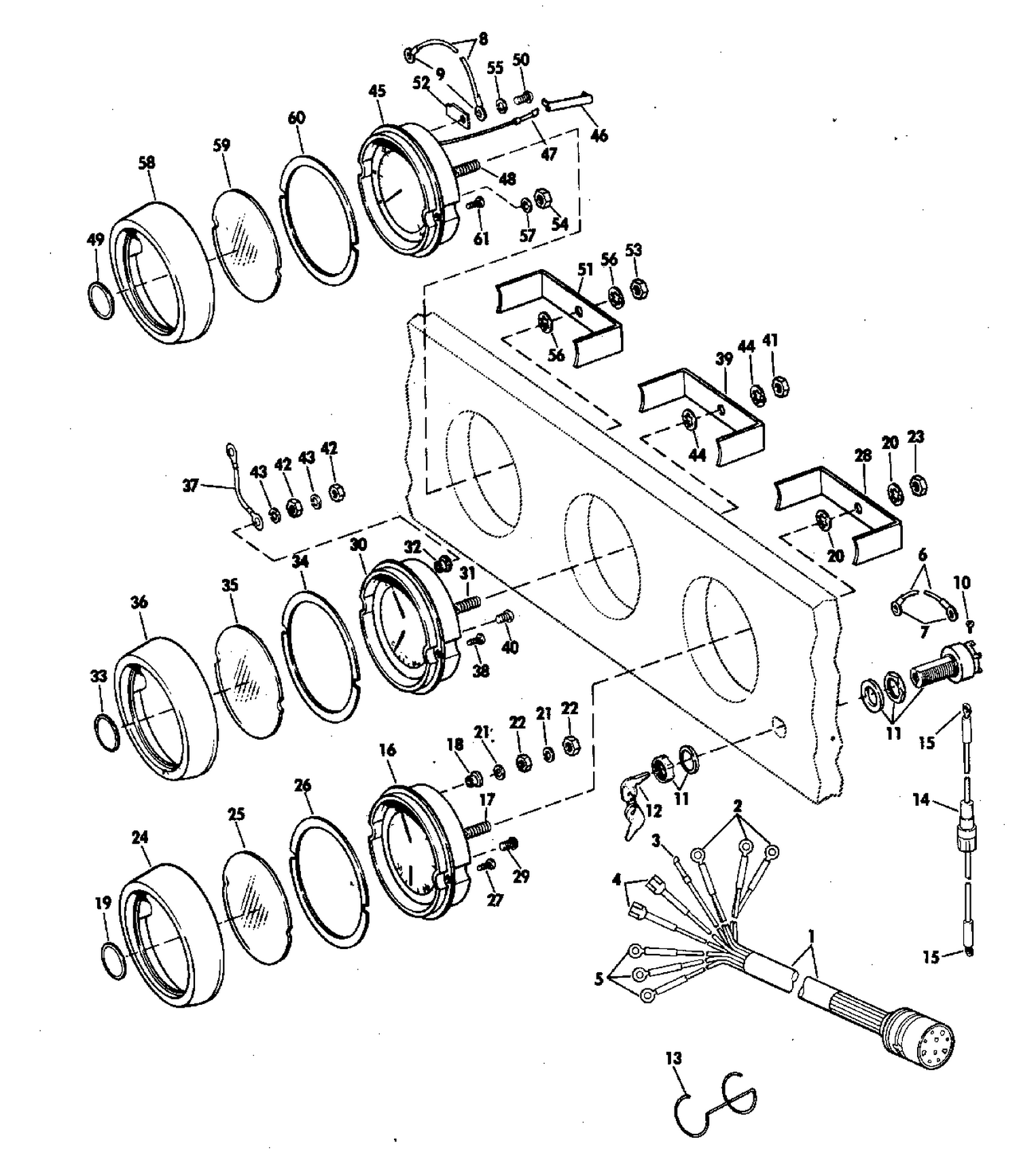

INSTRUMENT KIT ASSEMBLY-SUN SHIELDED OPTIONAL ITEM-ALL MODEL
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0172290 | CABLE ASSEMBLY |
| 6 | 0172148 | LEAD ASSEMBLY |
| 8 | 0172149 | LEAD ASSEMBLY |
| 11 | 0386545 | IGNITION SWITCH & KEY ASSY |
| 12 | KEY, | Ignition switch |
| 14 | 0378334 | FUSE HOLDER & LEAD ASSEMBLY |
| 16 | 0172074 | AMP FUEL GAUGE ASSY |
| 17 | 0122087 | STUD |
| 18 | 0121649 | INSULATOR |
| 19 | 0121720 | BITTON,Trim |
| 21 | 0304141 | LOCKWASHER |
| 24 | 0121703 | U BOLT |
| 29 | 0313870 | SCREW |
| 30 | 0172083 | INSTRUMENT ASSY, Temp |
| 31 | 0122087 | STUD |
| 32 | 0121649 | INSULATOR |
| 33 | 0121720 | BITTON,Trim |
| 36 | 0121703 | U BOLT |
| 37 | 0172058 | CONNECTOR WIRE |
| 40 | 0313870 | SCREW |
| 43 | 0304141 | LOCKWASHER |
| 45 | 0172077 | TACHOMETER ASSEMBLY |
| 48 | 0122087 | STUD |
| 49 | 0121720 | BITTON,Trim |
| 50 | 0313870 | SCREW |
| 52 | 0121708 | LOCKWASHER |
| 54 | 0302437 | NUT |
| 55 | 0304141 | LOCKWASHER |
| 58 | 0121703 | U BOLT |
