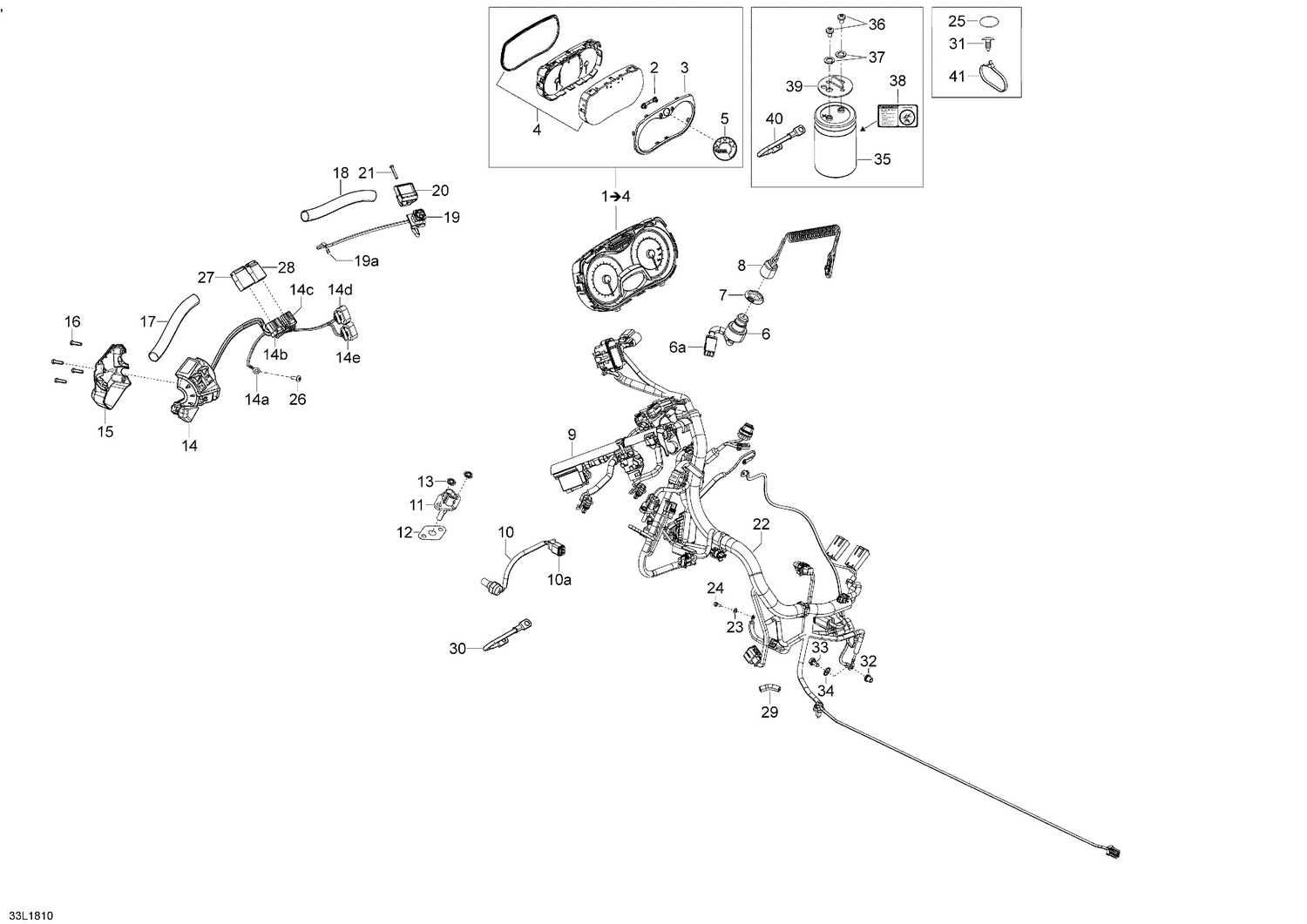

10- Electrical Rave - 600 HO E-TEC
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129348 | Hastighetsmätare ram |
| 4 | 415129349 | Class och tätning |
| 5 | 516006224 | BRP Logo, 20MM x 2MM |
| 6a | 515175232 | Male connector |
| 6a | 515175494 | Terminal housing 2 circuits |
| 8 | 515178288 | Key |
| 9 | 515177134 | Connector Plate |
| 10 | 420664509 | Temperature Senor This part replaces 515177813. |
| 10a | 278000632 | Female connector |
| 10a | 278001661 | FEMALE TERMINAL - Call your local BRP dealership |
| 10a | 293000052 | Sealing Cap |
| 10a | 515175670 | Female terminal housing (2-circuits) |
| 10a | 515175675 | Female lock (2 circuits) |
| 11 | 515176366 | Air Temperature Sensor |
| 12 | 508000769 | Seal ring |
| 13 | 389804300 | Push Nut |
| 14 | 515178305 | LH Switch Housing |
| 14a | 515175504 | Terminal Open Barrel |
| 14b | 515175231 | Female Terminal |
| 14b | 515175543 | Female terminal housing (6 circuits) |
| 14c | 515175231 | Female Terminal |
| 14c | 515175845 | Female Terminal Housing, 4 Circuits |
| 14d | 710001930 | Female Housing, 12 Circuits |
| 14e | 710001928 | Female Housing, 8 Circuits |
| 15 | 515177149 | LH Switch Housing Plate |
| 16 | 250000671 | Torx Screw |
| 17 | 415129879 | Corrugated Tube |
| 18 | 415129879 | Corrugated Tube |
| 19 | 515177362 | Emergency Stop Switch |
| 20 | 515177310 | Emergency Stop Switch Support |
| 21 | 250000263 | Torx Screw #8-18 |
| 22 | 515177984 | Main Harness 600HO E-TEC |
| 23 | 234141601 | Lock Washer 4 mm |
| 24 | 250000741 | Screw-Torx Button Head M4 X 8 |
| 25 | 518325560 | Adhesive Patch |
| 26 | 250000690 | Pan Screw Forming, 7500C |
| 27 | 515175232 | Male connector |
| 27 | 515175662 | Male Terminal Housing, 8 Circuits |
| 28 | 515175232 | Male connector |
| 28 | 515175846 | Male Terminal Housing, 8 Circuits |
| 29 | 520001525 | Trim |
| 30 | 515177289 | Engine ground wire |
| 31 | 414644300 | Black, Dart |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 33 | 207662044 | Hex. Flange Screw M6 X 20 |
| 34 | 250200041 | Lock Washer Serrated M6 |
| 35 | 515177272 | Capacitor |
| 36 | 250000462 | Socket Head Screw M10 X 32 |
| 37 | 250200026 | Lock Washer |
| 38 | 516006206 | Capacitor Decal |
| 39 | 515177193 | Cap |
| 40 | 515178052 | Ground Cable |
| 41 | 293750001 | Tie-Rap 94 mm |
| 41 | 293750002 | Tie-Rap 142 mm |
| 41 | 293750008 | Tie-Rap 368 mm |
| 41 | 414115200 | Tie-Rap 180 mm |
