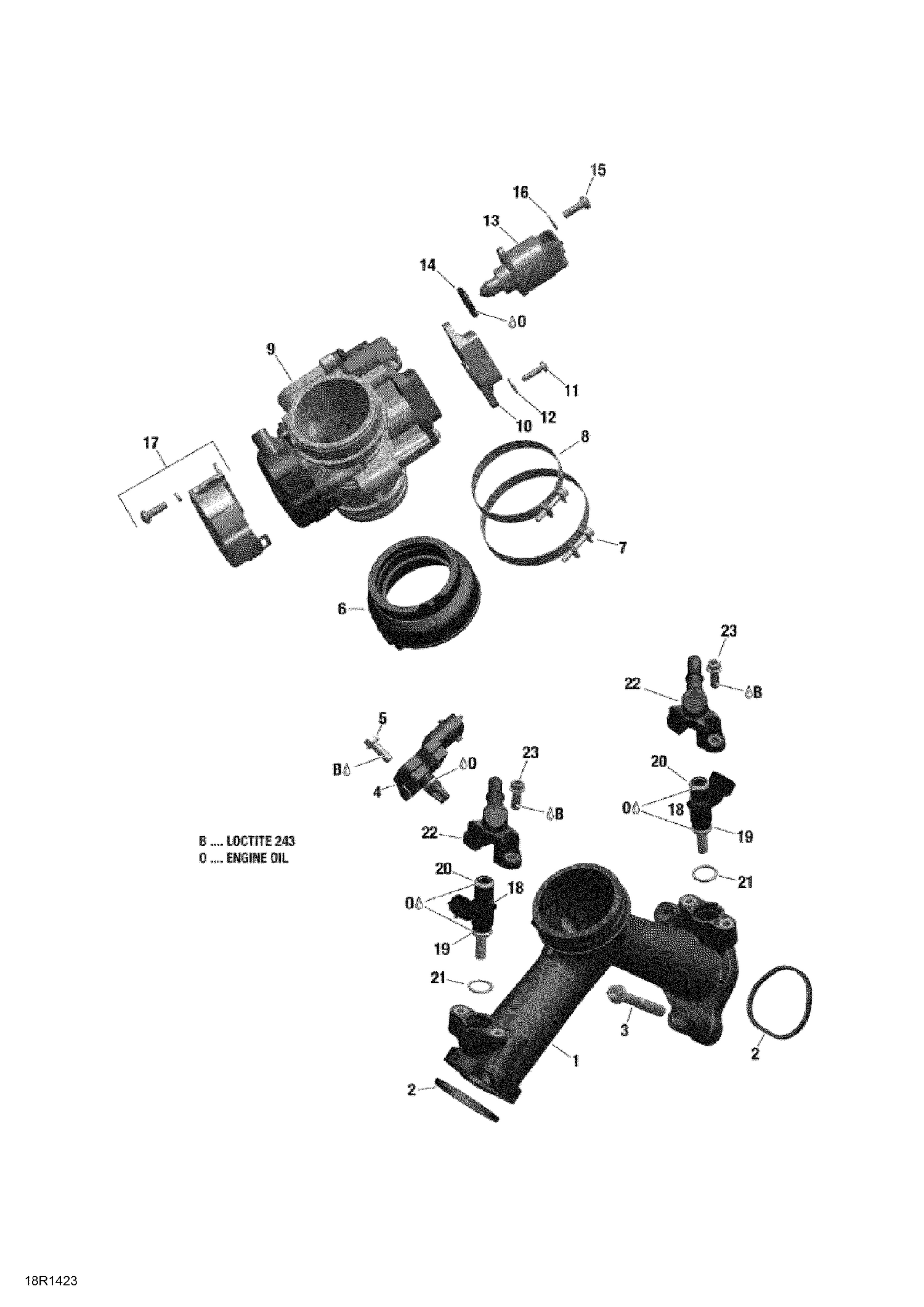

02- Air Intake Manifold And Throttle Body _18R1423
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667520 | Air Intake Manifold |
| 2 | 420630642 | Gasket |
| 3 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 4 | 707000995 | Pressure And Temperature Sensor |
| 5 | 420641048 | Torx Flange Screw M6 X 16 This part replaces 420440167. |
| 6 | 420267045 | Intake Neck |
| 7 | 420251209 | Clamp |
| 8 | 420251480 | Clamp |
| 9 | 420685326 | Throttle Body Ass'y This part replaces 420685322. |
| 10 | Not | Available As Spare Part - Potentiometer |
| 11 | Not | Available As Spare Part - Oval Head Screw |
| 12 | Not | Available As Spare Part - Washer |
| 13 | 420665941 | Idle Air Control Valve This part replaces 420665940. |
| 14 | 420631780 | O-Ring |
| 15 | 420440911 | Binding Head Screw M5 X 16 |
| 16 | 420845710 | Snap Ring |
| 17 | 420281540 | Cover Kit |
| 19 | 420431890 | O-Ring |
| 20 | 420631220 | O-Ring |
| 21 | 420631296 | O-Ring This part replaces 420631295. |
| 22 | 420874901 | Fuel Rail |
