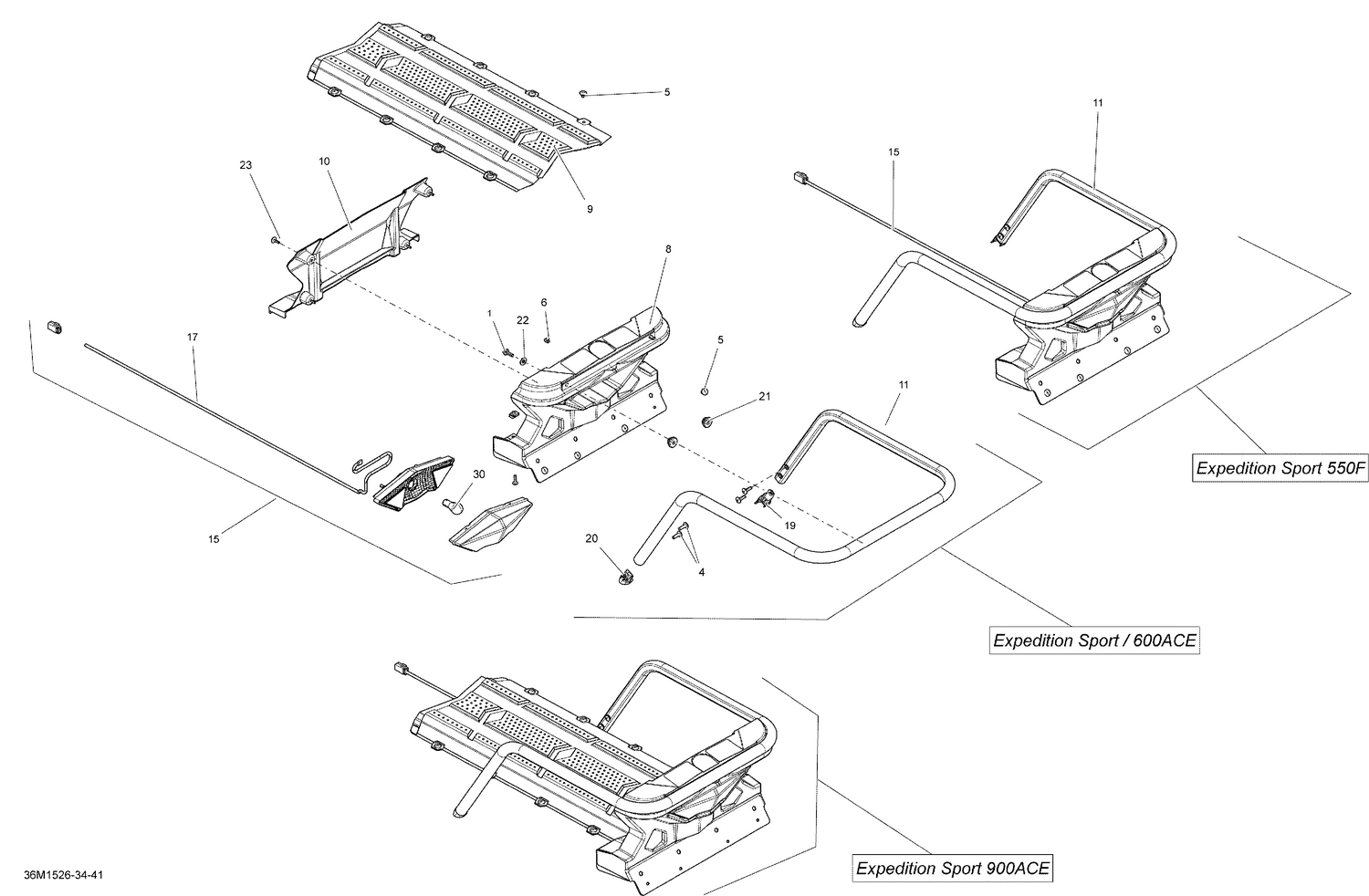

09- Luggage Rack _36M1541
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 3 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 4 | 250000786 | Torx Screw M6 X 20, Scotch Grip This part replaces 250000420. |
| 5 | 293150103 | Pop Rivet 3/16" |
| 6 | 293750002 | Tie Wrap 142 mm |
| 8 | 511000625 | Rear Light Support |
| 9 | 511000681 | Radiator Cover, 154'' |
| 10 | 511000701 | Rear Cover Support |
| 11 | 511000705 | Luggage Rack |
| 15 | 520000679 | Rear Light Ass'y |
| 17 | 520000680 | WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 19 | 520000985 | RH Cap |
| 20 | 520000986 | LH Cap |
| 21 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 22 | 234062410 | Flat Washer 6 mm |
| 23 | 250000725 | Screw M4 X 16 |
