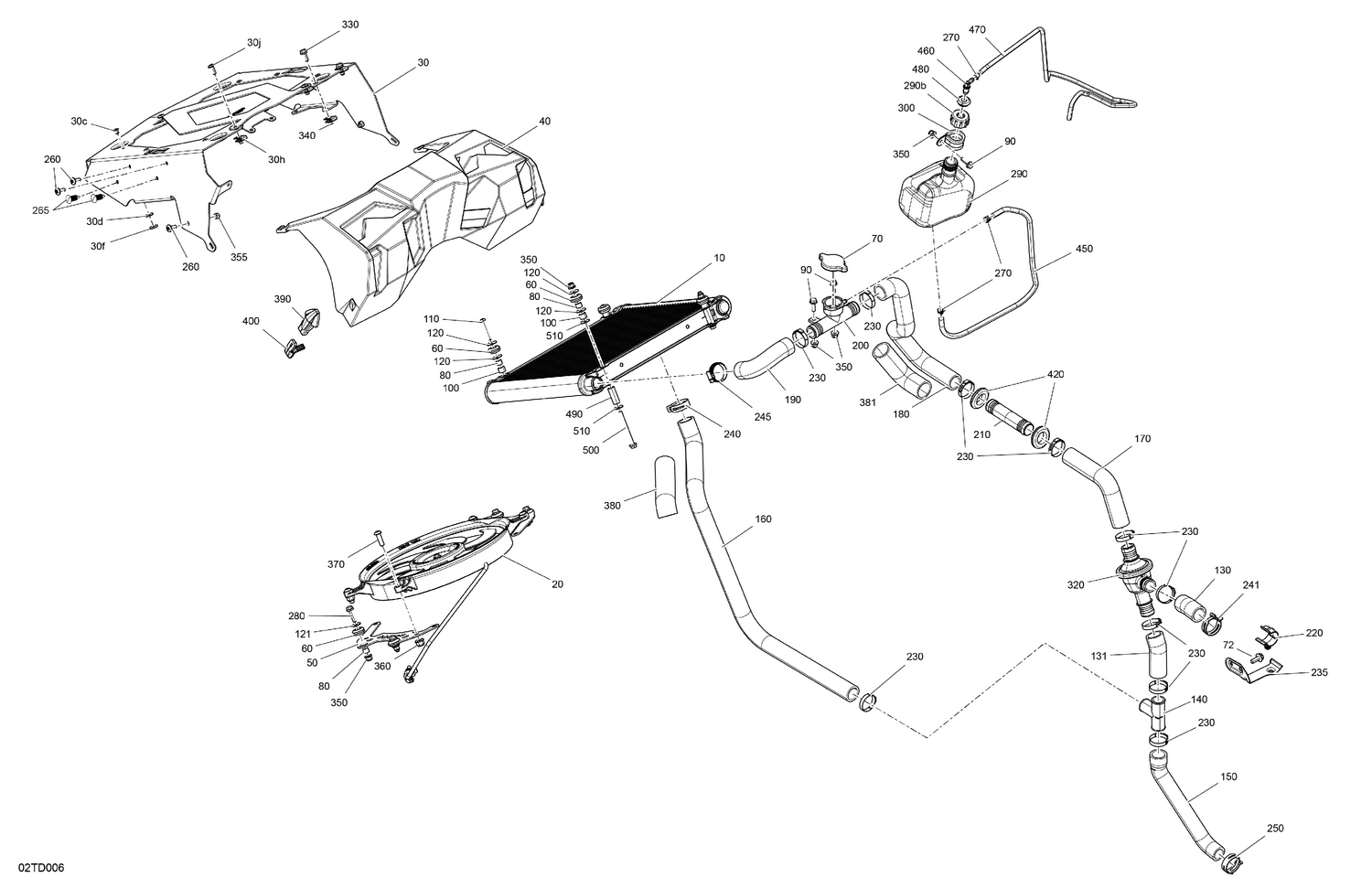

02- Engine - Cooling
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200286 | Radiator |
| 20 | 709200565 | Fan Ass'y |
| 30c | 293150102 | Rivet 3/16" |
| 30d | 517124300 | Washer |
| 30f | 250200024 | Rubber Washer 5 mm |
| 30h | 250100198 | Panel Nut M6 X 1.0 |
| 30j | 250000717 | Torx Head Screw M6 X 16 |
| 40 | 703100399 | Protection Cover Kit |
| 50 | 709201349 | Aupport_Fan Ecoat |
| 60 | 293720062 | Grommet |
| 70 | 709200207 | Radiator Pressure Cap |
| 72 | 210261640 | Hex. Flange Screw M6 X 16 |
| 80 | 707000058 | Spacer |
| 90 | 207662034 | Hex. Flange Screw M6 X 20 |
| 100 | 708001129 | Bushing |
| 110 | 235563054 | Torx Screw M6 X 30 |
| 120 | 250200040 | Flat Washer |
| 121 | 234062600 | Flat Washer M6, Stainless |
| 130 | 709200630 | Cylinder Hose |
| 131 | 709200629 | Cylinder Hose |
| 140 | 509001313 | T-Fitting |
| 150 | 709200787 | Outlet Hose |
| 160 | 709200801 | Outlet Hose |
| 170 | 709200788 | Outlet Hose |
| 180 | 709200892 | Outlet Hose |
| 190 | 709200891 | Hose |
| 200 | 709200422 | Filler Neck |
| 210 | 709200448 | Nipple Tube 1" |
| 220 | 275500526 | Retainer |
| 230 | 509000162 | Gear Clamp |
| 235 | 709200641 | Hose Support |
| 240 | 293650166 | Norma Spring Clamp |
| 241 | 293650166 | Norma Spring Clamp |
| 245 | 293650098 | Norma Gear Clamp |
| 250 | 293650166 | Norma Spring Clamp |
| 260 | 250000717 | Torx Head Screw M6 X 16 |
| 265 | 293730062 | Dart |
| 270 | 414554800 | Spring Clamp |
| 280 | 207662544 | Hex. Flange Screw M6 X 25 |
| 290b | 709200586 | Cap |
| 300 | 709200036 | Hose Anchor |
| 320 | 709200406 | Thermostat |
| 330 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 340 | 250100198 | Panel Nut M6 X 1.0 |
| 350 | 233261434 | Flange Elastic Nut M6 |
| 355 | 232561434 | Elastic Stop Nut M6 |
| 360 | 233281414 | Hex. Flange Elastic Nut M8 |
| 370 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 380 | 219704428 | Tubing 35 MM 1000MM Long |
| 381 | 219704428 | Tubing 35 MM 1000MM Long |
| 390 | 517304075 | End Piece Latch |
| 400 | 517303981 | Panel Latch |
| 420 | 293720096 | Grommet |
| 450 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 460 | 414580700 | Male Connector |
| 470 | 219704389 | Polyurethane Hose 4000MM Long |
| 480 | 705003264 | Grommet |
| 490 | 705202499 | Bushing |
| 500 | 207667044 | Hex. Flange Screw M6 X 70 |
