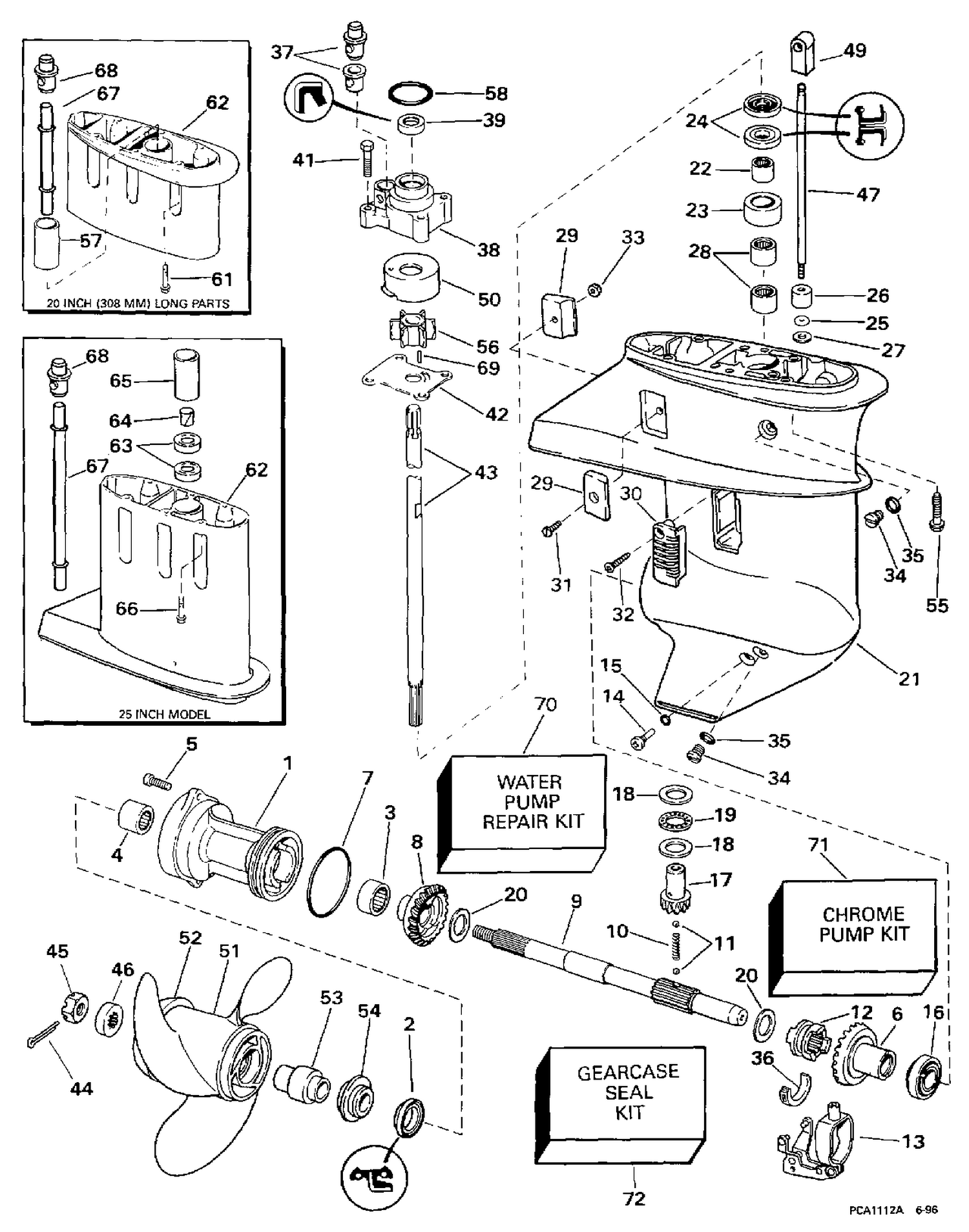

| Ref | Part Number | Description |
|---|
| 21 |
0438617 |
GEARCASE Assy, This part replaces 0435393. |
| 25 |
0301877 |
O RING SHIFT ROD |
| 38 |
0435390 |
IMPELLER HSG. & SEAL ASSY. |
| 42 |
0318995 |
PLATE, Impeller housing |
| 43 |
0337396 |
DRIVESHAFT, Standard |
| 43 |
0337398 |
DRIVESHAFT |
| 47 |
0337401 |
SHIFT ROD, Standard |
| 47 |
0337402 |
SHIFT ROD |
| 50 |
0323535 |
COUPELLE, carter de turbine |
| 50 |
0324097 |
CUP, Impeller housing |
| 51 |
0176266 |
RH alum. 10 x 9 |
| 51 |
0778773 |
RH Alum. 9 x11 This part replaces 0174817. |
| 54 |
0334590 |
THRUST BUSHING, Prop. |
| 56 |
0386084 |
IMPELLER |
| 62 |
0395894 |
EXTENSION, Gearcase |
| 67 |
0337382 |
WATER TUBE |
| 69 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 70 |
0394711 |
CHROME PUMP KIT This part replaces 0391698. |
| 71 |
0394711 |
CHROME PUMP KIT This part replaces 0389114. |
| 0436981 |
0436981 |
EXTENSION KIT ASSY. |
| 0438617 |
0438617 |
GEARCASE Assy, |
