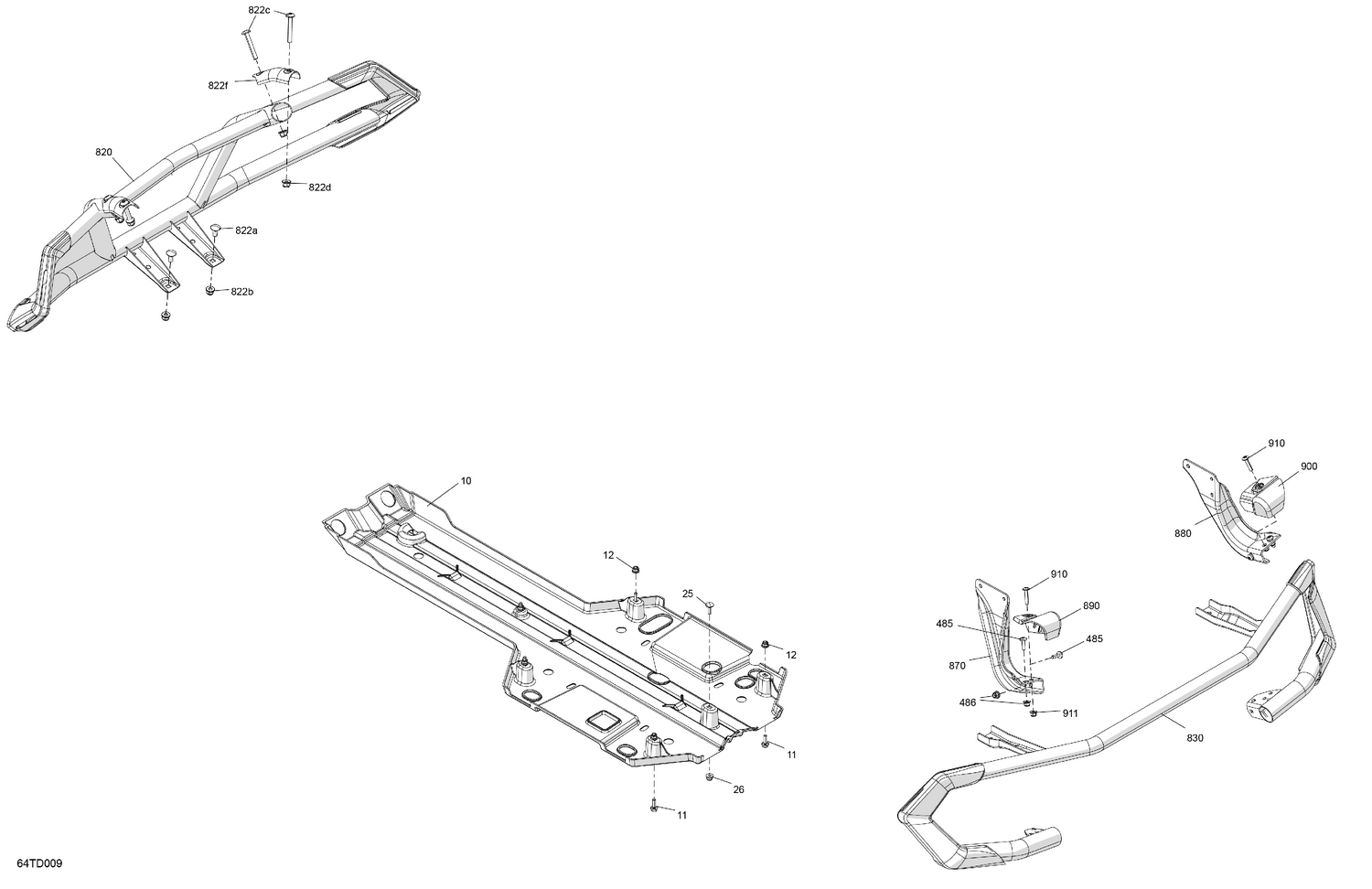

07- Body - Skid Plate and Bumper
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| XXX | Not | Available As Spare Parts XXX |
| 10 | 715002374 | Protective Plate Kit |
| 11 | 207662054 | Hex. Flange Screw M6 X 20 |
| 12 | 233261434 | Flange Elastic Nut M6 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 26 | 233261434 | Flange Elastic Nut M6 |
| 485 | 207762044 | Carriage Bolt M6 X 20 |
| 486 | 233261434 | Flange Elastic Nut M6 |
| 820 | 705018078 | Legion Red, Front Bumper |
| 822a | 207782044 | Carriage Bolt, M8 X 20 |
| 822b | 233281414 | Hex. Flange Elastic Nut M8 |
| 822c | 250000535 | Torx Screw M8 X 55 |
| 822d | 233281464 | Elastic Flange Nut M8 |
| 822f | 705018071 | Legion Red, Upper Mounting Clamp |
| 830 | 705018079 | Legion Red, Rear Bumper |
| 870 | 705008164 | LH Rear Bracket |
| 880 | 705008165 | RH Rear Bracket |
| 890 | 705017676 | LH Rear Bumper Trim |
| 900 | 705017677 | RH Rear Bumper Trim |
| 910 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 911 | 233261434 | Flange Elastic Nut M6 |
