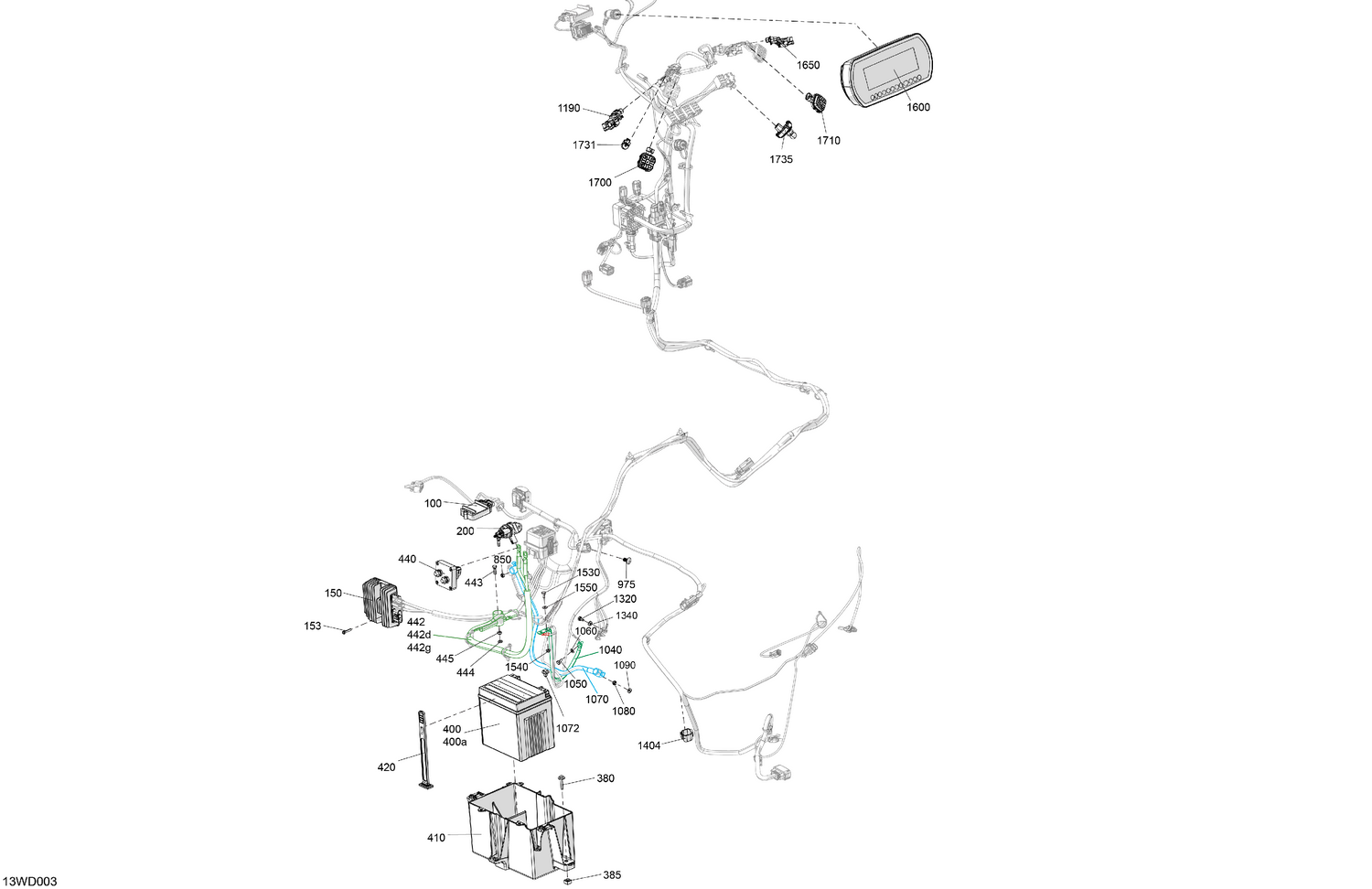

02- MECHANICS - Electric - Lower Section
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 204471484 | Gateway Can Module |
| 150 | 710005842 | Voltage Regulator |
| 153 | 250000680 | Hex. Flange Screw K50 X 25 |
| 200 | 278003012 | Starter Relay |
| 380 | 250000969 | Hex Screw SEMS M6X35, SS |
| 385 | 269502544 | Nut Housing M6 |
| 400a | 250000282 | Battery Bolt Kit |
| 410 | 278004264 | Battery Support |
| 420 | 269502417 | Strap |
| 440 | 278004300 | Switch |
| 442d | 515177246 | Shrink Tubing, 6 mm |
| 442g | 710001829 | Protector Cap |
| 443 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 444 | 234061600 | Stainless Flat Washer M6 |
| 445 | 232561200 | Brass Elastic Stop Nut M6 |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 975 | 293730010 | Black Dart |
| 1040 | 278004389 | Negative Cable |
| 1050 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1060 | 234061600 | Stainless Flat Washer M6 |
| 1070 | 278003369 | Starter Cable |
| 1072 | 710008294 | Mount Dart |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1190 | 278002284 | LH Throttle Sensor |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1404 | 710004904 | Connector Plug |
| 1530 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1540 | 232561200 | Brass Elastic Stop Nut M6 |
| 1550 | 234061600 | Stainless Flat Washer M6 |
| 1600 | 278003430 | Multifunction Mono Compact Gauge |
| 1650 | 278002283 | Throttle Position Sensor |
| 1700 | 278003821 | Switch |
| 1710 | 278003474 | RH Switch Keypad |
| 1731 | 296000440 | Start/Stop Switch This part replaces 296000440. |
