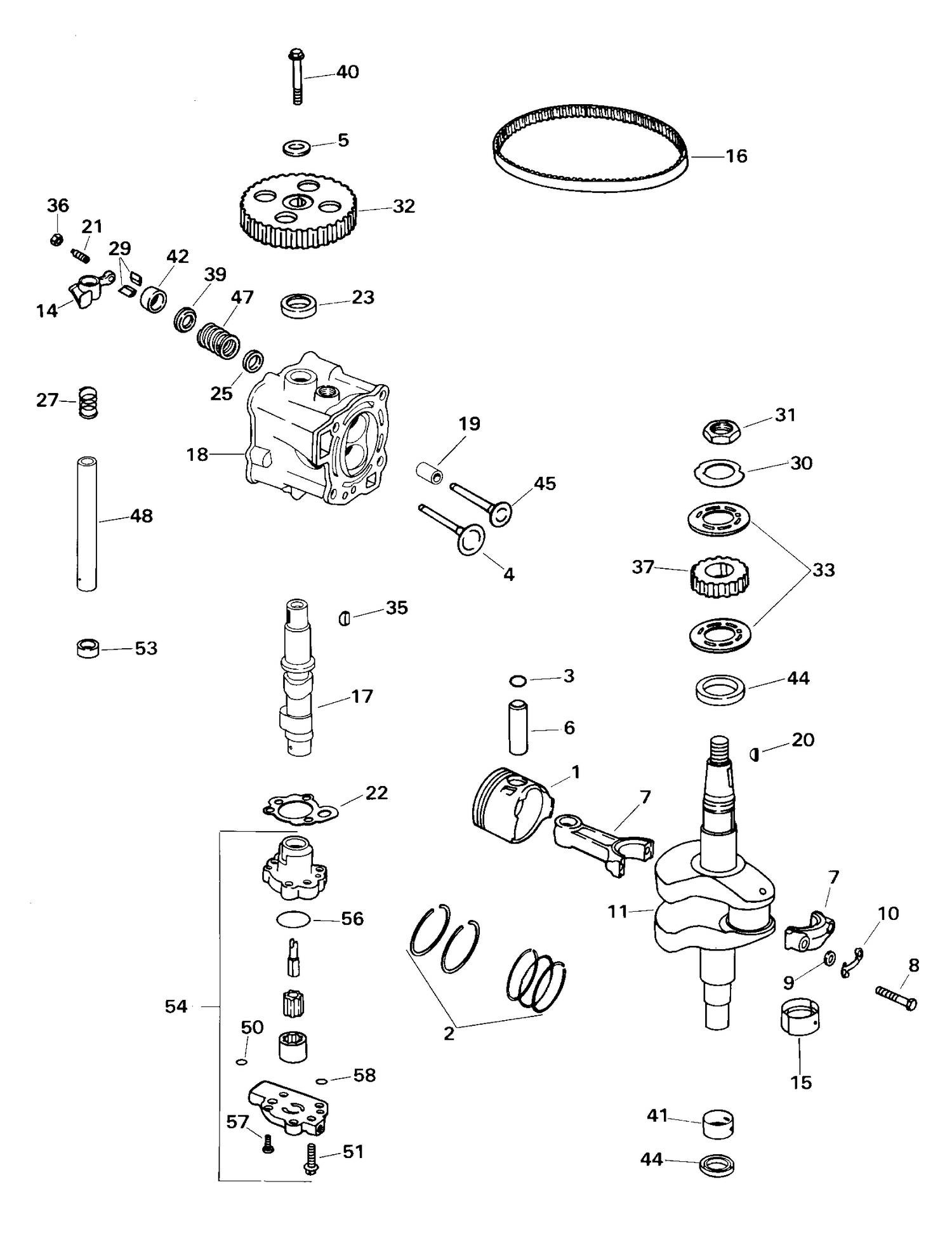

| Ref | Part Number | Description |
|---|
| 1 |
0446051 |
PISTON ASSY., Standard |
| 1 |
0449510 |
PISTON ASSY., 0.5mm O.S. |
| 2 |
0449500 |
RING SET, Standard |
| 2 |
0449509 |
RING SET, 0.5mm O.S. |
| 3 |
0446055 |
RETAINING RING |
| 4 |
0446024 |
VALVE, Intake |
| 5 |
0446184 |
WASHER, Screw, camshaft pulley |
| 6 |
0446054 |
WRIST PIN |
| 7 |
0440163 |
CONNECTING ROD ASSY. |
| 9 |
0445105 |
WASHER |
| 10 |
0441047 |
TAB, Locking |
| 11 |
0440162 |
CRANKSHAFT |
| 14 |
0446025 |
ARM ASSY., Rocker |
| 15 |
0441106 |
BEARING ASSY., Main |
| 16 |
0441093 |
BELT, Drive |
| 17 |
0440160 |
CAMSHAFT ASSY. |
| 18 |
0440159 |
CYLINDER HEAD & SEAT ASSY. |
| 20 |
0446466 |
KEY, Crankshaft |
| 21 |
0446017 |
SCREW, Cylinder valve adjustment |
| 22 |
0441109 |
GASKET, Oil pump to cylinder head |
| 23 |
0446033 |
SEAL, Oil, camshaft |
| 25 |
0446022 |
SEAT, Valve spring |
| 27 |
0446029 |
SPRING, Shaft, rocker arm |
| 29 |
0446020 |
KEEPER, Valve |
| 30 |
0441102 |
PLATE, Lock, camshaft pulley |
| 31 |
0441072 |
NUT, Pulley to crankshaft |
| 32 |
0446093 |
PULLEY, Cam |
| 33 |
0441101 |
GUIDE, Belt, pulley |
| 35 |
0446337 |
KEY, Pulley to camshaft |
| 36 |
0446018 |
NUT, Adjustment screw, rocker arm |
| 37 |
0441091 |
PULLEY, Belt drive, crankshaft |
| 39 |
0446019 |
RETAINER, Valve spring |
| 40 |
0446099 |
CLAVETTE, poulie vers arbre à cames |
| 42 |
0337237 |
SEAL, Valve |
| 44 |
0441044 |
SEAL, Crankshaft, upper & lower |
| 45 |
0446023 |
VALVE, Exhaust |
| 47 |
0446021 |
SPRING, Valve |
| 48 |
0440168 |
SHAFT, Rocker arm |
| 53 |
0446028 |
SPACER, Rocker arm |
| 54 |
0440161 |
PUMP ASSY., Oil |
