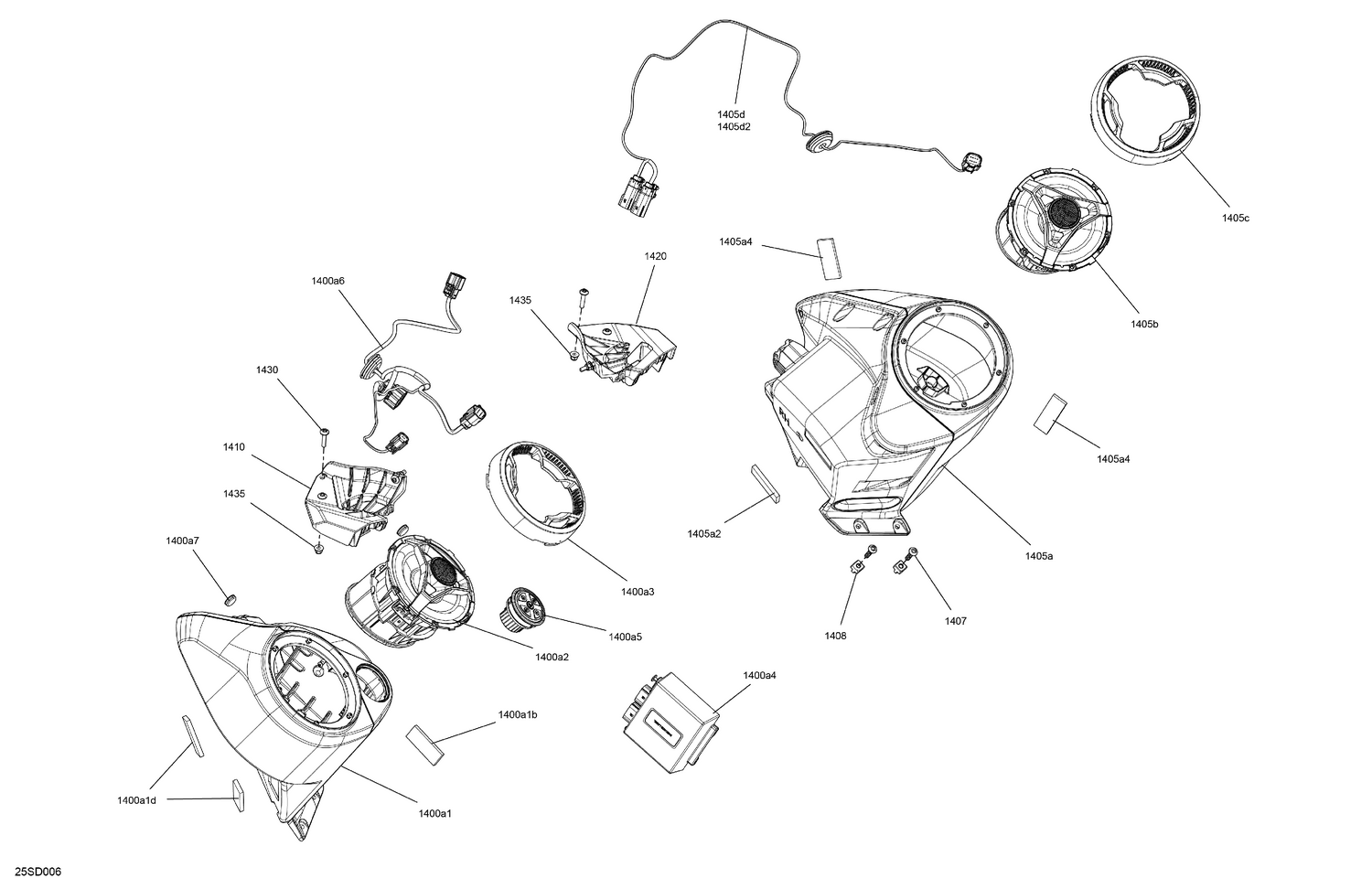

08- Electric - Audio System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1400a1b | 278003860 | Stopper |
| 1400a1d | 278003860 | Stopper |
| 1400a2 | 278003463 | Speaker |
| 1400a3 | 278003466 | Speaker Grille |
| 1400a4 | 278003464 | Amplifier |
| 1400a5 | 278003465 | Audio Control |
| 1400a6 | 278003758 | Amplifier & LH Speaker Harness |
| 1400a7 | 277000203 | Black, Cap |
| 1405a2 | 278003860 | Stopper |
| 1405a4 | 278003860 | Stopper |
| 1405b | 278003463 | Speaker |
| 1405c | 278003466 | Speaker Grille |
| 1405d2 | 278003866 | Housing 6 Circuits |
| 1407 | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 |
| 1408 | 291003793 | Insert |
| 1410 | 278003766 | LH Bracket |
| 1420 | 278003768 | RH Bracket |
| 1430 | 250000924 | Truss Cone Torx Screw M6 X 30 |
