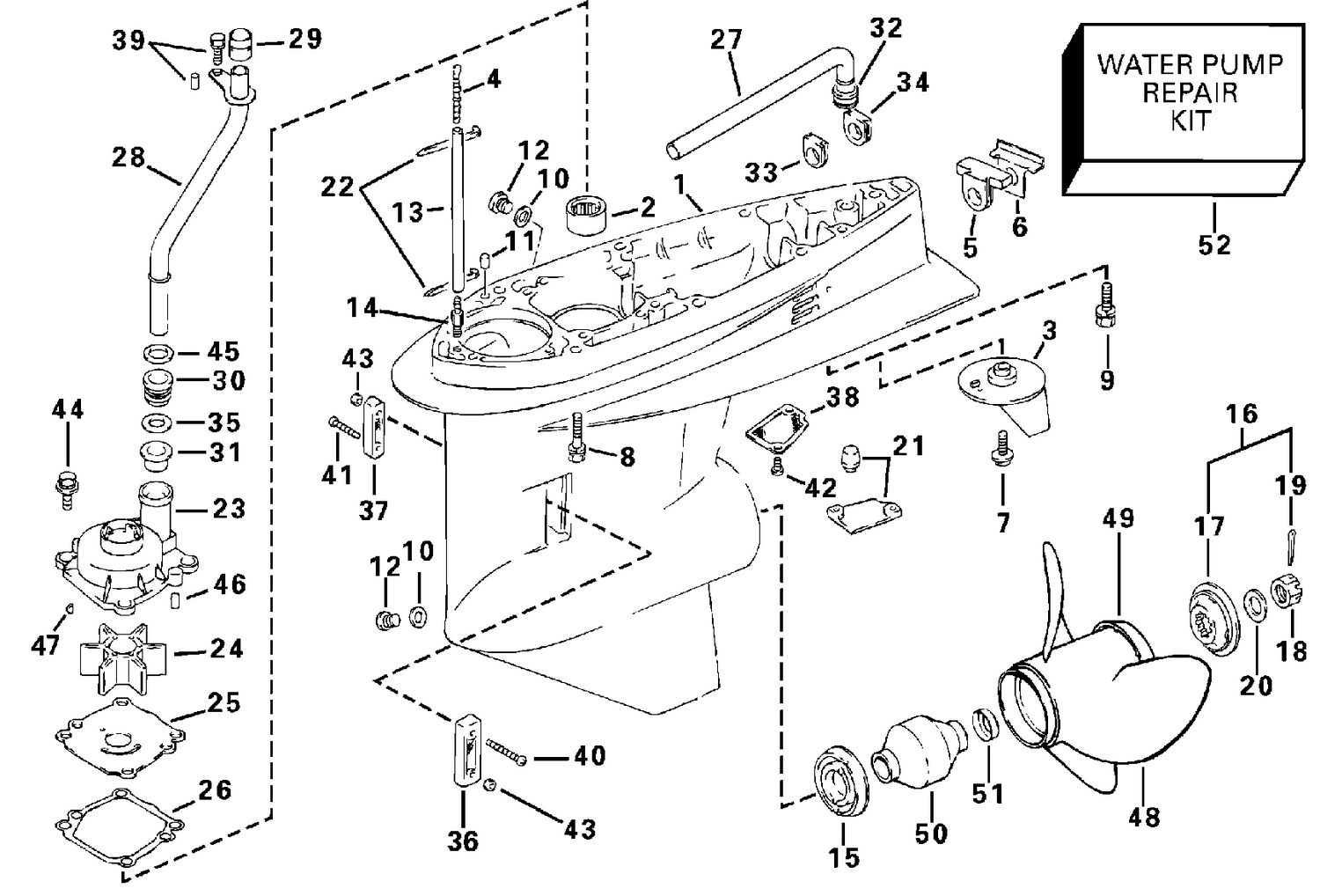

GEARCASE
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 5034788 | BOLT This part replaces 5030400. |
| 9 | 5030401 | BOLT |
| 10 | 5030071 | GASKET |
| 15 | 5030924 | THRUST BUSHING, Propeller |
| 16 | 5030976 | PROPELLER NUT ASSY. |
| 23 | 5030722 | CASE, Water pump |
| 28 | 5030726 | TUBE, Water |
| 29 | 5030727 | BUSHING, Water tube upper |
| 30 | 5030728 | BUSHING |
| 31 | 5030729 | BUSHING |
| 35 | 5030735 | SPACER, Water tube |
| 39 | 5030038 | BOLT |
| 39 | 5030509 | PIN |
| 44 | 5030398 | BOLT |
| 45 | 5030461 | WASHER |
| 46 | 5030508 | PIN |
| 48 | PROPELLER | Ref: 49 0335393 *CONVERGING RING 0335393 |
