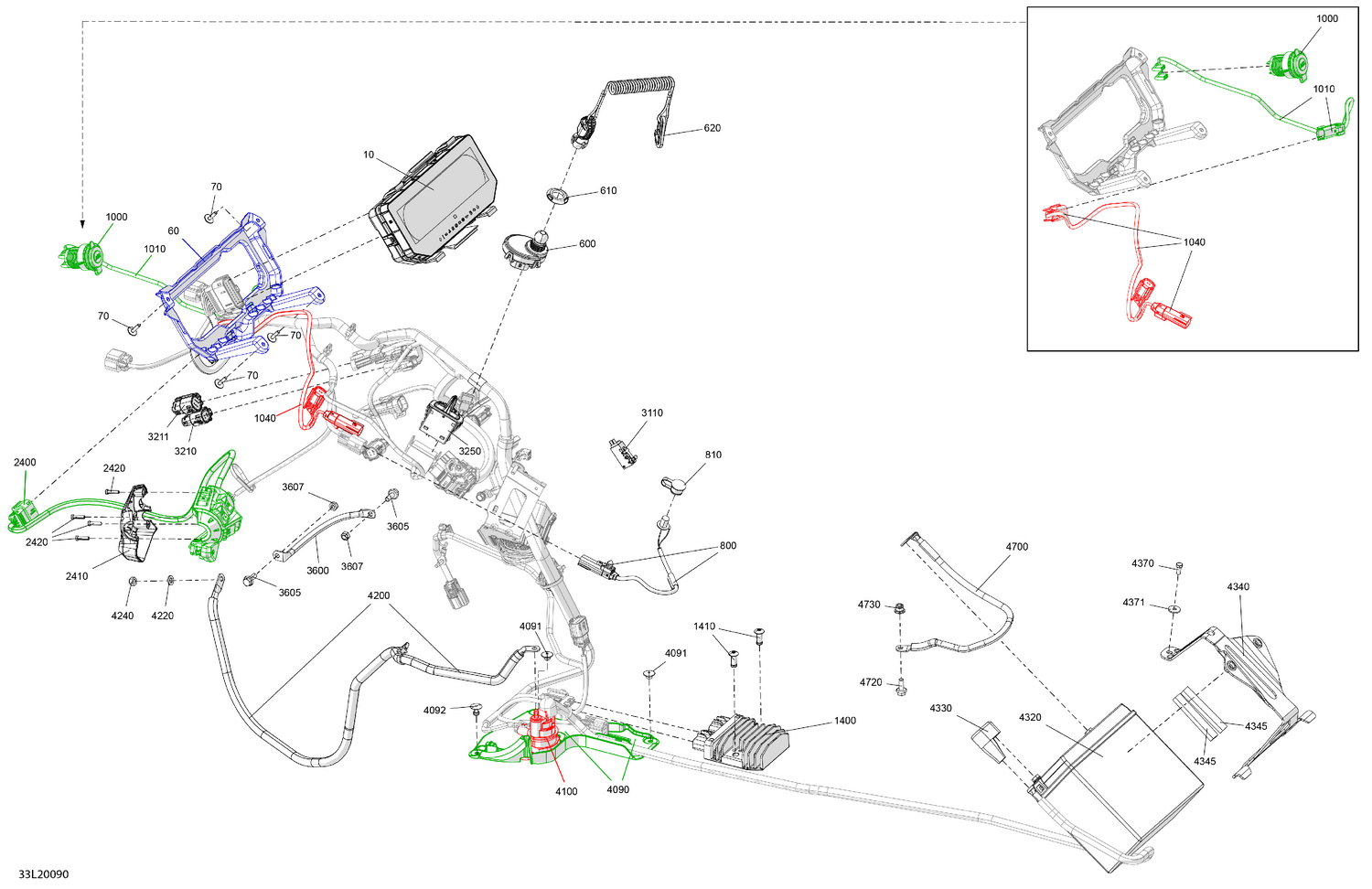

10- Electric - System - ST
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178227 | Multifunction Gauge Full Size Color |
| 60 | 515178278 | Support Gauge |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1010 | 515178190 | Harness |
| 1040 | 515178153 | Extension Harness |
| 1400 | 710010539 | Voltage Regulator This part replaces 710005569. |
| 1410 | 293150182 | Monobolt Rivet 6.4 |
| 2400 | 515178196 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 3110 | 515177460 | Switch Ass'y |
| 3211 | 515178202 | Connector Coil |
| 3250 | 515178501 | Rocket Switch |
| 3600 | 515178338 | Ground Wire |
| 3605 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3607 | 232561414 | Elastic Stop Nut M6 |
| 4090 | 515178244 | Support |
| 4091 | 293150103 | Pop Rivet 3/16 |
| 4092 | 293150104 | Pop Rivet 3/16 |
| 4100 | 278003012 | Starter Relay |
| 4200 | 515178336 | Battery Wire |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561414 | Elastic Stop Nut M6 |
| 4320 | 415129898 | Battery YUASA YTX20HL |
| 4330 | 710001817 | Protector Cap |
| 4340 | 515177870 | Battery Strip |
| 4345 | 517305157 | Seal Joint |
| 4370 | 207151244 | Hex. Screw M5 X 12 |
| 4371 | 391301600 | Washer |
| 4700 | 515178155 | Ground Wire |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
