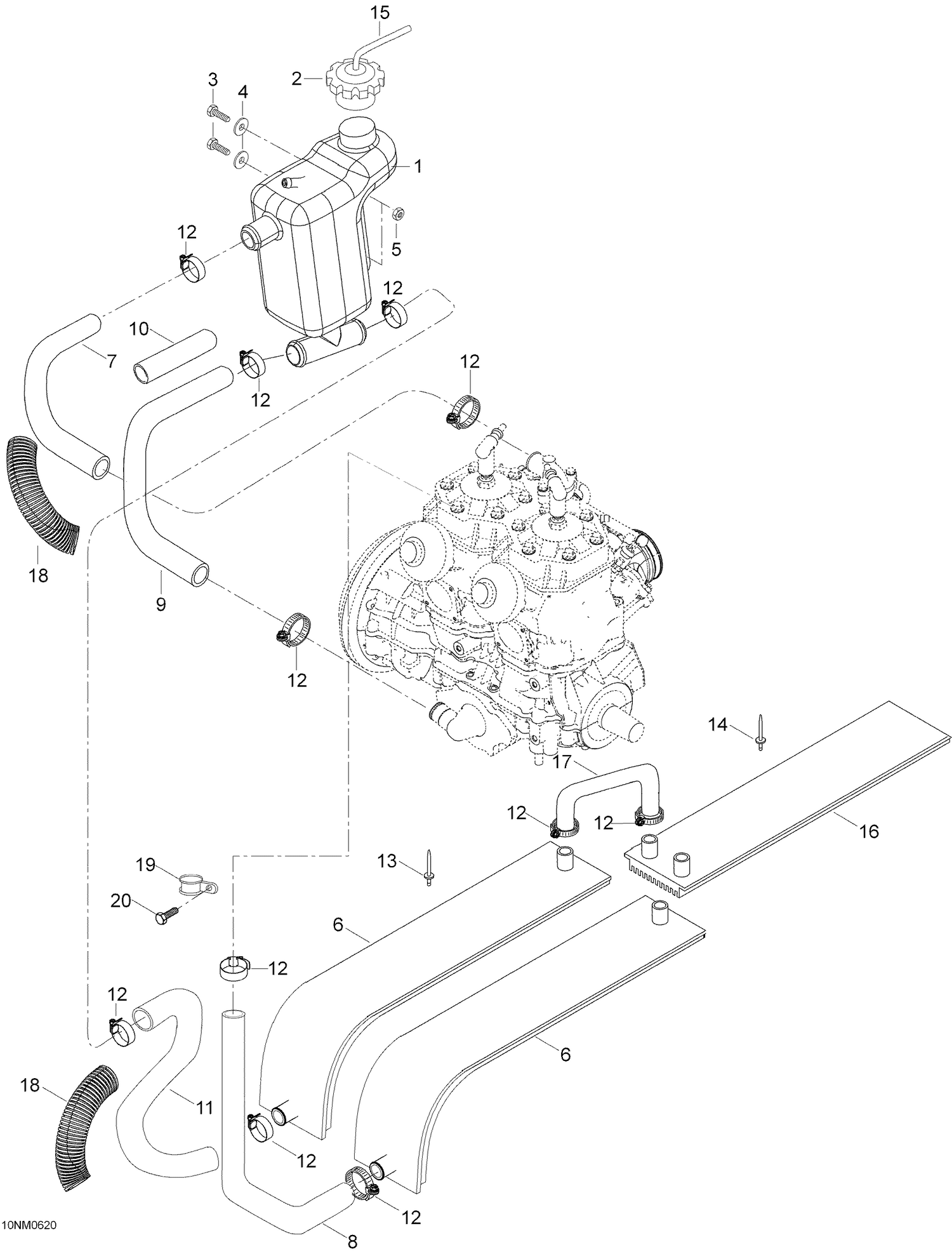

01- Cooling System
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605152223 | COOLANT TANK - Call your local BRP dealership |
| 2 | M21018 | Cap |
| 3 | 207161644 | Hex. Screw M6 X 16 |
| 4 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 605151689 | LH RADIATOR - Call your local BRP dealership |
| 6 | 605151690 | RH RADIATOR - Call your local BRP dealership |
| 7 | 605351619 | Hose |
| 8 | M5346201 | Hose |
| 9 | 605351620 | Hose |
| 10 | M39062 | TUBING - Call your local BRP dealership |
| 11 | 605351617 | Hose |
| 12 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 13 | 36108 | Rivet This part replaces M36108. |
| 14 | M36489 | Rivet |
| 15 | 219704410 | Polyurethane Hose 10000Mm Long |
| 16 | 605351687 | Radiator, Rear |
| 17 | 605252280 | Hose |
| 18 | M390003 | Tube |
| 19 | M27011 | CLIP - Call your local BRP dealership |
