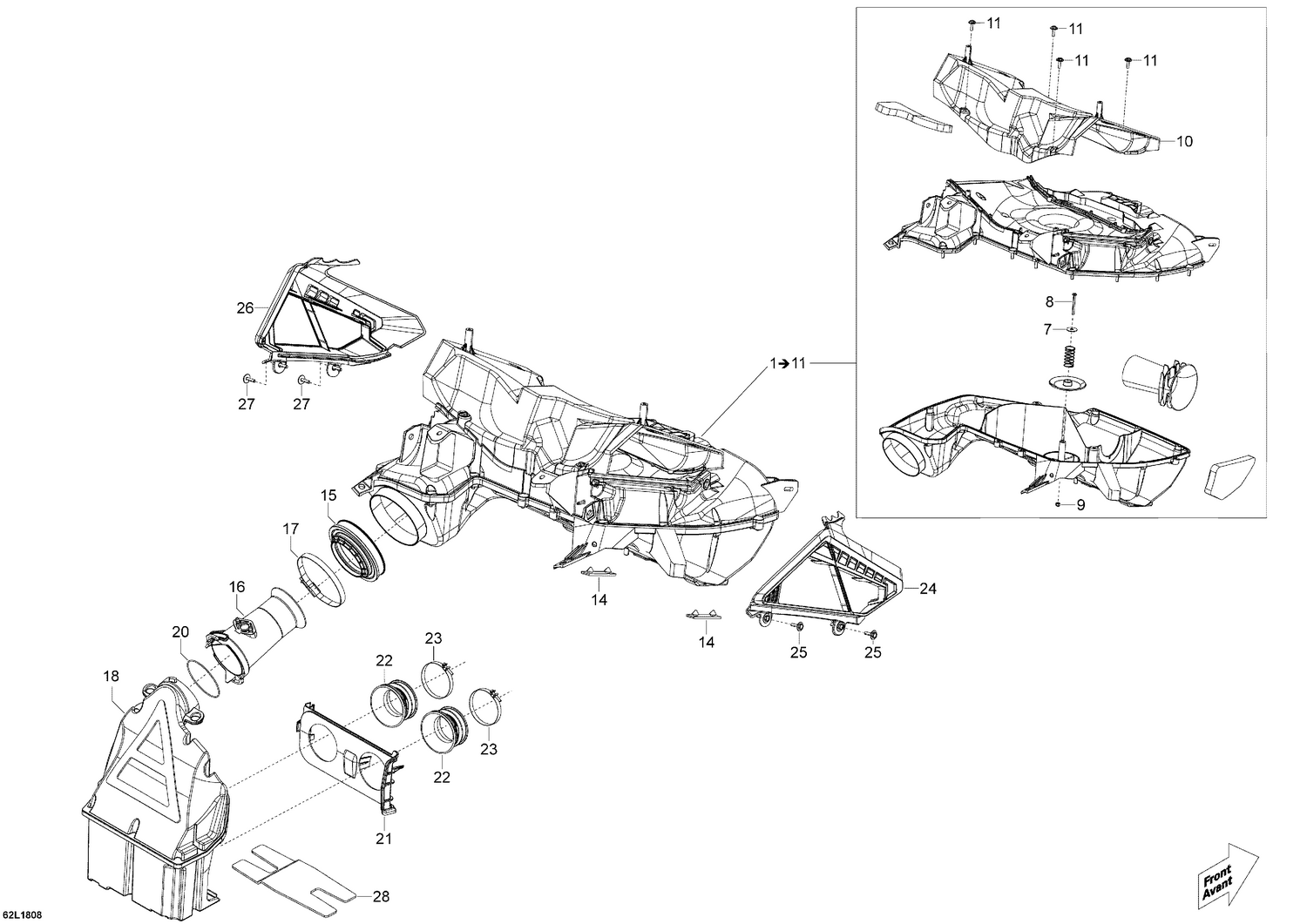

02- Air Intake 600 E-TEC - REX-2
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 224060201 | Flat Washer |
| 8 | 205444086 | Socket Head Screw M4 X 40 |
| 9 | 232541414 | Elastic Stop Nut M4 |
| 10 | 508000732 | Air Duct |
| 11 | 250000725 | Screw M4 X 16 |
| 14 | 508000744 | Stopper |
| 15 | 508000567 | Intake Adapter |
| 16 | 508000662 | Flute |
| 17 | 514052924 | Norma gear clamp |
| 18 | 508000660 | Primary Chamber Ass'y |
| 20 | 293300115 | O-rengas |
| 21 | 508000613 | Plate Adapter |
| 22 | 508000614 | Air Intake Adapter |
| 23 | 508000346 | Gemi Clamp |
| 24 | 508000730 | Air Filter RH |
| 25 | 250000725 | Screw M4 X 16 |
| 26 | 508000731 | Air Filter LH |
| 27 | 250000725 | Screw M4 X 16 |
