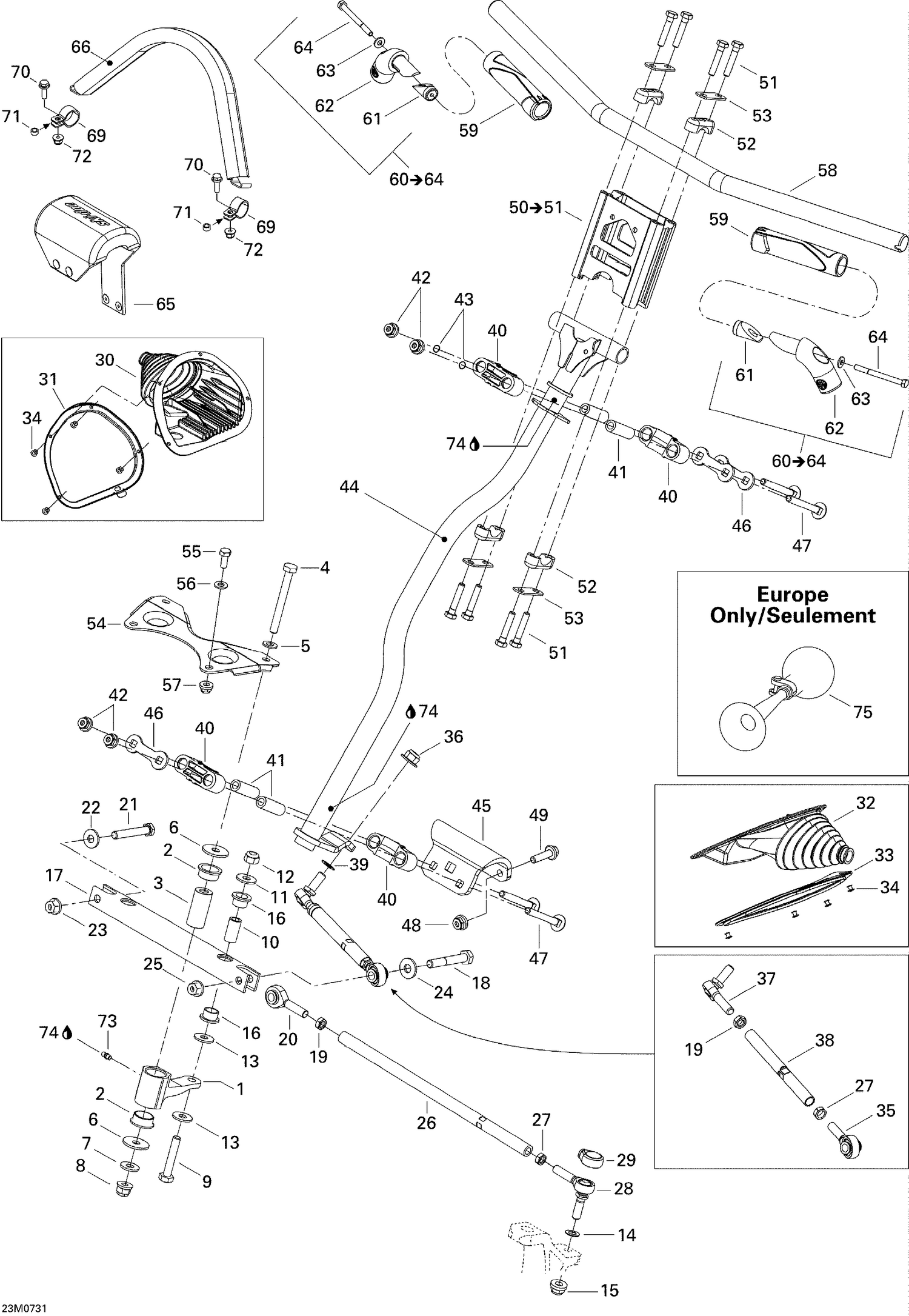

| Ref | Part Number | Description |
|---|
| 1 |
506152123 |
LH SWIVEL ARM - Call your local BRP dealership |
| 1 |
506152124 |
RH SWIVEL ARM - Call your local BRP dealership |
| 2 |
415041100 |
CUSHION - Call your local BRP dealership |
| 3 |
506151272 |
SWIVEL PIVOT - Call your local BRP dealership |
| 4 |
207009086 |
HEX. SCREW M10 X 90 - Call your local BRP dealership |
| 5 |
503183800 |
Washer |
| 6 |
506150000 |
Washer 10 mm |
| 7 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 8 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 9 |
207005544 |
Hex. Screw M10 X 55 |
| 10 |
506151273 |
Pivot Bar |
| 11 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 12 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 13 |
250200032 |
Washer |
| 14 |
503175800 |
Washer |
| 15 |
250100165 |
Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 16 |
503191555 |
Swivel Bushing This part replaces 506150200. |
| 17 |
506151328 |
SWIVEL BAR - Call your local BRP dealership |
| 18 |
207006544 |
Hex. Screw M10 X 1.5 X 65 |
| 19 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 20 |
506151810 |
LH Ball Joint |
| 21 |
207004544 |
Hex. Screw M10 X 45 |
| 22 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 23 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 24 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 25 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 26 |
506151340 |
TIE-ROD - Call your local BRP dealership |
| 27 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 28 |
506152212 |
BALL JOINT - Call your local BRP dealership This part replaces 506152017. |
| 29 |
506151650 |
PROTECTION CAP - Call your local BRP dealership |
| 30 |
506151725 |
RH Tie-Rod Cap |
| 31 |
506151356 |
RH RETAINER RING - Call your local BRP dealership |
| 32 |
506151726 |
LH Tie-Rod Cap |
| 33 |
506151357 |
LH RETAINER RING - Call your local BRP dealership |
| 34 |
390909100 |
Avex Rivet |
| 35 |
506152081 |
LH Thread Ball Joint This part replaces 506151828. |
| 36 |
250100165 |
Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 37 |
506151845 |
LH JOINT BALL - Call your local BRP dealership |
| 38 |
506152006 |
TIE ROD - Call your local BRP dealership |
| 39 |
503175800 |
Washer |
| 40 |
506150400 |
Housing Half |
| 41 |
506150500 |
Housing Bushing |
| 42 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 43 |
506151140 |
O-RING - Call your local BRP dealership |
| 44 |
506152157 |
MAIN TUBE - Call your local BRP dealership |
| 45 |
506151819 |
MAIN TUBE SUPPORT - Call your local BRP dealership |
| 46 |
506150600 |
Stopper Plate |
| 47 |
207787044 |
Carriage Bolt M8 X 70 |
| 48 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 49 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 51 |
250000074 |
Hex. Screw With Nylon M8 X 40 |
| 52 |
709400919 |
Steering Support This part replaces 506151622. |
| 53 |
709400509 |
Stiffner This part replaces 506151196. |
| 54 |
506151536 |
PIVOT SUPPORT - Call your local BRP dealership |
| 55 |
207182544 |
Hex. Screw M8 X 25 |
| 56 |
234081410 |
Flat Washer 8 mm |
| 57 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 58 |
506151782 |
HANDLE BAR - Call your local BRP dealership |
| 65 |
506152522 |
STEERING PAD - Call your local BRP dealership This part replaces 506152165. |
| 66 |
506152115 |
Strap Ass'y |
| 69 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 70 |
207662084 |
Hex. Flange Screw M6 X 20 |
| 71 |
506152156 |
Bushing |
| 72 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 73 |
408200700 |
Grease Fitting |
| 74 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
