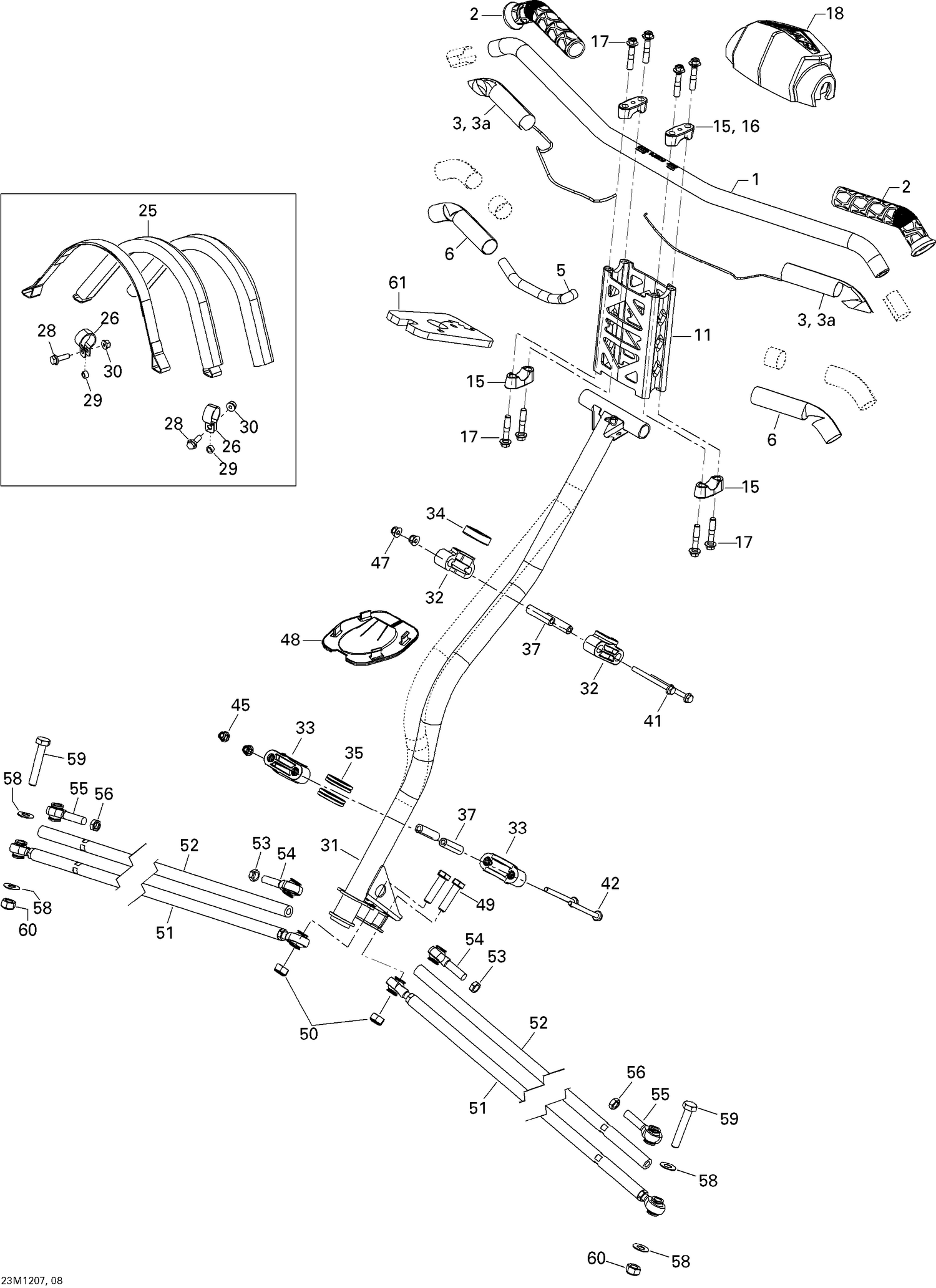

07- Steering
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152709 | Handle Bar, Non Dyed Clear Anodizing This part replaces 506152458. |
| 2 | 506152486 | Grip This part replaces 506152226. |
| 3 | 506152371 | Heating Element 32W |
| 3a | 515175232 | Male Terminal |
| 5 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 6 | 506152360 | Insulant |
| 11 | 860200820 | Riser Kit This part replaces 860200526. |
| 15 | 506152751 | Steering Support This part replaces 506152395. |
| 16 | XXX | Not Available As Spare Parts |
| 17 | 250000352 | Hex. Flange Screw M8 X 40 |
| 18 | 506152192 | Steering Pad |
| 25 | 506152115 | Strap Ass'y |
| 26 | 506152536 | Black Support Plate |
| 28 | 207662084 | Hex. Flange Screw M6 X 20 |
| 29 | 506152156 | Bushing |
| 30 | 233261494 | Hex. Flange Elastic Nut M6 |
| 32 | 506152508 | Upper Half-Housing |
| 33 | 506152217 | Lower Half-Housing |
| 34 | 506152509 | Upper Anti-Vibration Gasket |
| 35 | 506152518 | Lower Vibration Ring This part replaces 506152218. |
| 37 | 506152297 | Housing Bushing |
| 41 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 42 | 207667044 | Hex. Flange Screw M6 X 70 |
| 45 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 47 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 48 | 506152163 | Plate |
| 49 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 50 | 232500416 | Elastic Stop Nut M10 |
| 51 | Not | Available As Spare Part - Tie-Rod Ass'y |
| 52 | 506152498 | Tie-Rod |
| 53 | 506152081 | LH Thread Ball Joint |
| 54 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 55 | 506152019 | RH Threaded Ball Joint |
| 56 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 58 | 506152194 | Washer |
| 59 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 60 | 232500416 | Elastic Stop Nut M10 |
