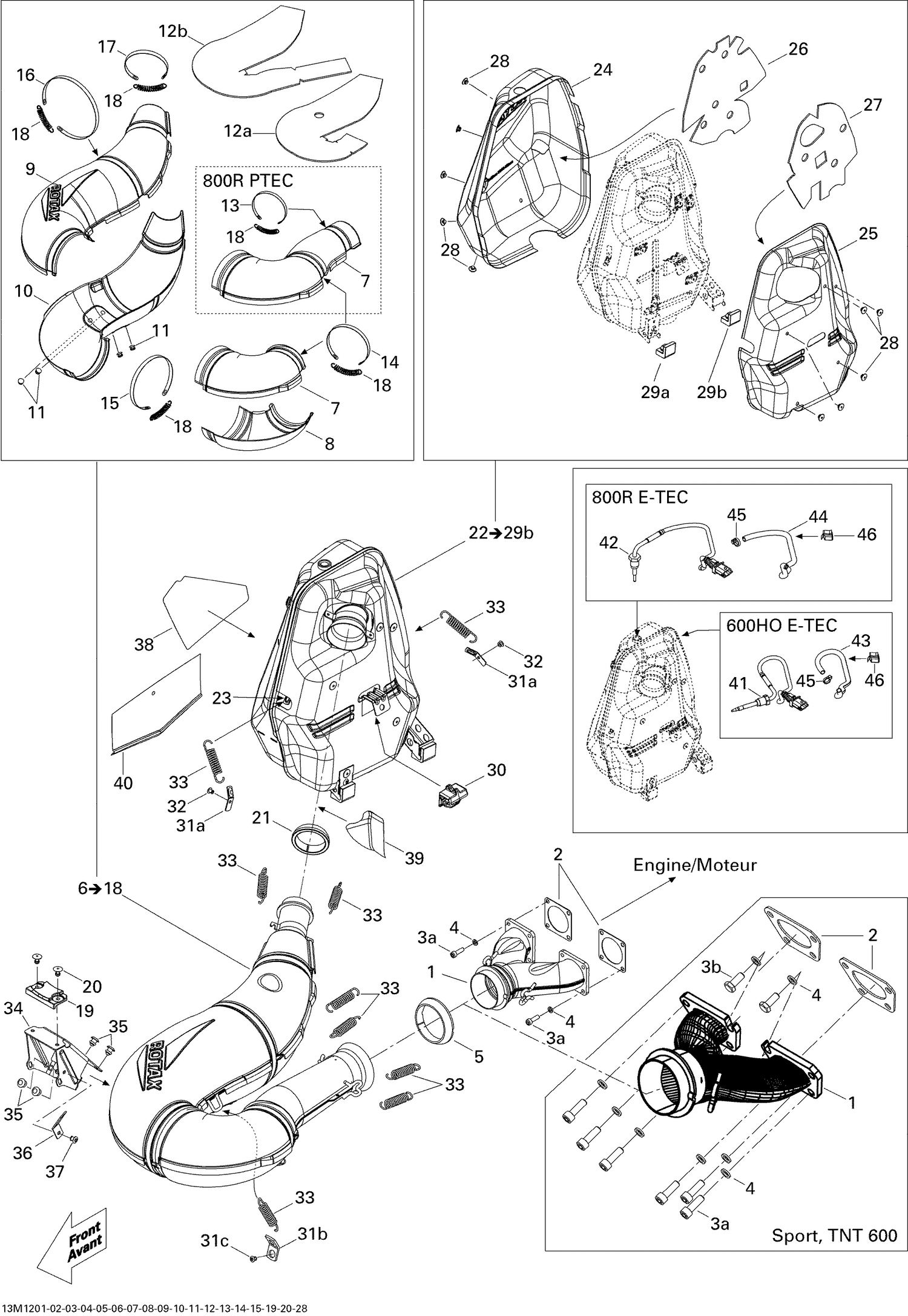

01- Exhaust System
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 3b | XXX | Not Available As Spare Parts |
| 5 | 514053487 | Exhaust Gasket |
| 7 | 514054992 | Front Upper Half Enveloppe This part replaces 514054485. |
| 8 | 514054993 | Front Lower Half Enveloppe This part replaces 514054486. |
| 9 | 514055039 | Rear Upper Half Enveloppe This part replaces 514054590. |
| 10 | 514054990 | Rear Lower Half Enveloppe This part replaces 514054279. |
| 11 | 293150091 | Henrob Rivet |
| 12a | 514054487 | Insulating Wool |
| 12b | XXX | Not Available As Spare Parts |
| 13 | XXX | Not Available As Spare Parts |
| 14 | 514054408 | Retaining Strap |
| 15 | 514054409 | Retaining Strap |
| 16 | 514054410 | Retaining Strap |
| 17 | 514053499 | Retaining Strap |
| 18 | 514053643 | Spring |
| 19 | 514054275 | Bumper |
| 20 | 293150103 | Pop Rivet 3/16" |
| 21 | 514054174 | Exhaust Gasket |
| 23 | 514054155 | Spring Bracket |
| 26 | 514054711 | RH Insulating Wool |
| 27 | 514054299 | LH Insulating Wool |
| 28 | 390910000 | Pop Rivet 3/16” |
| 29a | 514054274 | Lower Stopper |
| 29b | 514054496 | Lower Stopper |
| 30 | 514054606 | Upper Stopper |
| 31a | 514054522 | Spring Bracket This part replaces 514054391. |
| 31b | 514054087 | SPRING BRACKET - Call your local BRP dealership |
| 31c | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 32 | 390402200 | Pop Rivet 3/16" |
| 33 | 514054226 | Spring |
| 34 | XXX | Not Available As Spare Parts |
| 35 | XXX | Not Available As Spare Parts |
| 36 | XXX | Not Available As Spare Parts |
| 37 | XXX | Not Available As Spare Parts |
| 38 | 514054488 | Reflective Sheet |
| 39 | 514054817 | Heat Shield |
| 40 | XXX | Not Available As Spare Parts |
| 45 | 293750001 | Tie Wrap 94 mm |
