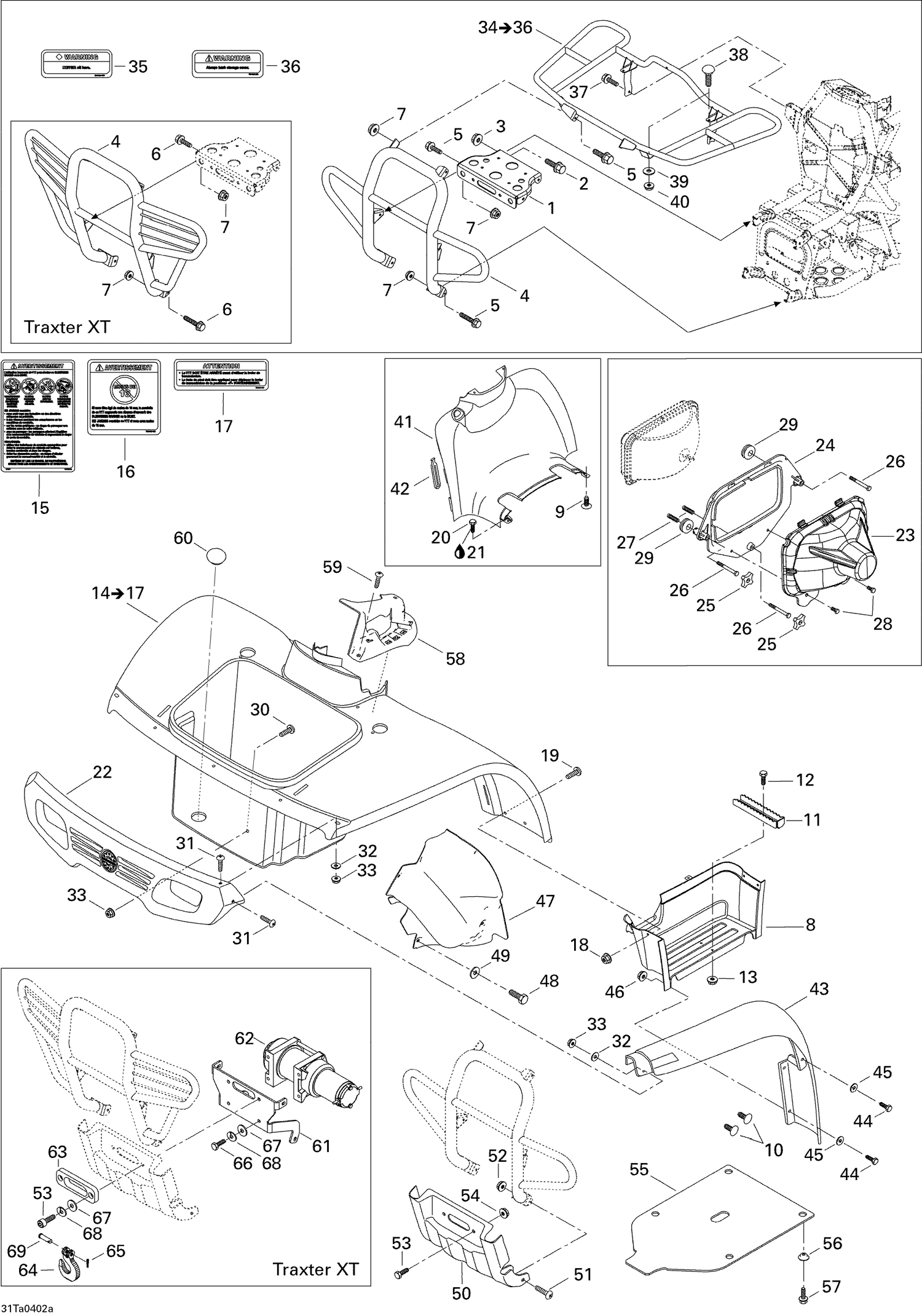

| Ref | Part Number | Description |
|---|
| 1 |
705200196 |
WINCH LATCH, BLACK - Call your local BRP dealership |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
705000822 |
RH Footboard, Slate Gray |
| 9 |
293730011 |
Black, Dart |
| 10 |
293730011 |
Black, Dart |
| 11 |
705001083 |
Footrest, Black |
| 12 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 20 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 21 |
293800060 |
Loctite 243, 10 ml |
| 22 |
705000708 |
Front Fascia, Slate Gray |
| 23 |
705001048 |
Light Protector |
| 24 |
705000474 |
Head Lamp Support |
| 25 |
572106600 |
Handle |
| 26 |
250000008 |
HEX. SCREW K40 X 40 - Call your local BRP dealership |
| 27 |
517168600 |
Spring |
| 28 |
241641040 |
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership |
| 29 |
709000582 |
Grommet This part replaces 293720053. |
| 30 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 31 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 32 |
224060201 |
Flat Washer |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 37 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 38 |
250000035 |
TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 39 |
224060201 |
Flat Washer |
| 40 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 41 |
705000710 |
Tank Cover, Slate Gray |
| 42 |
570023800 |
Windshield Latch |
| 43 |
705000828 |
RH Front Mudguard |
| 44 |
207162044 |
Hex. Screw M6 X 20 |
| 45 |
224060201 |
Flat Washer |
| 46 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 47 |
705000134 |
RH TANK PROTECTOR - Call your local BRP dealership |
| 48 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 49 |
224061201 |
Flat Washer |
| 50 |
705000713 |
PROTECTOR PLATE, SLATE GRAY - Call your local BRP dealership |
| 51 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 52 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 55 |
705200535 |
Skid Plate |
| 56 |
705200533 |
CUP - Call your local BRP dealership |
| 57 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 58 |
705000081 |
Lever Indicator |
| 59 |
414745900 |
Tuflock Phillips Plastic Screw |
| 60 |
570041600 |
Rubber Cover |
| 705000133 |
LH |
TANK PROTECTOR - Call your local BRP dealership 705000133 |
| 705000133 |
Protecteur |
De Réservoir GA - Appelez votre concessionnaire BRP local 705000133 |
| 705000823 |
LH |
Footboard, Slate Gray 705000823 |
| 705000823 |
Marchepied |
GA, Gris Ardoise 705000823 |
| 705000827 |
Garde-Boue |
Avant GA 705000827 |
| 705000827 |
LH |
Front Mudguard 705000827 |
