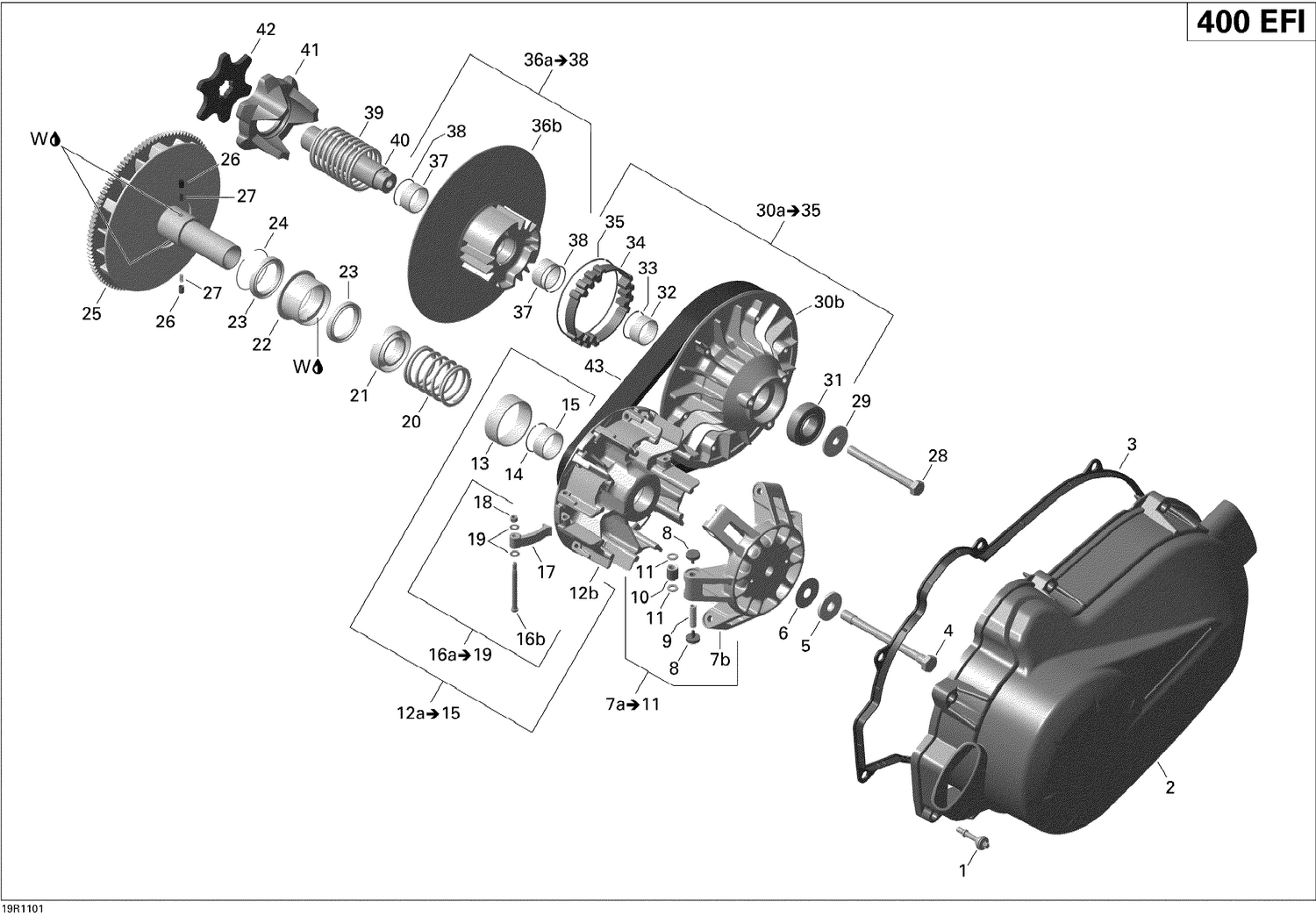

05- Transmission

05- Transmission

Parts (43)

RefPart NumberDescription
1 420440568 Hex Screw M6 X 30 This part replaces 420440567.
2 420610428 CVT Cover
3 420630290 CVT Cover Gasket
4 420641812 Hex. Screw M12 X 140
5 420627760 Spring Washer
6 420627920 Thrust Washer
7b Not Available As Spare Part - Governor Cup
8 420281296 Slider Shoe Set This part replaces 420281293.
9 417223257 Roller Axle This part replaces 420233893.
10 417223767 Roller This part replaces 420229997.
11 417223767 Roller This part replaces 420626231.
12b Not Available As Spare Part - Outer Half
13 Not Available As Spare Part - Bushing
14 Not Available As Spare Part - Retaining Ring
15 Not Available As Spare Part - Bushing
16b Not Available As Spare Part - Bearing Screw M5
17 Not Available As Spare Part - Lever
18 Not Available As Spare Part - Lock Nut M5
19 Not Available As Spare Part - Thrust Washer
20 420238166 Compression Spring
21 420627578 Seat Spring This part replaces 420627577.
22 420257439 Clutch
23 420632377 Ball Bearing This part replaces 420632375.
24 420245951 Retaining Ring
25 420280247 Inner Half Ass'y
26 420229577 Spring Sleeve
27 420239135 Compression Spring
28 420441485 Hex. Screw M10 X 110 This part replaces 420941909.
29 420627594 Thrust Washer This part replaces 420627590.
30b Not Available As Spare Part - Outer Half
31 420932421 Ball Bearing
32 Not Available As Spare Part - Bushing
33 Not Available As Spare Part - Retaining Ring
34 420660124 Torque Gear This part replaces 420660121.
35 420245911 Retaining Ring This part replaces 420245910.
36b Not Available As Spare Part - Inner Half
37 Not Available As Spare Part - Bushing
38 Not Available As Spare Part - Retaining Ring
39 420238173 Compression Spring, Driven Pulley
40 420220914 Driven Pulley Shaft
41 420280250 Cam
42 420627586 Cam Plate
43 422280283 Drive Belt This part replaces 420280280.
