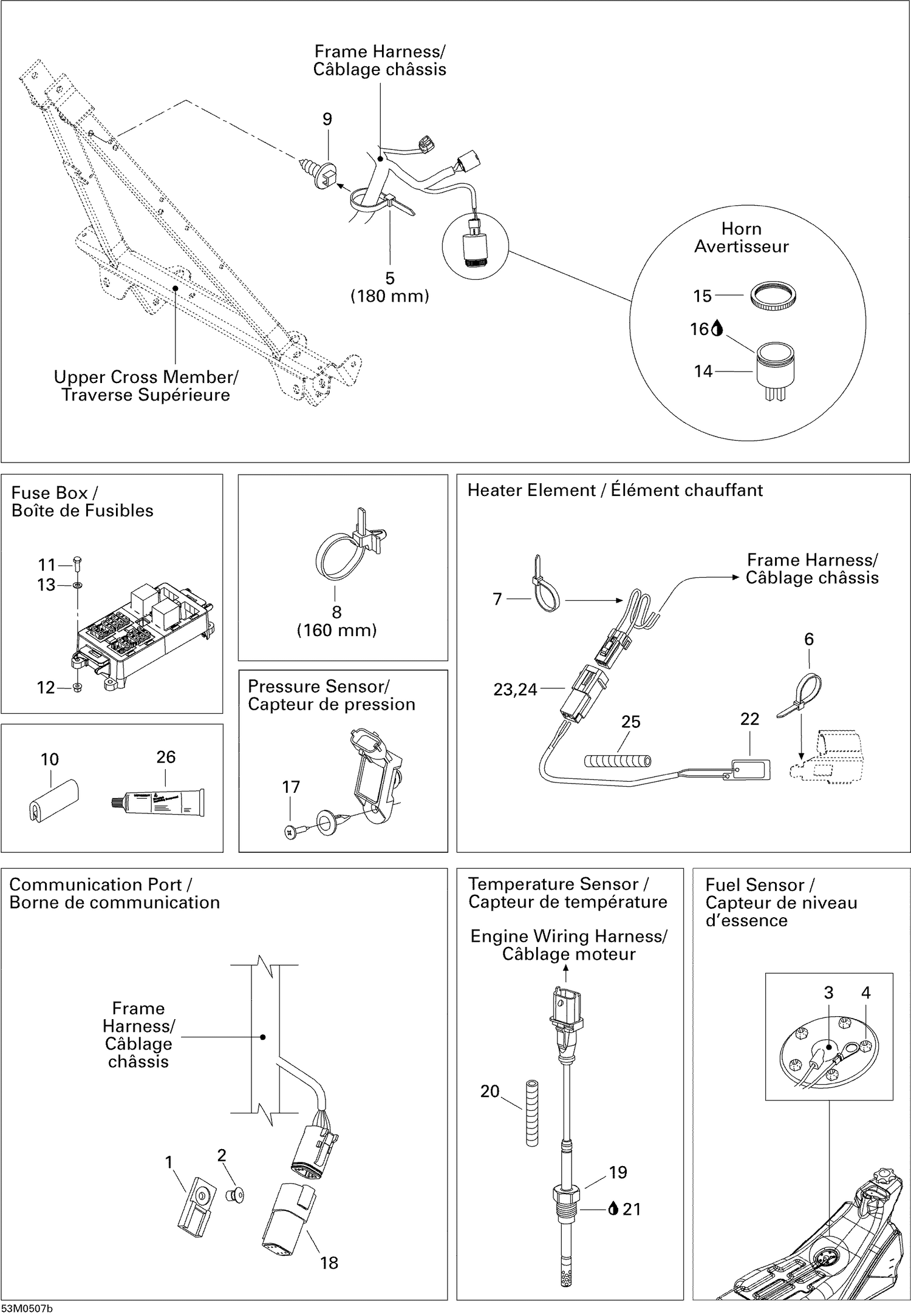

| Ref | Part Number | Description |
|---|
| 1 |
270000141 |
Clip This part replaces 515175917. |
| 2 |
293150037 |
Avdel Rivet 3/16" |
| 5 |
414115200 |
Tie-Rap 180 mm |
| 6 |
293750001 |
Tie Wrap 94 mm |
| 7 |
293750002 |
Tie Wrap 142 mm |
| 8 |
293750009 |
Tie-Rap 173 mm |
| 9 |
293730040 |
Mount Dart This part replaces 293730018. |
| 10 |
219704353 |
Was 271000110 Protection Trim |
| 11 |
207152044 |
Hex. Screw M5 X 20 |
| 12 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 13 |
234051410 |
Flat Washer M5 |
| 14 |
515176035 |
HORN - Call your local BRP dealership |
| 15 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 16 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 17 |
414745900 |
Tuflock Phillips Plastic Screw |
| 18 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 19 |
515176132 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 20 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 21 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 22 |
515176256 |
Heater Element |
| 23 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 24 |
515175232 |
Male Terminal |
| 25 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
