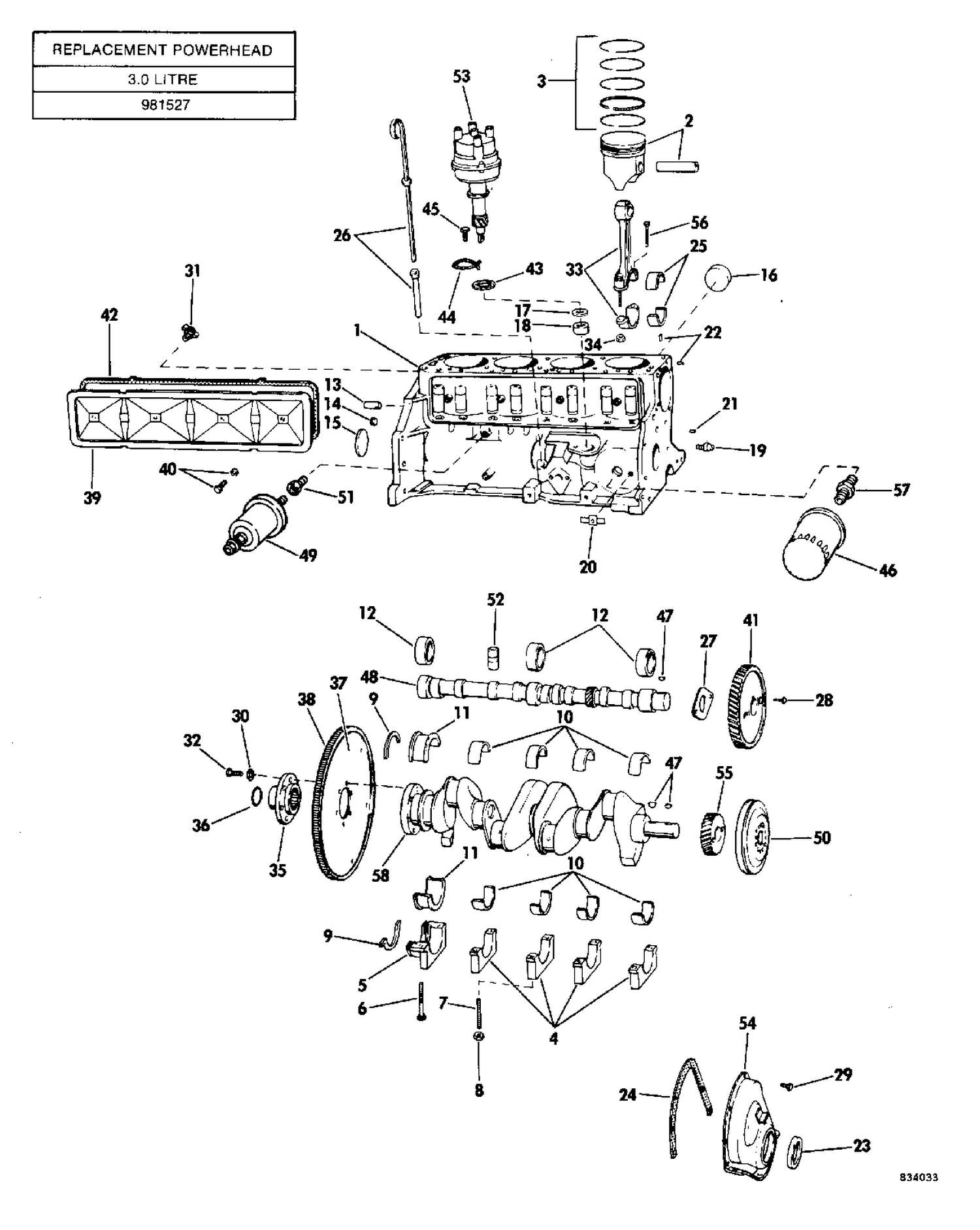

CRANKCASE GROUP 3.0 LITRE MODELS

CRANKCASE GROUP 3.0 LITRE MODELS

Parts (74)

RefPart NumberDescription
1 0983047 CRANKCASE ASSEMBLY
2 0980503 PISTON & PIN, Standard
2 0980504 PISTON & PIN, .020" O.S.
3 0328506 PISTON RING SET
3 0328511 PISTON RING SET, .020 0s
4 3970194 CAP, Crankshaft bearing
5 3928975 CAP, Crankshaft bearing
6 3872781 BOLT, 7/16 x 3-9/32
7 3872718 STUD #3 BEARING CAP
8 9422297 NUT, 3/8-16
9 0473424 OIL SEAL SET, Crankshaft rear baering
10 3829061 BRG AASY,Exc rear,std
10 3829062 BRG ASSY, Exc rear, .001 U.S.
10 3829063 BRG ASSY, Exc rear, .002'' U.S.
10 3829064 BRG ASSY, Exc rear, .010" U.S.
10 3829065 BRG ASSY, Exc rear, .020" U.S.
10 3829066 BRG ASSY EXC REAR, .030'' U.S.
11 3829067 BRG ASSY, Rear, std
11 3829068 BRG ASSY, Rear, .001" U.S.
11 3829069 BRG ASSY, Exc rear, .020" U.S.
11 3829070 BRG ASSY, Rear 0010
11 3829071 BRG ASSY, Rear, .020" U.S.
11 3829072 BRG ASSY, Rear 0.030" U.S.
12 3750884 BEARING CAMSHAFT,Front and center
13 3712745 DOWEL PIN
14 0444782 PLUG, 3/8
15 3704158 PLUG, Camshaft bearing, rear
16 0311376 CORE PLUG, Side
16 0311377 CORE PLUG, Rear
17 3792285 THRUST WAHSER
18 3792286 BEARING, Shaft pilot
19 3875950 NOZZEL, Timing gear oil
20 5575416 BY-PASS VALVE,Oil filter
21 3835577 PLUG Cylinder and crankcase main oil gallery - front hole
22 0585927 DOWEL PIN
23 14033199 SEAL
24 3923472 GASKET, Front crankcase cover
25 3910555 BEARING, Connecting rod, std.
25 3910556 BEARING, Rod, .001" u.s.
25 3910557 BEARING, Rod .002" u.s.
25 3910558 BEARING, Rod, .010" u.s.
25 3910559 BEARING, Rod, .020" u.s.
26 3850524 OIL LEVEL GAUGE & TUBE ASSY This part replaces 0381927.
27 10000568 BEARING, Thrust unit
28 3817006 BOLT, Camshaft sprocket
29 3817006 BOLT, Camshaft sprocket
30 0316959 L'WASHER,Screw,coupling
31 0379957 PETCHOCK ASSY, Water drain
32 0908375 BOLT, Flywheel
33 3853785 CONNECTING ROD & CAP ASSY This part replaces 0980505.
34 3866766 NUT, Conn rod, 11/32-24
35 0980994 COUPLING & O-RING ASSY
36 0909567 O-RING
37 2778809 FLYWHEEL ASEMBLY
38 3991407 GEAR, Flywheel
39 10014469 COVER, Push rod
40 3814350 BOLT & SEAL ASSEMBLY
41 3852452 GEAR, Camshaft timing This part replaces 0908613.
42 3923469 GASKET, Push rod cover
43 6256636 GASKET, Distributor
44 0355780 CLAMP, Distributor
45 0454905 BOLT, Distributor
46 0173232 OIL FILTER
47 0106751 KEY, Wdf, 3/16" x 3/4"
48 0908610 CAMSHAFT ASSEMBLY
49 3853800 OIL PRESSURE SENDER This part replaces 0982650.
50 3826280 DAMPER CRANKSHAFT PULLEY
51 3855776 ADAPTER, Oil sender This part replaces 0121688.
52 5232810 VALVE LIFTER
53 0982351 DISTRIBUTOR ASSEMBLY
54 3996616 COVER ASSY, Crankshaft, front
55 3882892 GEAR, Crankshaft
56 0360182 BOLT, Connecting rod
57 3853870 CONNECTOR, Oil filter
