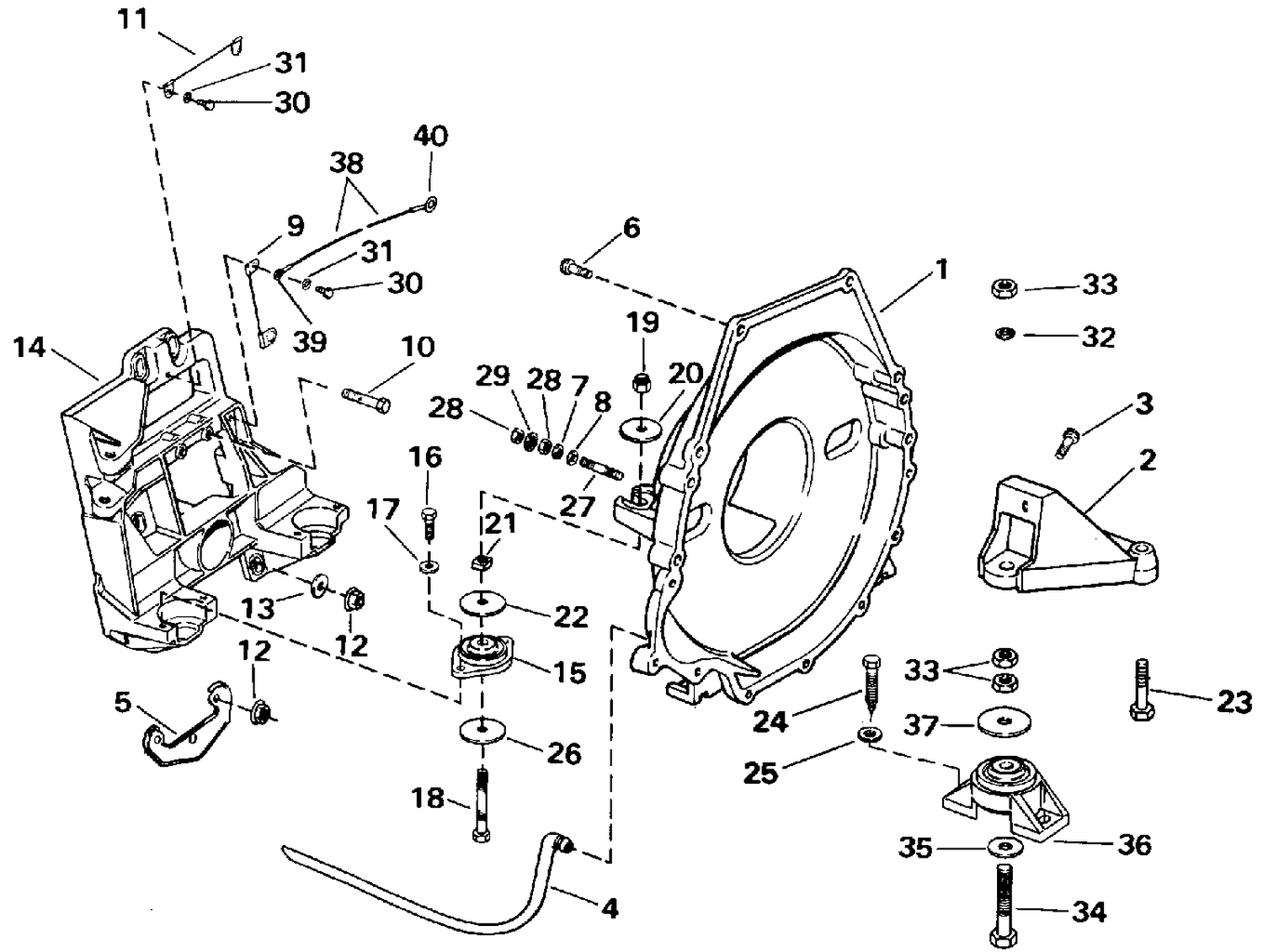

TRANSOM PLATE, FLYWHEEL HOUSING & MOUNTS

TRANSOM PLATE, FLYWHEEL HOUSING & MOUNTS

Parts (36)

RefPart NumberDescription
1 3853408 HOUSING, Flywheel This part replaces 0915021.
2 0988085 BRACKET, Front mount This part replaces 0916081.
3 3852701 SCREW, Mount rest This part replaces 0913445.
4 3852832 HOSE, Flywheel housing This part replaces 0913787.
5 3852605 BEARING PLATE This part replaces 0912715.
6 3853558 BOLT, Bracket to head This part replaces 0915791.
6 3853626 SCREW, Front mount This part replaces 0915994.
7 0120177 L'WASHER, Alternator to brkt
9 3853928 GROUND STRAP, Bracket to stud This part replaces 0986155.
10 3853547 SCREW, Bracket This part replaces 0915726.
11 3853929 GROUND STRAP, Bracket to arm This part replaces 0986156.
12 3853329 LOCKNUT, Transom plate This part replaces 0914772.
13 3852573 WASHER, Pivot pin This part replaces 0911915.
14 3854605 TRANSOM PLATE This part replaces 0913826.
15 3853806 REAR MOUNT This part replaces 0983932.
16 0309484 SCREW
18 0318573 SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm)
19 0363254 NUT, Stern bracket screw This part replaces 0313623.
20 3852540 WASHER This part replaces 0911778.
21 3852539 NUT This part replaces 0911776.
22 3852622 WASHER, Lower This part replaces 0912889.
23 3853626 SCREW, Front mount This part replaces 0915994.
23 3854387 SCREW, Bracket, long This part replaces 0914348.
24 3852475 LAG SCREW This part replaces 0909716.
25 3852078 WASHER, Lag screw This part replaces 0308091.
26 3852542 WASHER This part replaces 0911780.
27 3852754 STUD, Ground This part replaces 0913671.
29 0306993 L'WASHER,Potentiometer,12 V
31 0329241 RONDELLE
32 3852090 LOCK WASHER This part replaces 0310856.
33 3852021 LOCKNUT This part replaces 0130084.
34 3852566 BOLT, Engine mount This part replaces 0911857.
35 3852428 WASHER, Lower This part replaces 0907857.
36 3853805 FRONT MOUNT This part replaces 0983903.
37 3852433 WASHER This part replaces 0908114.
38 3853927 GROUND STRAP, Bracket to engine This part replaces 0986154.
