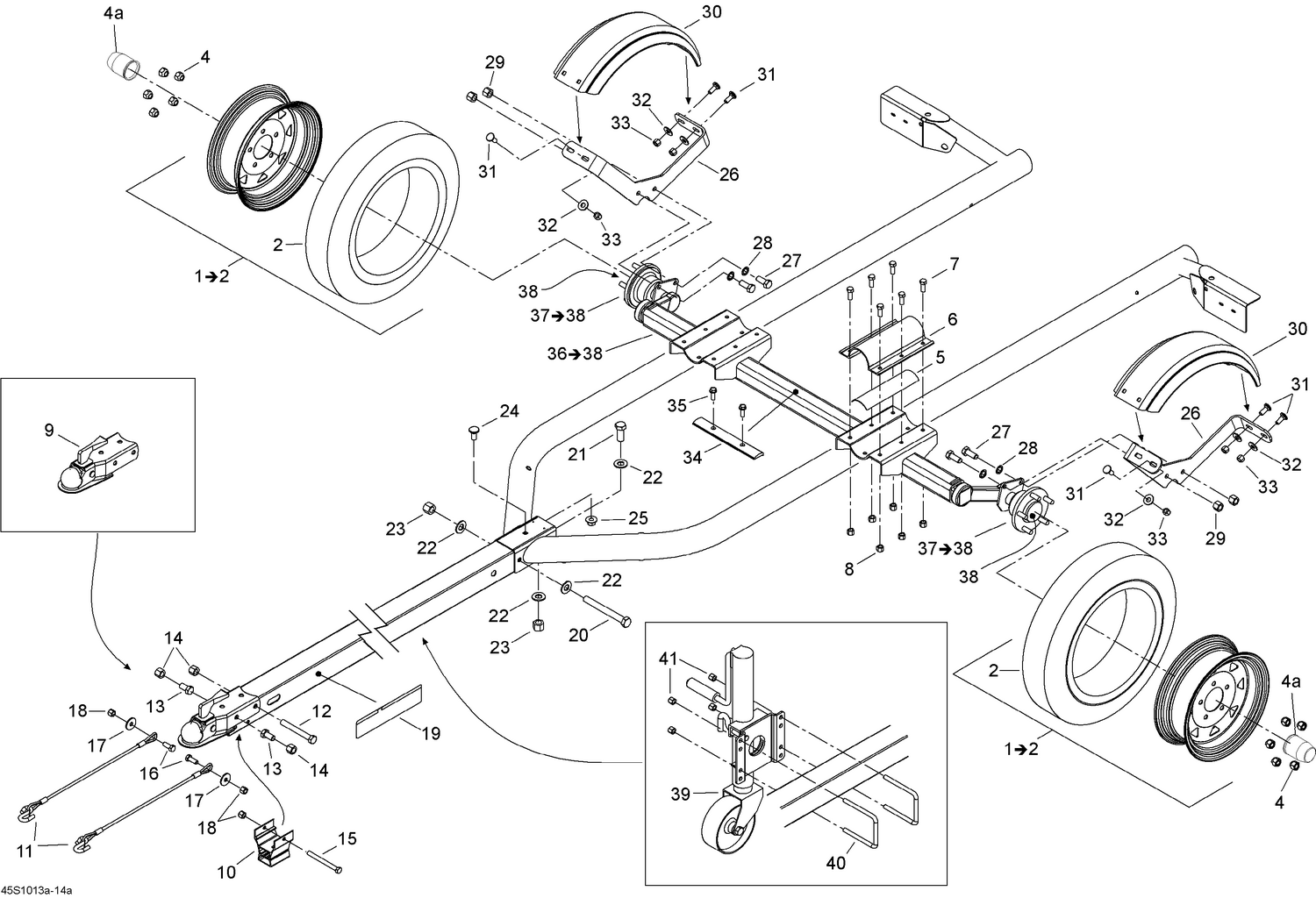

| Ref | Part Number | Description |
|---|
| 2 |
271001678 |
TIRE_4,80X12B - Call your local BRP dealership |
| 4 |
269800122 |
NUT - Call your local BRP dealership |
| 4a |
269800119 |
CHROME CAP - Call your local BRP dealership |
| 5 |
269800144 |
Gasket |
| 6 |
262000043 |
Clamp |
| 7 |
269800305 |
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership This part replaces 269800005. |
| 8 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 9 |
262000044 |
COUPLER - Call your local BRP dealership |
| 10 |
295100594 |
TONGUE STAND - Call your local BRP dealership This part replaces 262000049. |
| 11 |
262000045 |
SAFETY CABLE - Call your local BRP dealership |
| 12 |
269800401 |
HEX. BOLT 1/2''-13 X 4'' - Call your local BRP dealership This part replaces 269800131. |
| 13 |
269800132 |
HEXAGONAL BOLT - Call your local BRP dealership |
| 14 |
269800130 |
Lock Nut |
| 15 |
291003301 |
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership This part replaces 291003016. |
| 16 |
269800305 |
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership This part replaces 269800005. |
| 18 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 19 |
219904010 |
WARNING DECAL - Call your local BRP dealership This part replaces 219903238. |
| 20 |
269800307 |
HEX. BOLT 1/2'' - 13 X 4 1/2'' - Call your local BRP dealership This part replaces 269800134. |
| 21 |
269800308 |
HEX. BOLT 1/2''-13 X 1-1/4'' - Call your local BRP dealership This part replaces 269800137. |
| 22 |
269800309 |
WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139. |
| 23 |
269800130 |
Lock Nut |
| 24 |
269800311 |
CARRIAGE BOLT 3/8''-16 X 7/8'' - Call your local BRP dealership This part replaces 269800141. |
| 25 |
269800312 |
CENTERLOCK NUT 3/8'' - Call your local BRP dealership This part replaces 269800163. |
| 27 |
269800185 |
Hexagonal Bolt |
| 28 |
269800161 |
LOCK WASHER - Call your local BRP dealership |
| 29 |
269800130 |
Lock Nut |
| 30 |
262000042 |
WHEEL FENDER, GREY - Call your local BRP dealership |
| 31 |
269800186 |
Carriage Bolt |
| 32 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 33 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 34 |
291003015 |
Protector |
| 35 |
269800136 |
SCREW - Call your local BRP dealership |
| 38 |
271001851 |
HUB DUST CAP - Call your local BRP dealership This part replaces 296000320. |
