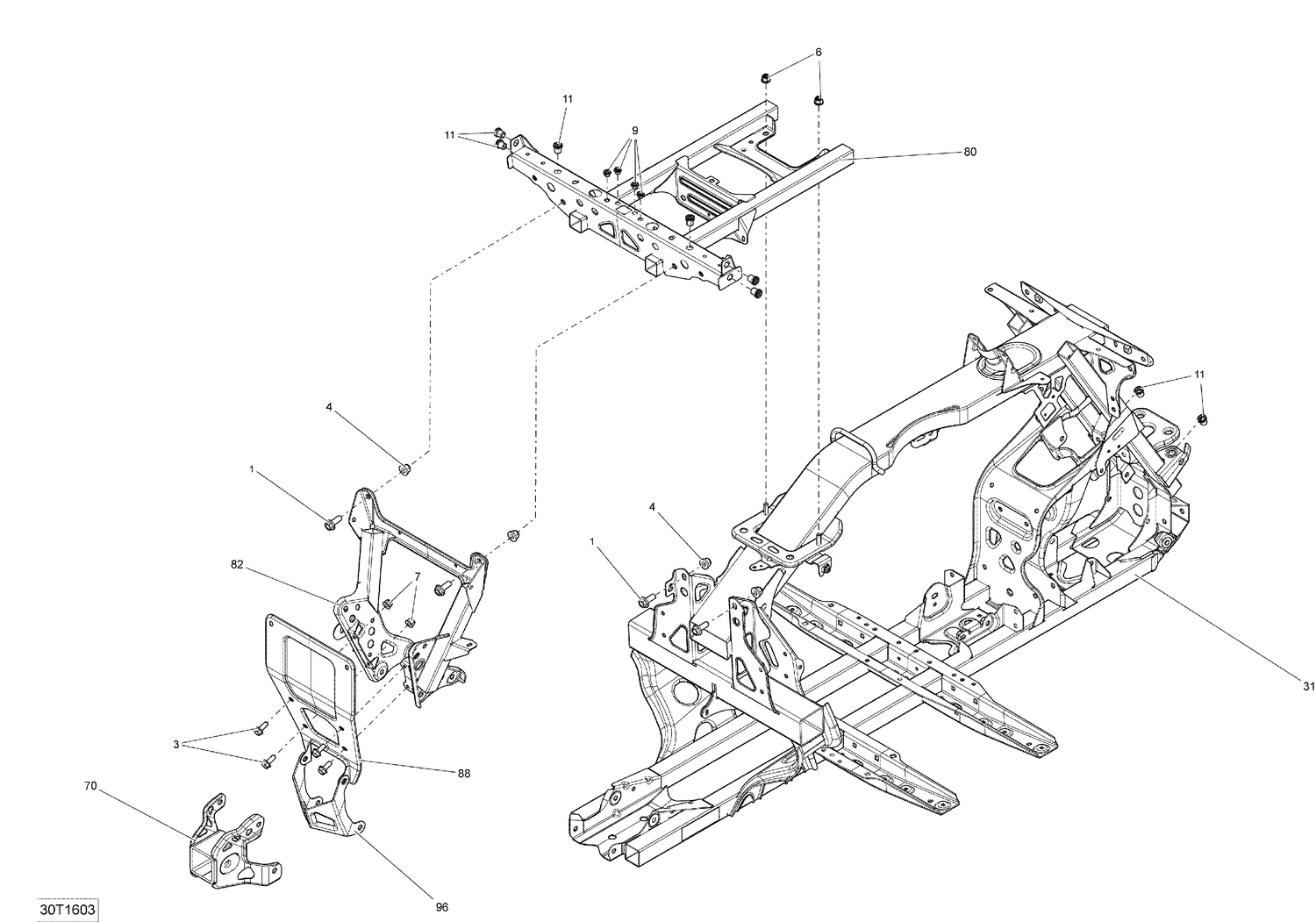

| Ref | Part Number | Description |
|---|
| 1 |
207602546 |
Hex. Flange Screw M10 X 25 |
| 3 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 4 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 6 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 7 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 9 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 11 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 31 |
705204116 |
Black Frame |
| 70 |
715005186 |
Trailer Hitch This part replaces 715002243. |
| 80 |
705210821 |
Chassis Extension This part replaces 705204075. |
| 82 |
705210818 |
Rear Pillar This part replaces 705203387. |
| 88 |
705203301 |
Rear Support |
