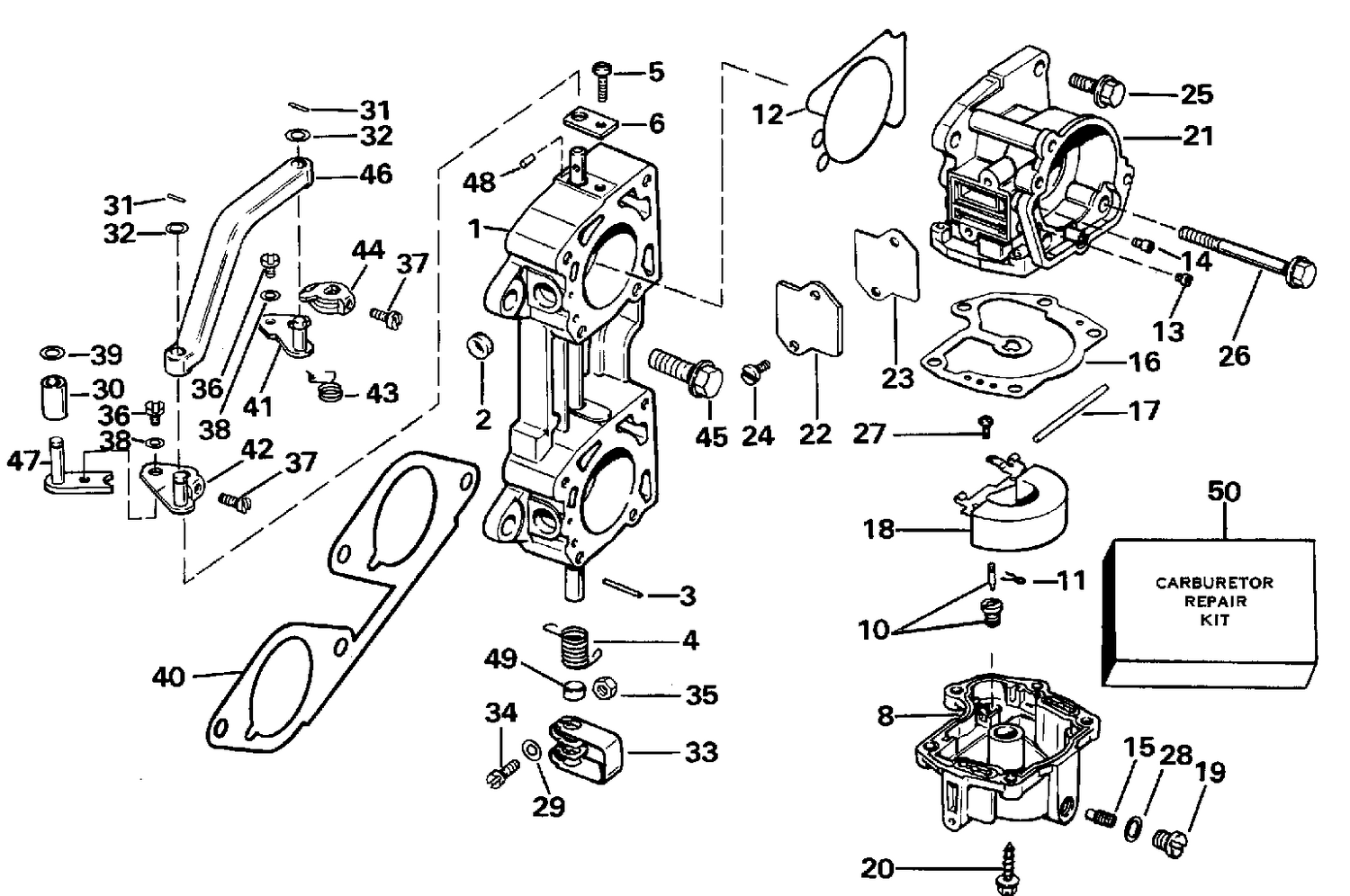

| Ref | Part Number | Description |
|---|
| 1 |
0397581 |
THROTTLE BODY ASSY. |
| 11 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 12 |
0332253 |
REAL,Carb. body, 300 |
| 14 |
0325829 |
HIGH SPEED ORIFICE, No. 42 |
| 21 |
0432512 |
CARB, BODY ASSY. |
| 22 |
0328640 |
COVER PLATE |
| 23 |
0327223 |
GASKET, Cover plate |
| 26 |
0324424 |
SCREW, Carb. body, long |
| 30 |
0330130 |
ROLLER |
| 32 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 33 |
5000533 |
CONNECTOR ASSY., Throttle shaft This part replaces 0327071. |
| 36 |
0306014 |
VIS, ancrage |
| 37 |
0319108 |
SCREW BELCRANK |
| 39 |
0308776 |
O-RING |
| 40 |
0332319 |
GASKET, Carburetor mounting |
| 41 |
0397503 |
LEVER & PIN, Port |
| 42 |
0397504 |
LEVER & PIN, Starboard |
| 43 |
0329526 |
SPRING, Link adjustment |
| 44 |
0329753 |
LEVER PORT |
| 46 |
0435908 |
LINK, Carburetor This part replaces 0329755. |
| 47 |
0391807 |
LEVER & PIN, Cam follower |
| 49 |
0317162 |
BUSHING, Link |
| 0398349 |
0398349 |
CARB ASSY., |
| 0398358 |
0398358 |
CARB. ASSY., Port |
| 0398367 |
0398367 |
CARB ASSY., Stbd. |
