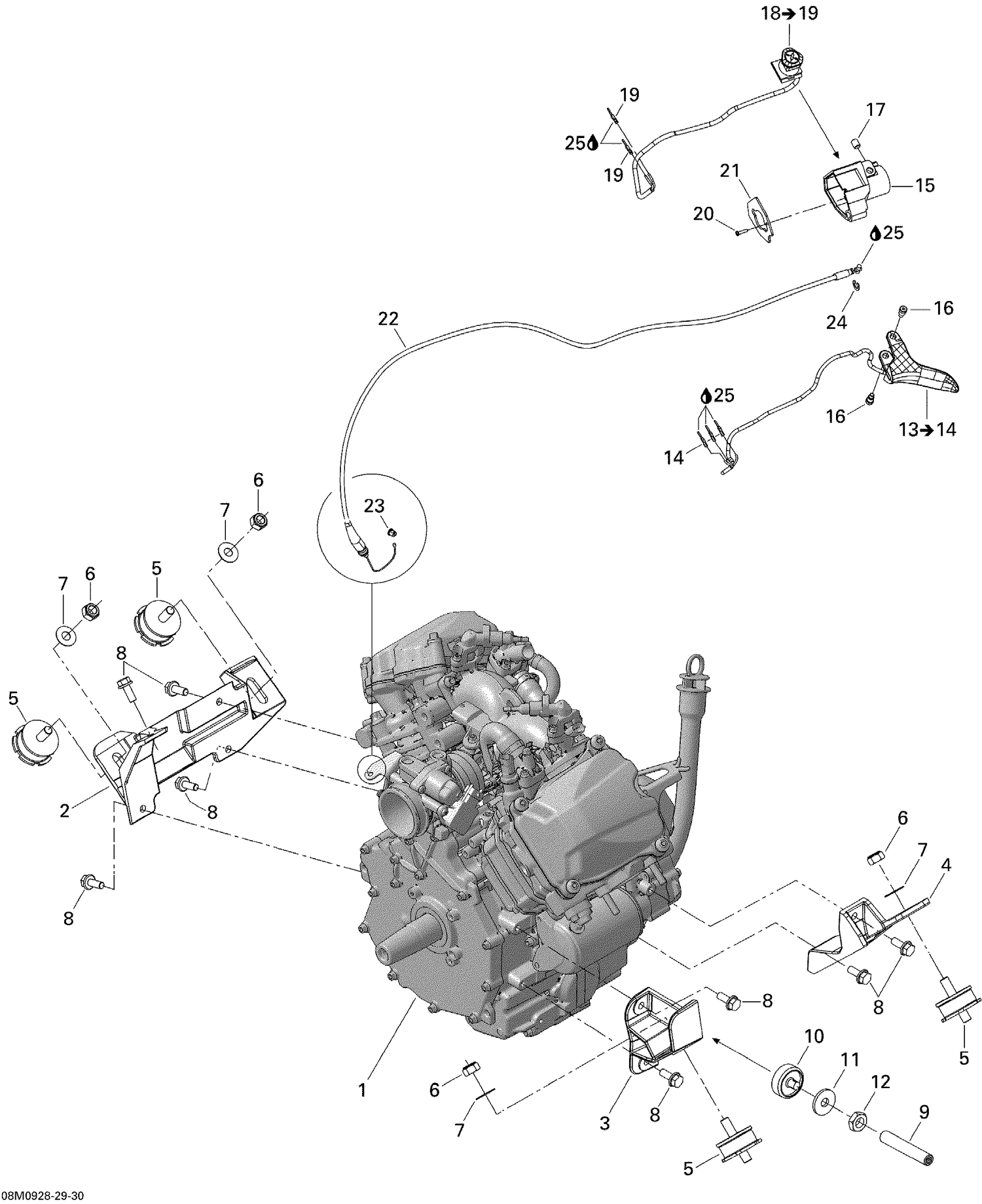

| Ref | Part Number | Description |
|---|
| 1 |
400800319 |
Engine, V-810 4-TEC |
| 2 |
512060076 |
FRONT ENGINE SUPPORT - Call your local BRP dealership |
| 3 |
512060077 |
ENGINE SUPPORT, PTO SIDE - Call your local BRP dealership |
| 4 |
512060078 |
ENGINE SUPPORT, MAGNETO SIDE - Call your local BRP dealership |
| 5 |
512059960 |
RUBBER MOUNT - Call your local BRP dealership |
| 6 |
232500416 |
Elastic Stop Nut M10 |
| 7 |
250200032 |
Washer |
| 8 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 9 |
250500007 |
STOPPER SCREW - Call your local BRP dealership |
| 10 |
512059610 |
STOPPER - Call your local BRP dealership |
| 11 |
512059057 |
WASHER - Call your local BRP dealership |
| 12 |
232170411 |
Hex. Jam Nut M14 |
| 14 |
515175232 |
Male Terminal |
| 15 |
512060603 |
Housing throttle This part replaces 512060200. |
| 16 |
732601143 |
Flanged Screw |
| 17 |
414440800 |
Socket Set Screw M8 X 10 |
| 19 |
515175232 |
Male Terminal |
| 20 |
250000265 |
TORX SCREW M2.9 X 12 - Call your local BRP dealership |
| 21 |
512060390 |
Plate |
| 22 |
512060125 |
THROTTLE CABLE - Call your local BRP dealership |
| 23 |
707000434 |
Cable Guide |
| 24 |
414274500 |
Circlip |
