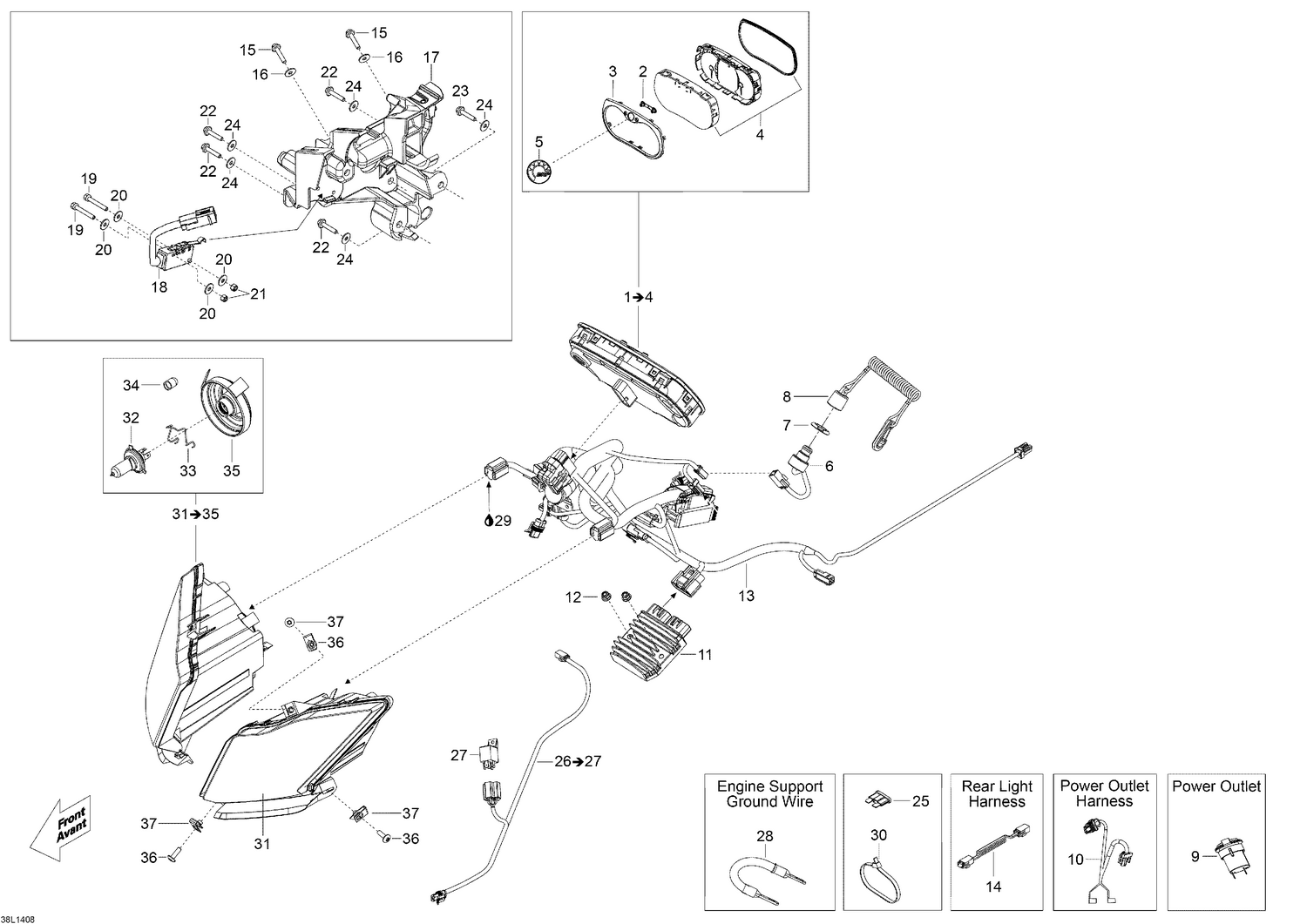

10- Electrical System
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129370 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo, 20MM x 2MM This part replaces 219902677. |
| 6 | 515177249 | Dess Switch |
| 7 | 278002963 | Safety Nut (DESS Switch) |
| 8 | 515178284 | Dess. This part replaces 515177057. |
| 9 | 710001248 | DC Outlet |
| 10 | 515177188 | Harness |
| 11 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 515177126 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 14 | 515177032 | Rear Light Harness |
| 15 | 211000023 | Hex. Screw 10-14 x 7/8 |
| 16 | 234062600 | Flat Washer M6 |
| 17 | 515176866 | PLATE - Call your local BRP dealership |
| 18 | 515176881 | SWITCH ASS'Y - Call your local BRP dealership |
| 19 | 207132044 | Hex. Screw M3 x 20 |
| 20 | 234032600 | Flat Washer M3 |
| 21 | 232531423 | Elastic Stop Nut M3 |
| 22 | 210262040 | Hex. Flanged Screw M6 x 20 |
| 23 | 210262550 | Hex. Flanged Forming Screw M6 X 25 This part replaces 210262580. |
| 24 | 250200039 | Flat Washer |
| 25 | 710000742 | Little Fuse, 5 Ampere |
| 25 | 710000744 | Little Fuse, 10 Ampere |
| 25 | 710000745 | Little Fuse, 15 Ampere |
| 25 | 710000746 | Little Fuse, 20 Ampere |
| 25 | 710000747 | Little Fuse, 30 Amperes |
| 27 | 710010053 | RELAY This part replaces 515177041. |
| 28 | 515177014 | Ground Wire |
| 29 | 619600021 | Loctite 8104 (Dielectric Grease), 75 ml |
| 30 | 293750001 | Tie-Rap 94 mm |
| 30 | 293750002 | Tie-Rap 142 mm |
| 30 | 414115200 | Tie-Rap 180 mm |
| 30 | 605627000 | Tie Rap |
| 32 | 515176274 | Halogen Bulb, 60/55 W, 12 V |
| 33 | Not | Available As Spare Part - Bulb Holder |
| 34 | 515176498 | Cap |
| 35 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 36 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
