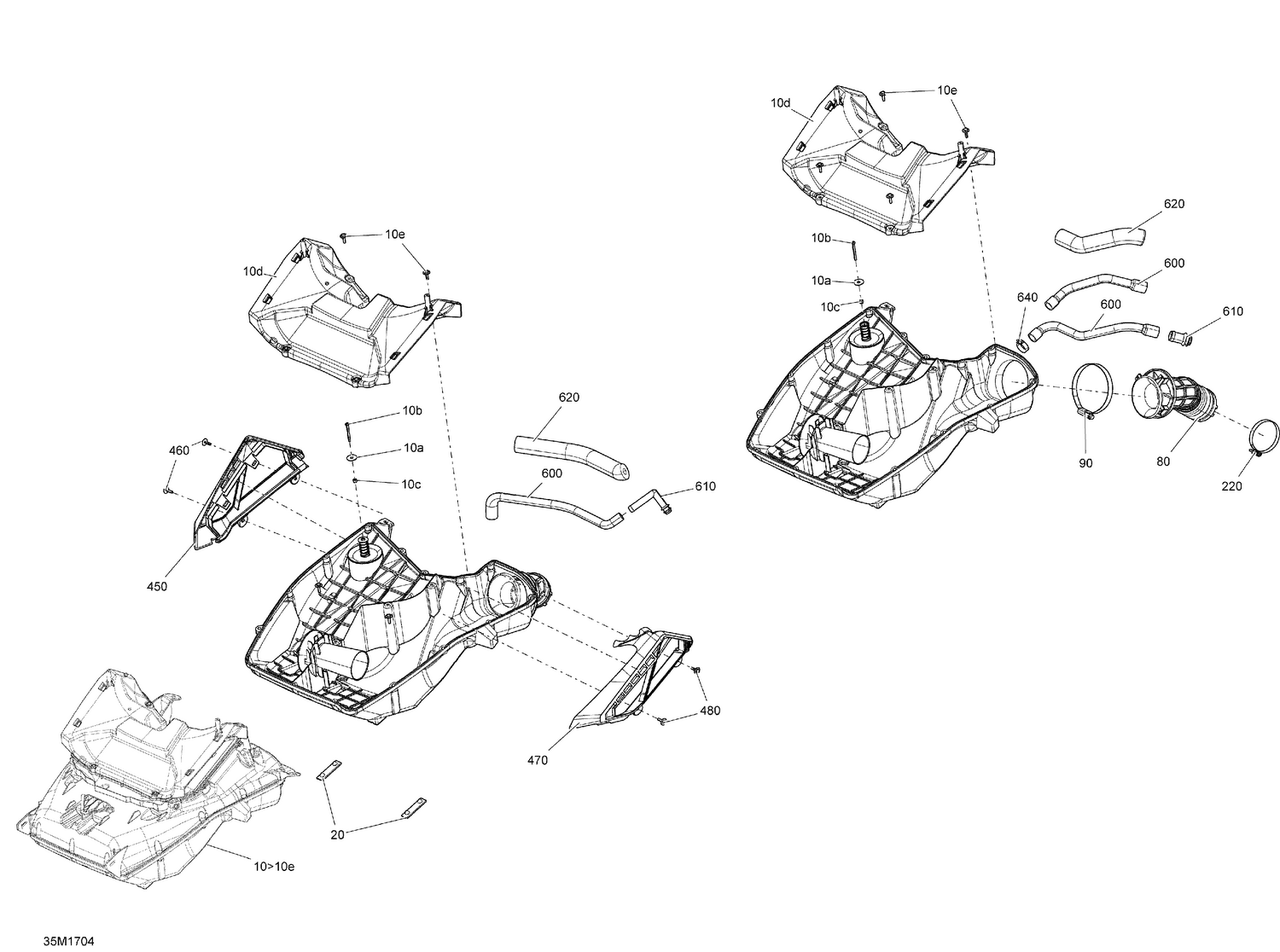

02- Air Intake System - All Models
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 224060201 | Flat Washer |
| 10b | 205444056 | Socket Head Screw M4 X 40 |
| 10c | 232541414 | Elastic Stop Nut M4 |
| 10d | 508000732 | Air Duct |
| 10e | 250000725 | Screw M4 X 16 |
| 20 | 508000744 | Stopper |
| 220 | 293650229 | Gemi Clamp |
| 450 | 508000730 | RH Air Filter |
| 460 | 250000725 | Screw M4 X 16 |
| 470 | 508000731 | LH Air Filter |
| 480 | 250000725 | Screw M4 X 16 |
