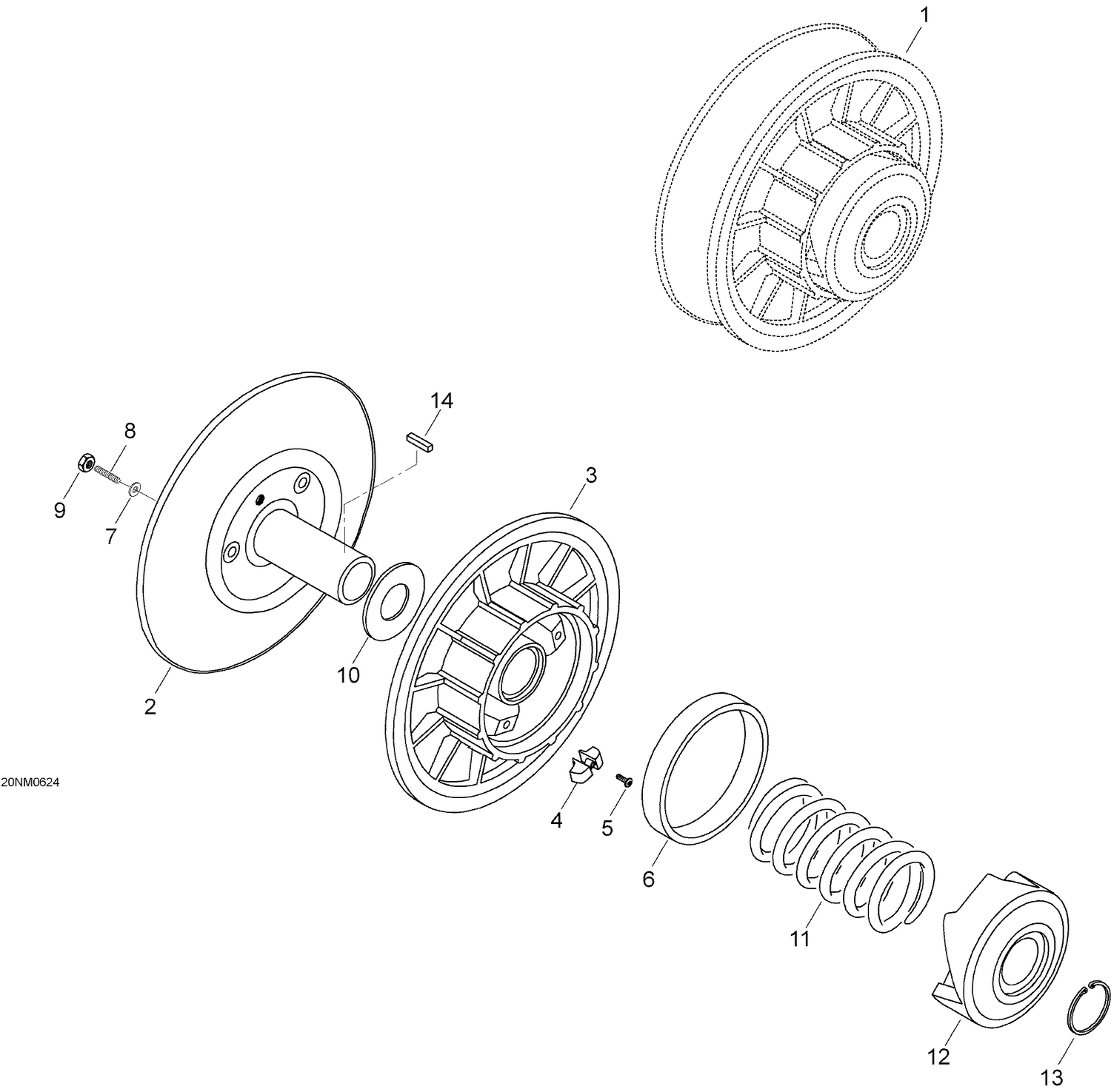

05- Driven pulley
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 140065 | Fixed flange |
| 3 | 140066 | Sliding pulley - Call your local BRP dealership |
| 4 | 140068 | Shoe cam slider |
| 5 | Not | Available As Spare Part - Screw |
| 6 | 140053 | Bushing |
| 7 | 420245370 | WASHER - Call your local BRP dealership |
| 8 | Not | Available As Spare Part - Hex. screw set |
| 9 | 232061414 | Nut |
| 10 | 504099600 | STOPPER WASHER - Call your local BRP dealership |
| 11 | 140069 | Release spring, black |
| 12 | 140067 | Cam 40/30 degr. |
| 13 | 371903100 | CIRCLIP - Call your local BRP dealership |
