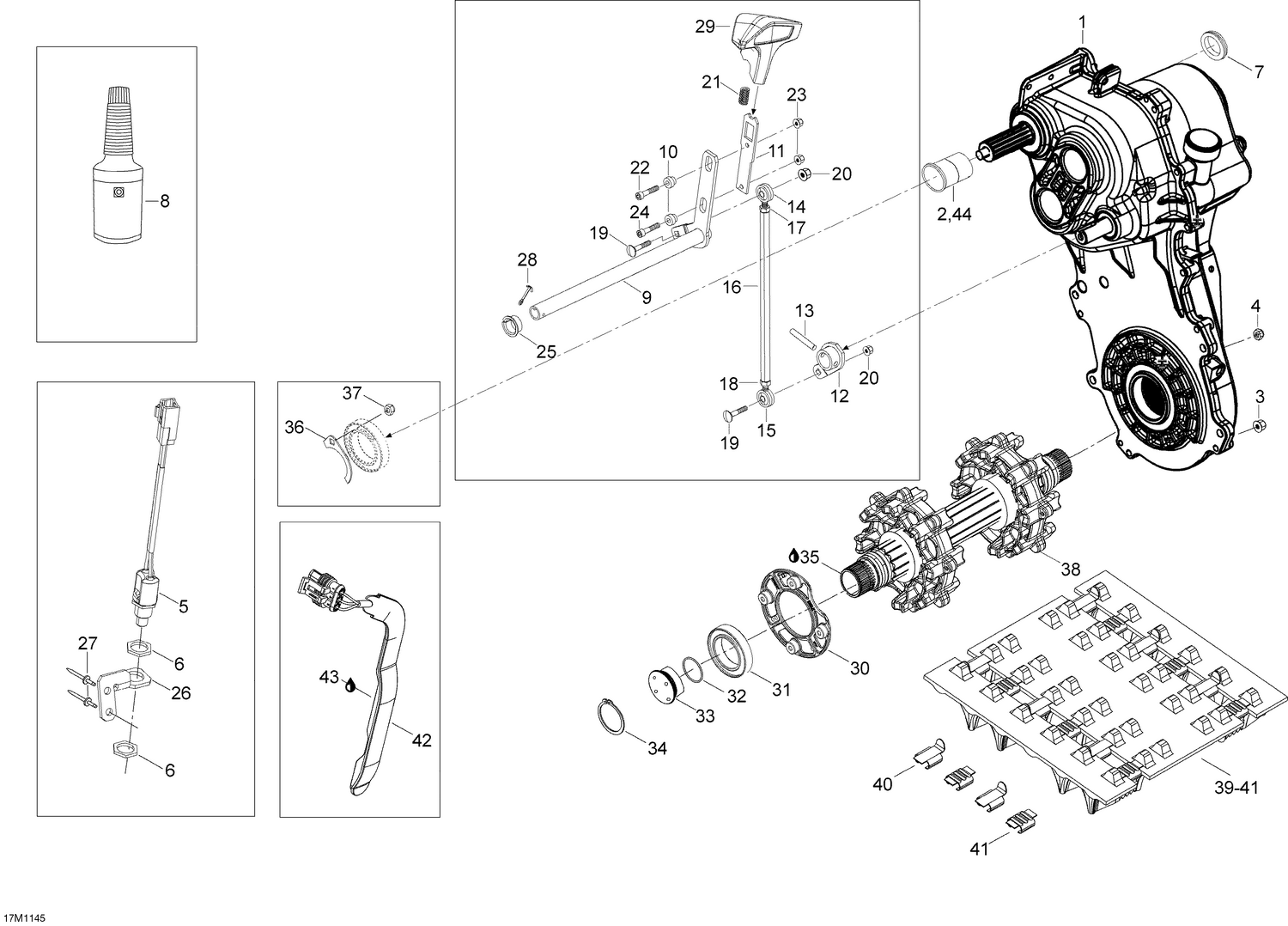

05- Drive System
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 619230078 | Transmission Ass'y (Fast Ratio) This part replaces 504153005. |
| 2 | 504153054 | Protective Rubber |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 |
| 5 | 515176472 | Switch Ass'y |
| 6 | 250000373 | BRASS NUT - Call your local BRP dealership |
| 7 | 504152818 | RUBBER PLUG - Call your local BRP dealership |
| 8 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 9 | 504153288 | Lever Shifter This part replaces 504152887. |
| 10 | 504152787 | Sleeve |
| 11 | 504153287 | Shifter Arm This part replaces 504152831. |
| 12 | 504152834 | WELDED LEVER - Call your local BRP dealership |
| 13 | 41012 | Pin This part replaces M41012. |
| 14 | 707000690 | LH BALL JOINT - Call your local BRP dealership |
| 15 | 707000689 | RH BALL JOINT - Call your local BRP dealership |
| 16 | 504152836 | ROD - Call your local BRP dealership |
| 17 | 232066414 | LH HEX. NUT M6 - Call your local BRP dealership |
| 18 | 232061414 | Hex. Nut M6 |
| 19 | 207762044 | Carriage Bolt M6 X 20 |
| 20 | 232561414 | Elastic Stop Nut M6 |
| 21 | 504152882 | Spring |
| 22 | 205052544 | Socket Screw M5 X 25 |
| 23 | 233251434 | Flange Elastic Nut M5 |
| 24 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 25 | 504152890 | Bushing |
| 26 | 504152902 | Sensor Bracket |
| 27 | 293150163 | Rivet Hucklok |
| 28 | 250400035 | Cotter Pin |
| 29 | 504152837 | Handle |
| 30 | 504153099 | BEARING HOUSING - Call your local BRP dealership |
| 31 | 293350059 | Ball Bearing |
| 32 | 293300122 | O-Ring |
| 33 | 504152619 | Magnetic Cap |
| 34 | 504152572 | Circlip |
| 35 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 36 | 504153099 | BEARING HOUSING - Call your local BRP dealership |
| 37 | 232581414 | Hex. Elastic Stop Nut M8 |
| 38 | 504153976 | Drive Axle Ass'y This part replaces 504152911. |
| 39 | 605613004 | Track |
| 40 | M5318323 | CLEAT-GUIDE - Call your local BRP dealership |
| 41 | M5318322 | CLEAT - Call your local BRP dealership |
| 42 | 504152896 | Rotation Sensor |
| 43 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml |
