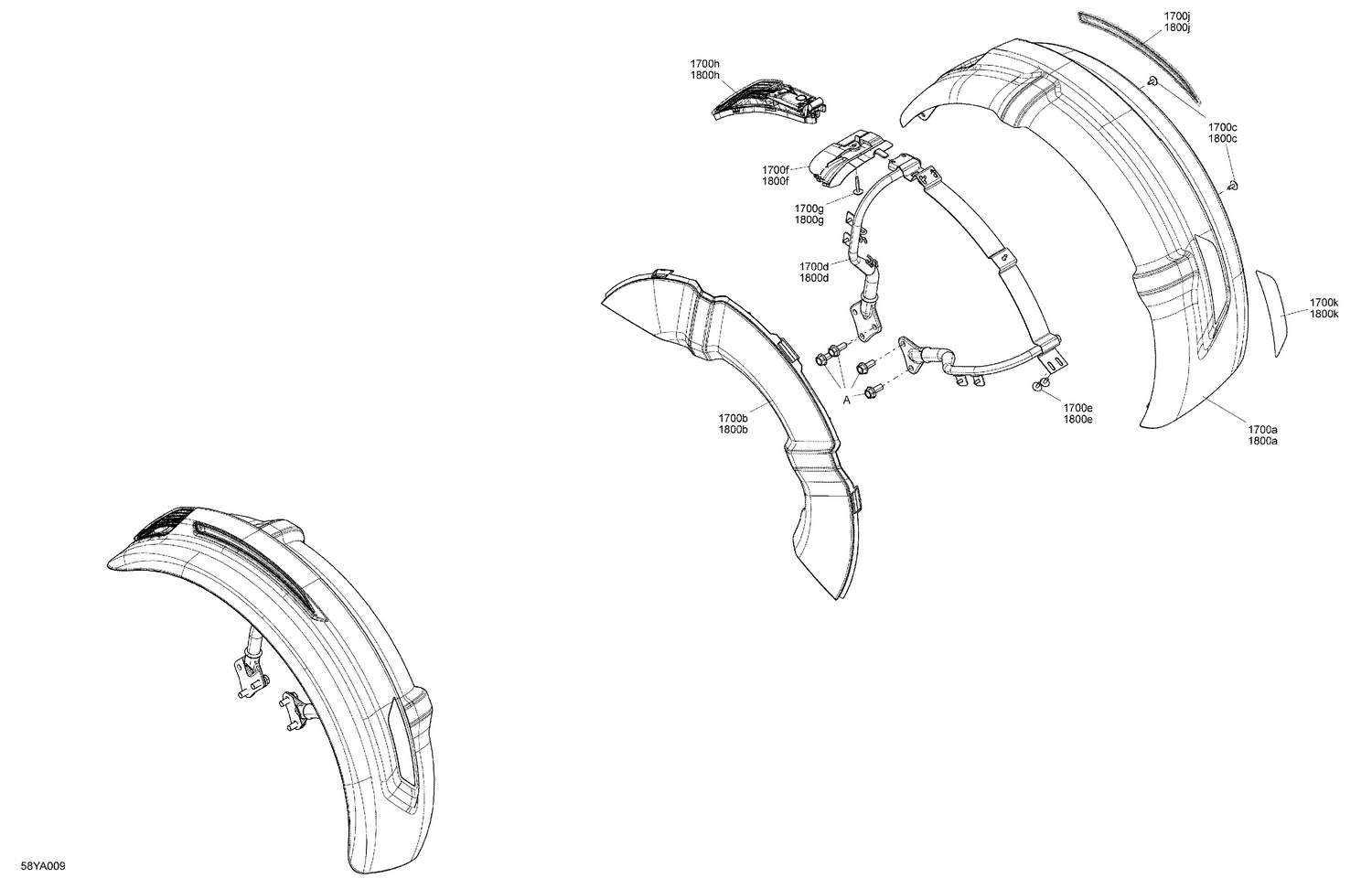

07- Body - Front Fender
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| A | 207582054 | Hex Screw Washer Head M8 X 20 |
| 1700a | 705013329 | Asphalt Grey, LH Front Fender |
| 1700b | 705012975 | LH Inner Fender |
| 1700c | 250000805 | Plastite Screw M4 X 10 |
| 1700d | 705013519 | LH Front Fender Support Ass'y |
| 1700e | 250000805 | Plastite Screw M4 X 10 |
| 1700f | 705013499 | LH Light Protector |
| 1700g | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 1700h | 710007008 | LH Front Position Light |
| 1700j | 705012404 | Yellow, LH Reflector |
| 1700k | 705014736 | Red, Rear Reflector |
| 1800a | 705013563 | Asphalt Grey, RH Front Fender |
| 1800b | 705012867 | RH Inner Fender |
| 1800c | 250000805 | Plastite Screw M4 X 10 |
| 1800d | 705012981 | RH Front Fender Support Ass'y |
| 1800e | 250000805 | Plastite Screw M4 X 10 |
| 1800f | 705013530 | RH Light Protector |
| 1800g | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 1800h | 710007009 | RH Front Position Light |
| 1800j | 705012405 | Yellow, RH Reflector |
