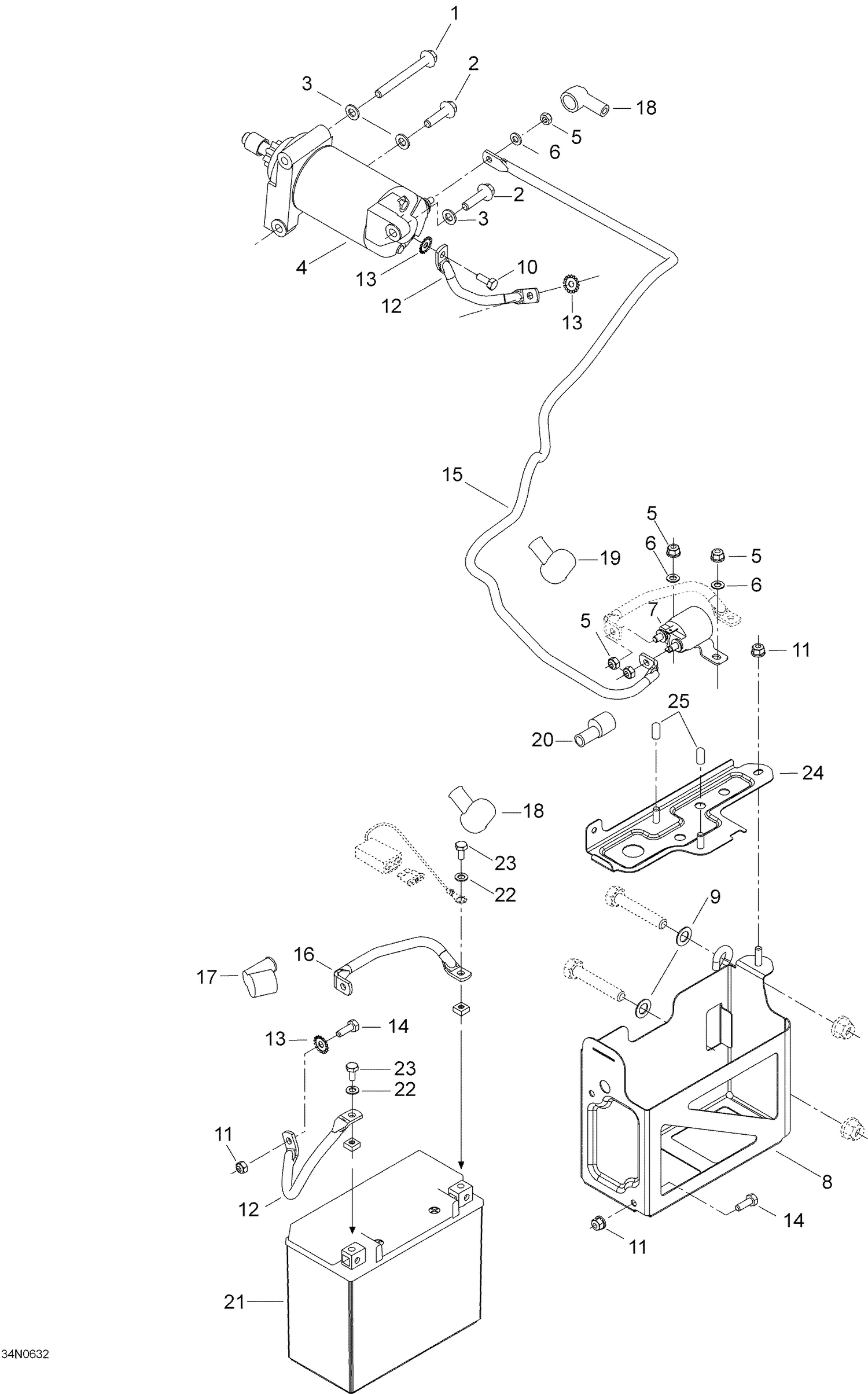

10- Electrical System 2
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207587544 | Hex. Flange Screw M8 X 75, Scotch Grip |
| 2 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 3 | 250200008 | Flat Washer With Teflon 8 mm |
| 4 | 515176133 | Electric start This part replaces 515176003. |
| 5 | 33010 | Lock Nut M6 (1=10Pcs) |
| 6 | 20003 | Washer A6,4 |
| 7 | 515176011 | Relay-starter |
| 8 | 515176230 | Battery support |
| 9 | 605620000 | Washer A10,5 |
| 10 | 207361644 | Screw |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 12 | 515175749 | Ground wire |
| 13 | 20017 | Lock washer serrated M6 |
| 14 | 40030 | Screw M6 x 20 |
| 15 | 515175904 | Battery wire |
| 16 | 515175905 | BATTERY WIRE - Call your local BRP dealership |
| 17 | 570151000 | Protector cap |
| 18 | 278001771 | PROTECTOR CAP - Call your local BRP dealership |
| 19 | 570064200 | PROTECTION CAP - Call your local BRP dealership |
| 20 | 515175919 | Cap |
| 22 | 391302100 | FLAT WASHER - Call your local BRP dealership |
| 23 | 207161644 | Screw M6x16 |
| 24 | 515175735 | BATTERY STRIP - Call your local BRP dealership |
