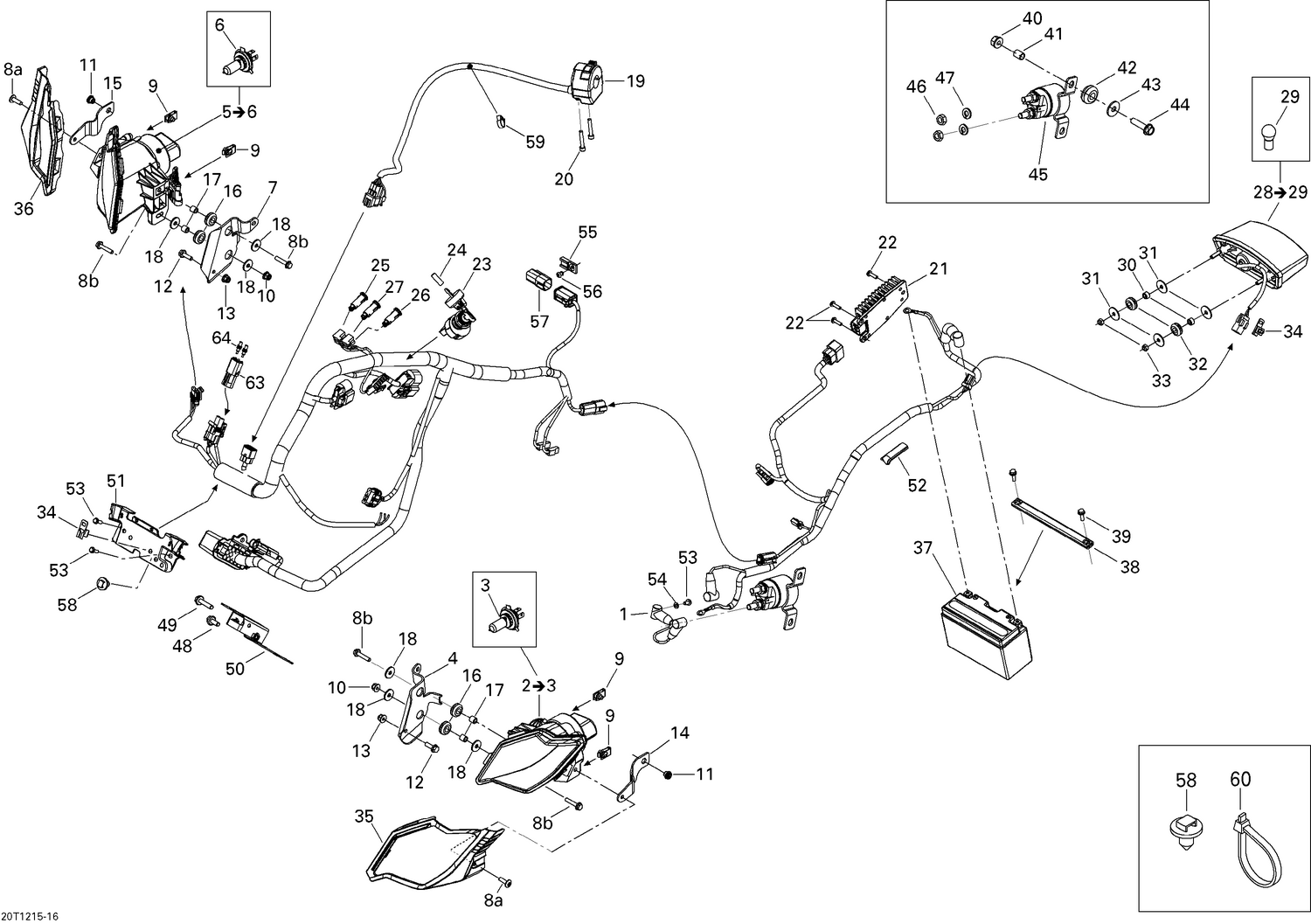

10- Electrical System
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710002429 | Harness |
| 3 | 710000871 | Bulb, 12V 35/35W |
| 4 | 710001763 | LH FRONT SUPPORT - Call your local BRP dealership |
| 6 | 710000871 | Bulb, 12V 35/35W |
| 7 | 710001764 | RH FRONT SUPPORT - Call your local BRP dealership |
| 8a | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 8b | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 9 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 10 | 233261434 | Flange Elastic Nut M6 |
| 11 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 12 | 207662034 | Hex. Flange Screw M6 X 20 |
| 13 | 233261434 | Flange Elastic Nut M6 |
| 14 | 710001519 | LH SUPPORT - Call your local BRP dealership |
| 15 | 710001520 | RH SUPPORT - Call your local BRP dealership |
| 16 | 709000582 | Grommet This part replaces 293720053. |
| 17 | 293900105 | Bushing |
| 18 | 224061201 | Flat Washer |
| 19 | 710001762 | Inter.Multi.Fon*Switch-M.Fuct. This part replaces 710000975. |
| 20 | 205053088 | SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership |
| 21 | 710000803 | Rectifier |
| 22 | 207551634 | Hex. Flange Screw, Scotch Grip |
| 24 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 25 | 710002527 | PILOT LAMP - Call your local BRP dealership This part replaces 710001010. |
| 26 | 710002526 | PILOT LAMP - Call your local BRP dealership |
| 27 | 710001012 | PILOT LAMP, NEUTRAL - Call your local BRP dealership |
| 29 | 520000758 | Bulb |
| 30 | 293900089 | SPACER - Call your local BRP dealership |
| 31 | 250200099 | FLAT WASHER - Call your local BRP dealership |
| 32 | 709000582 | Grommet This part replaces 293720053. |
| 33 | 232561434 | Elastic Stop Nut M6 |
| 34 | 515175283 | Housing Support |
| 35 | 710001310 | PROTECTOR - Call your local BRP dealership |
| 36 | 710001311 | PROTECTOR - Call your local BRP dealership |
| 37 | 715500305 | Battery YUASA YT7B-BS |
| 38 | 710002266 | BATTERY SUPPORT - Call your local BRP dealership |
| 39 | 207662034 | Hex. Flange Screw M6 X 20 |
| 40 | 233261494 | Hex. Flange Elastic Nut M6 |
| 41 | 707000065 | Spacer |
| 42 | 414036300 | Grommet |
| 43 | 234062670 | Stainless Steel Flat Washer |
| 44 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 45 | 710007777 | Starter Relay This part replaces 710001364. |
| 46 | 232061600 | Hex. Nut M6 |
| 47 | 234161601 | Lock Washer Helical M6 |
| 48 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 49 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 50 | 710002614 | Bracket |
| 51 | 710001074 | Housing Support |
| 52 | 219704364 | Neoprene Seal (1PAC=3M) |
| 53 | 207551034 | SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership |
| 53 | 207551634 | Hex. Flange Screw, Scotch Grip |
| 54 | 234051430 | Flat Washer |
| 55 | 270000141 | Clip |
| 56 | 390909200 | Avex Rivet |
| 57 | 278002704 | Diagnostic Connector This part replaces 278002148. |
| 58 | 293730040 | Mount Dart This part replaces 293730018. |
| 59 | 293650082 | Clamp |
| 60 | 293750002 | Tie Wrap 142 mm |
| 60 | 293750008 | Tie Wrap 368 mm |
| 60 | 293750041 | Tie-rap 627 mm |
| 60 | 414115200 | Tie-Rap 180 mm |
