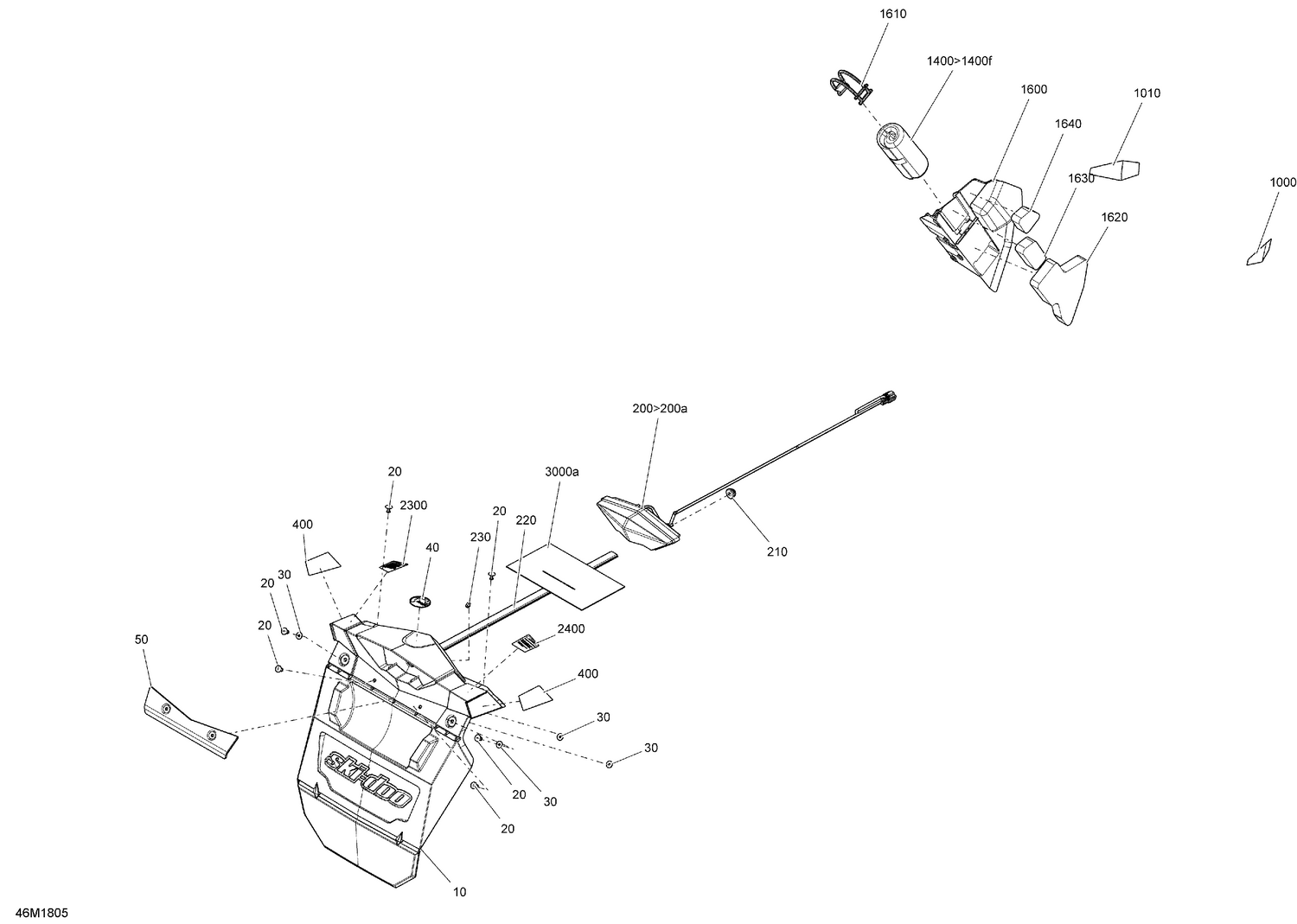

09- Utilities Summit - 600 CARB
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520000784 | Snow Guard |
| 20 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 30 | 517124300 | Washer |
| 40 | 516008738 | BRP Logo 48mm |
| 50 | 520000751 | Reinforcement |
| 200a | 520000758 | Bulb |
| 210 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 220 | 520000829 | Radiator Trim |
| 230 | 293750002 | Tie Wrap 142 mm |
| 400 | 520001161 | Red, LH Rear Reflector |
| 400 | 520001162 | Red, RH Rear Reflector |
| 1000 | 520000718 | Yellow, RH Front Reflector |
| 1010 | 520000719 | Yellow, LH Front Reflector |
| 1400a | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 1400b | 529000046 | Set Key, 16/21 mm |
| 1400c | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 1400d | 529017500 | Rope Starter |
| 1400e | 529000060 | Starter Grip |
| 1400f | 520001499 | Wrench |
| 1600 | 520000842 | Tool Kit Rack |
| 1610 | 520000528 | Latch |
| 1620 | 520001059 | Foam |
| 1630 | 520001061 | Foam |
| 1640 | 520001062 | Foam |
| 2300 | 516006910 | Safety Label |
| 2400 | 516005591 | Warning Decal, Cargo |
