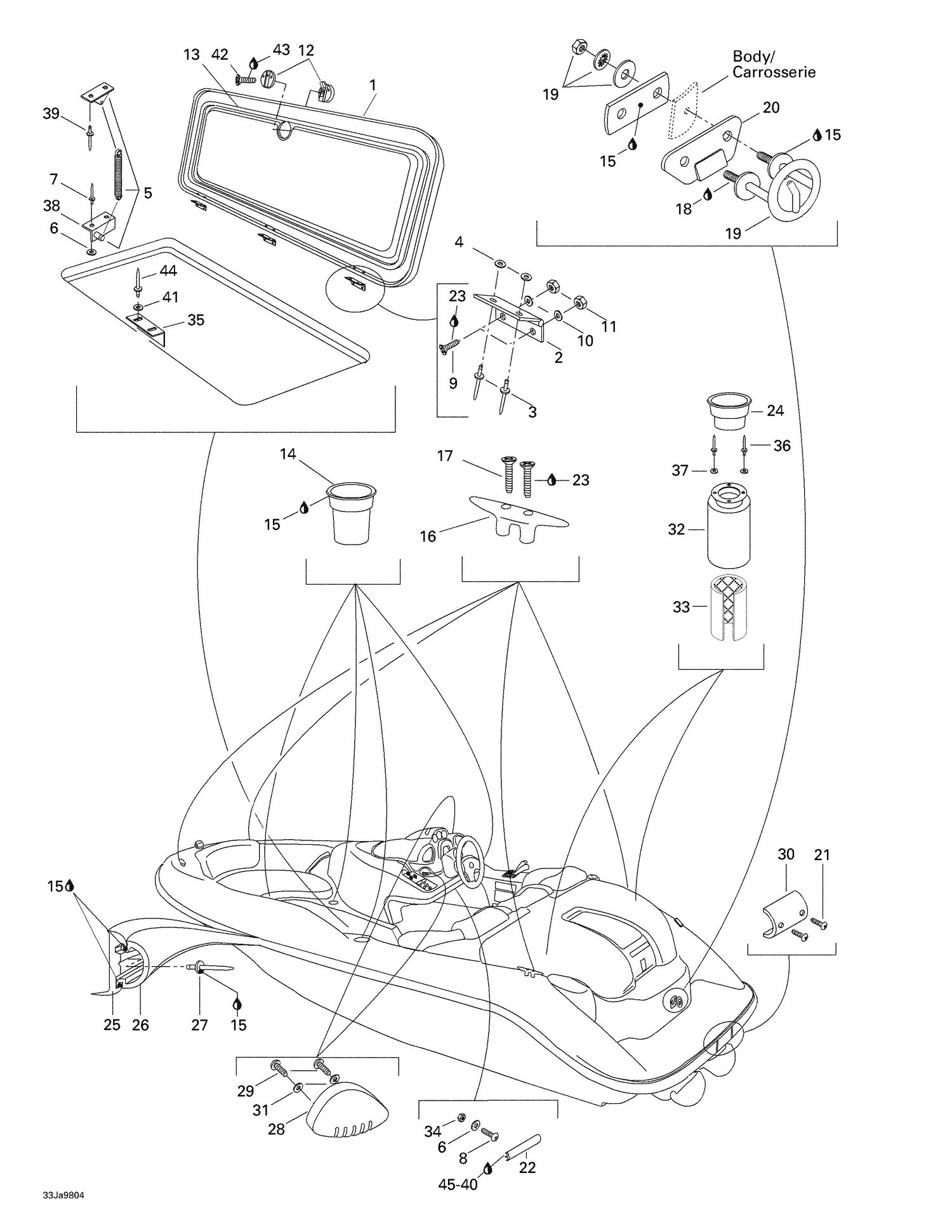

| Ref | Part Number | Description |
|---|
| 1 |
291000737 |
Central Cover |
| 2 |
204072601 |
HINGE - Call your local BRP dealership This part replaces 291000538. |
| 3 |
293150039 |
Pop Rivet 3/16" |
| 4 |
234051600 |
Flat Washer M5, Stainless This part replaces 211200038. |
| 5 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 6 |
234052600 |
Flat Washer 5 mm, Stainless This part replaces 213200015. |
| 7 |
293150039 |
Pop Rivet 3/16" |
| 8 |
216152560 |
Screw M5 x 25 |
| 9 |
216142060 |
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership |
| 10 |
234040600 |
Flat Washer 4 mm This part replaces 213200010. |
| 11 |
232541600 |
Elastic Stop Nut M4 This part replaces 218041600. |
| 12 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 13 |
219704368 |
Seal Tray 1000Mm Long |
| 14 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 15 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 16 |
204070100 |
CLEAT - Call your local BRP dealership |
| 17 |
211000135 |
Screw M6 x 55 |
| 18 |
293800005 |
Loctite 271, 10 ml |
| 19 |
204070206 |
Ski Tow Hook |
| 20 |
204070054 |
Ski Tow Plate, Black |
| 21 |
209943260 |
Phillips Tapping Screw M4.2 X 32 This part replaces 211000072. |
| 22 |
204050042 |
TRIM, WHITE - Call your local BRP dealership |
| 23 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 24 |
291000914 |
Cup Holder |
| 25 |
204050006 |
Bumper extrusion (U-Marine) |
| 26 |
204050007 |
Bumper Moulding (U-Marine) |
| 27 |
293150013 |
Pop Rivet 3/16" |
| 28 |
204070027 |
Ventilation Grille |
| 29 |
241642060 |
Flange Screw K40 X 20 This part replaces 211000038. |
| 30 |
204050008 |
Bumper Cover |
| 31 |
234042600 |
Flat Washer 4 mm, Stainless This part replaces 217042600. |
| 32 |
204050004 |
Rear Hose Vent |
| 33 |
291000400 |
Sound Damping |
| 34 |
232551600 |
Hex. Elastic Nut M5 This part replaces 212000004. |
| 35 |
204070060 |
KEEPER - Call your local BRP dealership |
| 36 |
293150014 |
Pop Rivet 3/16" |
| 37 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
| 38 |
291000719 |
Spring Bracket |
| 39 |
293150026 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 40 |
Not |
Available As Spare Part - Primer-Loctite |
| 41 |
234051600 |
Flat Washer M5, Stainless This part replaces 211200038. |
| 42 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership This part replaces 215851668. |
| 43 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 44 |
293150039 |
Pop Rivet 3/16" |
