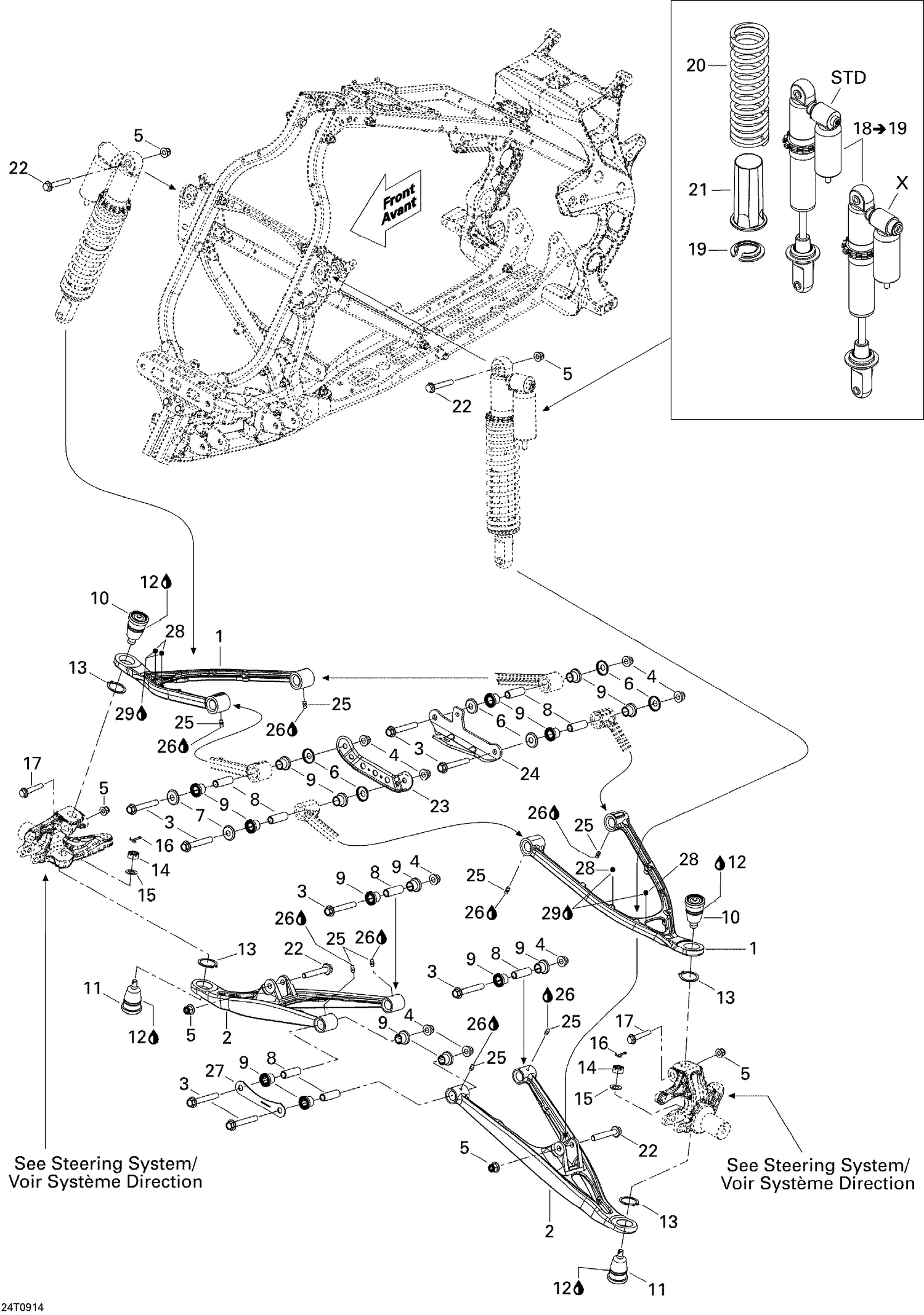

| Ref | Part Number | Description |
|---|
| 1 |
706200454 |
UPPER ARM - Call your local BRP dealership |
| 2 |
706200456 |
LOWER ARM - Call your local BRP dealership |
| 3 |
207607036 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 4 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 5 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 6 |
706200479 |
WASHER - Call your local BRP dealership |
| 7 |
234002600 |
Flat Washer 10 mm, Stainless |
| 8 |
706201587 |
Sleeve This part replaces 706200678. |
| 9 |
706200181 |
Bushing |
| 10 |
706200462 |
UPPER BALL JOINT - Call your local BRP dealership |
| 11 |
706200461 |
LOWER BALL JOINT - Call your local BRP dealership |
| 12 |
413703100 |
Loctite 609, 10 ml |
| 13 |
293370009 |
Circlip 32 mm |
| 14 |
250100094 |
CASTLE NUT - Call your local BRP dealership |
| 15 |
250200084 |
Flat Washer |
| 16 |
250400035 |
Cotter Pin |
| 17 |
207605534 |
Hex. Flange Screw |
| 19 |
706200481 |
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership |
| 20 |
706000528 |
SPRING STOPPER - Call your local BRP dealership |
| 21 |
706200645 |
ROD PROTECTOR - Call your local BRP dealership |
| 22 |
207606534 |
HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership |
| 23 |
706200532 |
FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership |
| 24 |
709400679 |
FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership |
| 25 |
250000315 |
Grease Fitting |
| 26 |
293550010 |
Synthetic Grease, 400 G |
| 27 |
706200722 |
Front Suspension Lower Plate |
| 28 |
206260699 |
Socket Set Screw M6 X 6 |
