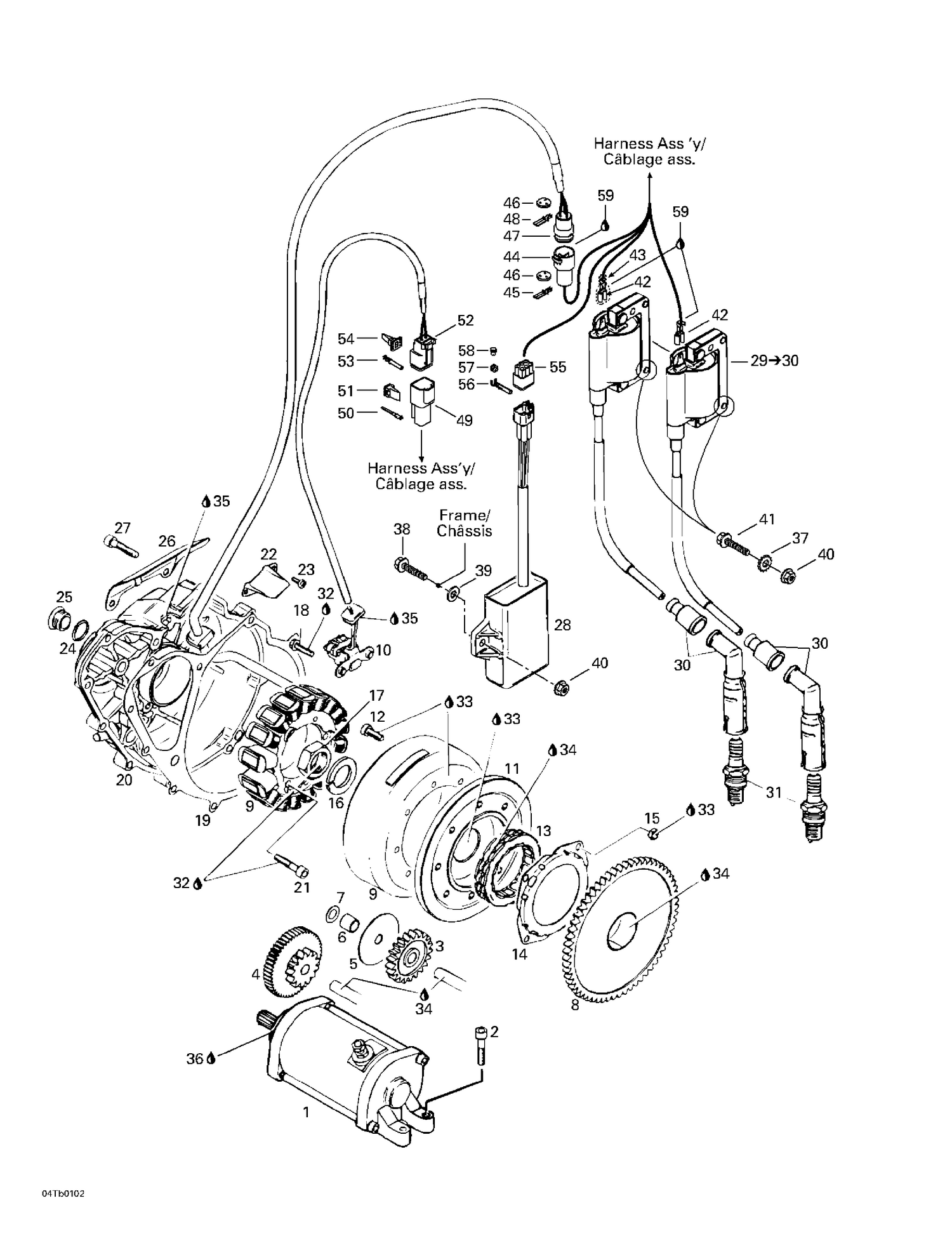

| Ref | Part Number | Description |
|---|
| 1 |
293300103 |
O-Ring For Starter (Not Illustrated) |
| 1 |
420294354 |
STARTER BRUSH KIT - Call your local BRP dealership |
| 1 |
711294351 |
Electric Starter |
| 2 |
205063044 |
Socket Head Screw M6 X 30 |
| 3 |
711234655 |
Intermediate Gear (24 Teeth) |
| 4 |
420234756 |
Intermediate Gear, 11/52 Teeth This part replaces 711234756. |
| 5 |
711627080 |
Thrust Washer |
| 6 |
711247785 |
Spacer |
| 7 |
420827590 |
Thrust Washer This part replaces 711827590. |
| 8 |
711634317 |
Starting Gear (61 Teeth) |
| 9 |
711295172 |
MAGNETO ASS'Y 12V/280W - Call your local BRP dealership |
| 10 |
711265153 |
PICKUP ASS'Y - Call your local BRP dealership |
| 11 |
420264577 |
FLYWHEEL ROTOR HUB - Call your local BRP dealership This part replaces 711264577. |
| 12 |
420640980 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership This part replaces 711640980. |
| 13 |
420958857 |
Sprag Clutch This part replaces 711958857. |
| 14 |
711259192 |
Housing-Clutch Sprag |
| 15 |
711242031 |
Nut BM6 |
| 16 |
420945759 |
Lock Washer, 22 mm |
| 17 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 18 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 19 |
711250920 |
Gasket |
| 20 |
711211291 |
Ignition Cover |
| 21 |
711241810 |
Socket Head Screw M6 x 35 |
| 22 |
420251889 |
Interior Cable Support Ass'y This part replaces 711251880. |
| 23 |
420240196 |
Phillips Screw M4 X 8 This part replaces 290240195. |
| 24 |
420250890 |
O-Ring This part replaces 290250890. |
| 25 |
420241801 |
Drain Plug This part replaces 290241801. |
| 26 |
711251990 |
Cable External Cover |
| 27 |
205063044 |
Socket Head Screw M6 X 30 |
| 28 |
711265368 |
AMPLIFIER BOX - Call your local BRP dealership |
| 30 |
420665010 |
SPARK PLUG CAP - Call your local BRP dealership This part replaces 711665010. |
| 31 |
707000008 |
Spark Plug NGK DR8EA |
| 32 |
293800060 |
Loctite 243, 10 ml |
| 33 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 34 |
Not |
Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 |
| 35 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
| 36 |
219704464 |
Was 420297616 Klueber Grease, 60g |
| 37 |
250200041 |
Lock Washer Serrated M6 This part replaces 250200000. |
| 38 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 39 |
224061201 |
Flat Washer |
| 40 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 41 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 42 |
710000114 |
FEMALE TERMINAL - Call your local BRP dealership |
| 43 |
710000115 |
Rubber Envelope Terminal |
| 44 |
409207900 |
MALE HOUSING - Call your local BRP dealership |
| 45 |
409011100 |
MALE TERMINAL - Call your local BRP dealership |
| 46 |
409208500 |
SEAL - Call your local BRP dealership |
| 47 |
409208200 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 48 |
409011900 |
FEMALE TERMINAL - Call your local BRP dealership |
| 49 |
409206900 |
Male Housing, 2 Circuits |
| 50 |
278000631 |
Male Terminal |
| 51 |
409207500 |
Male Lock, 2 Circuits |
| 52 |
409207300 |
Female Connector, 2 Circuits |
| 53 |
278000632 |
Female Terminal |
| 54 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 55 |
710000081 |
Female Housing, 6 Circuits |
| 56 |
409012100 |
Female Terminal |
| 57 |
409012300 |
Seal |
| 58 |
710000080 |
Cap |
