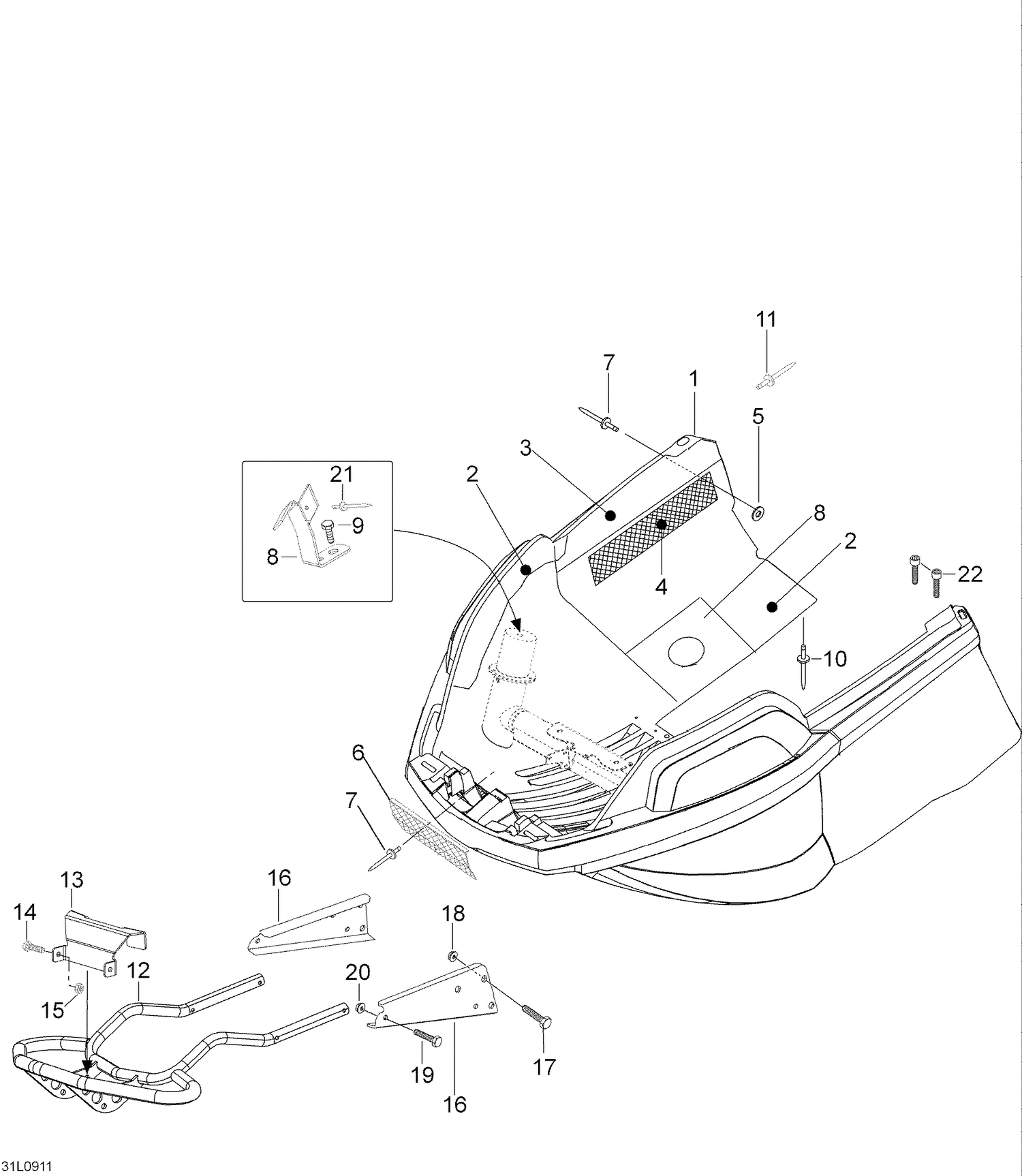

| Ref | Part Number | Description |
|---|
| 2 |
619690002 |
ISOLATION SHEET - Call your local BRP dealership This part replaces 619690001. |
| 3 |
605354966 |
HEAT DEFLECTOR - Call your local BRP dealership |
| 4 |
605354968 |
RH SIDE GRILL - Call your local BRP dealership |
| 4 |
605354969 |
LH SIDE GRILL - Call your local BRP dealership |
| 5 |
20008 |
Washer A5,3 |
| 6 |
605255513 |
FRONT GRILL - Call your local BRP dealership |
| 7 |
36009 |
Rivet |
| 8 |
605354709 |
LH BRACKET - Call your local BRP dealership |
| 8 |
605354710 |
RH BRACKET - Call your local BRP dealership |
| 9 |
40401 |
Hex. screw M6 x 10 |
| 10 |
36037 |
Rivet |
| 11 |
36087 |
Rivet |
| 12 |
605155851 |
Bumper |
| 13 |
605355848 |
Bracket, bumper |
| 14 |
40037 |
Screw M8 x 25 |
| 15 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 16 |
605355113 |
LH BUMPER PLATE - Call your local BRP dealership |
| 16 |
605355114 |
RH BUMPER PLATE - Call your local BRP dealership |
| 17 |
40002 |
Hex. screw M6 x 40 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 19 |
40036 |
Hex. screw M8 x 20 |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 21 |
36108 |
Rivet |
