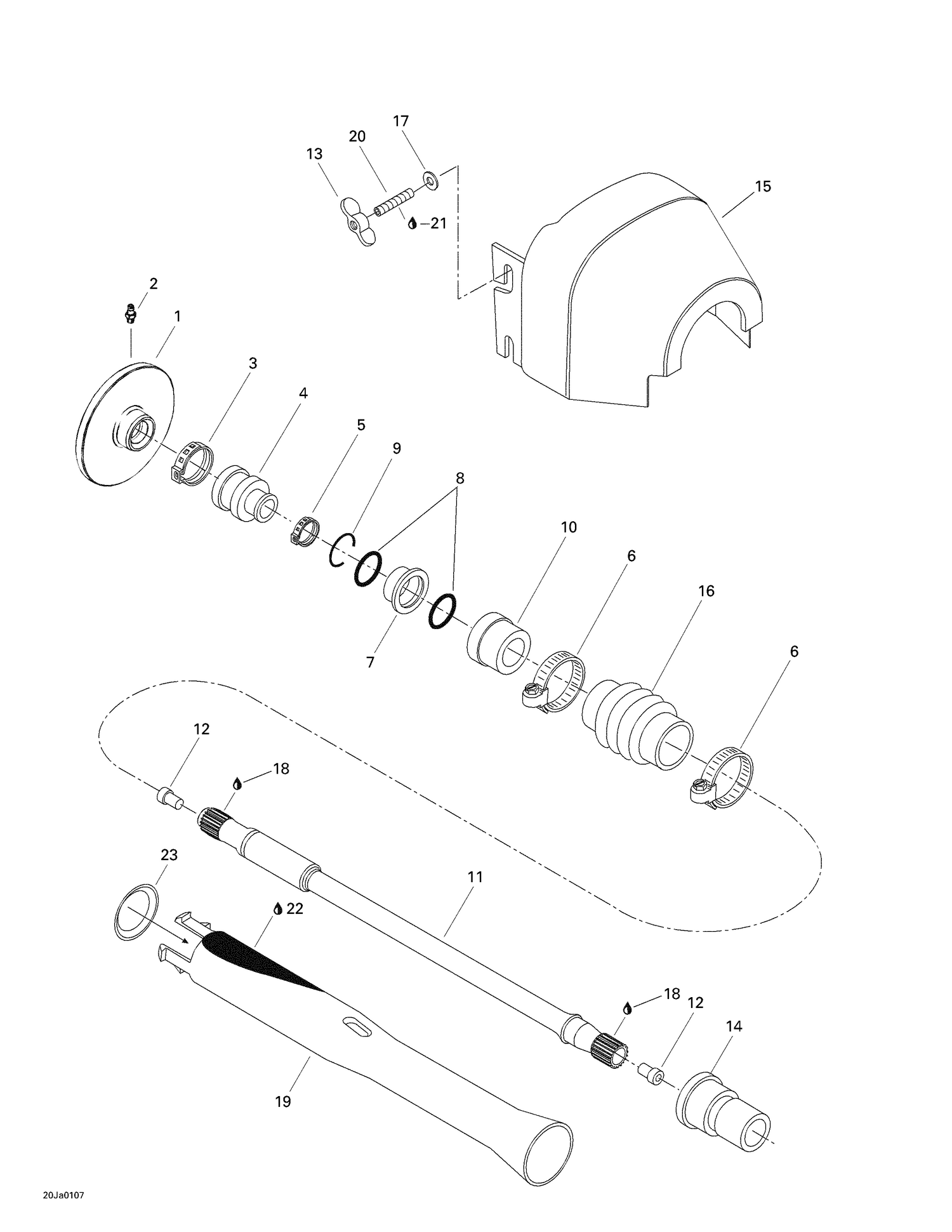

05- Drive System
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 290499113 | GREASE FITTING - Call your local BRP dealership |
| 3 | 293650021 | OETIKER CLAMP - Call your local BRP dealership |
| 4 | 272000001 | RUBBER BOOT - Call your local BRP dealership |
| 5 | 293650067 | OETIKER CLAMP - Call your local BRP dealership |
| 6 | 293650075 | Norma Clamp |
| 7 | 272000064 | Support Ring |
| 8 | 293300032 | O-Ring |
| 9 | 272000135 | C-CLIP - Call your local BRP dealership |
| 10 | 272000770 | Carbon Ring |
| 11 | 272000073 | Drive Shaft |
| 12 | 272000019 | DRIVE SHAFT PLUG - Call your local BRP dealership |
| 13 | 232681100 | Wing Nut M8 |
| 14 | 292000075 | HULL INSERT, 33 MM - Call your local BRP dealership |
| 15 | 204120117 | Flywheel Guard |
| 16 | 272000184 | BELLOWS - Call your local BRP dealership This part replaces 272000167. |
| 17 | 234082600 | Flat Washer 8 mm, Stainless |
| 18 | 293550010 | Synthetic Grease, 400 G |
| 19 | 204120131 | Shaft Protector |
| 20 | 211300013 | Stud M8 x 15 |
| 21 | 293800005 | Loctite 271, 10 ml |
| 22 | 219701421 | Instant Gasket This part replaces 293800053. |
