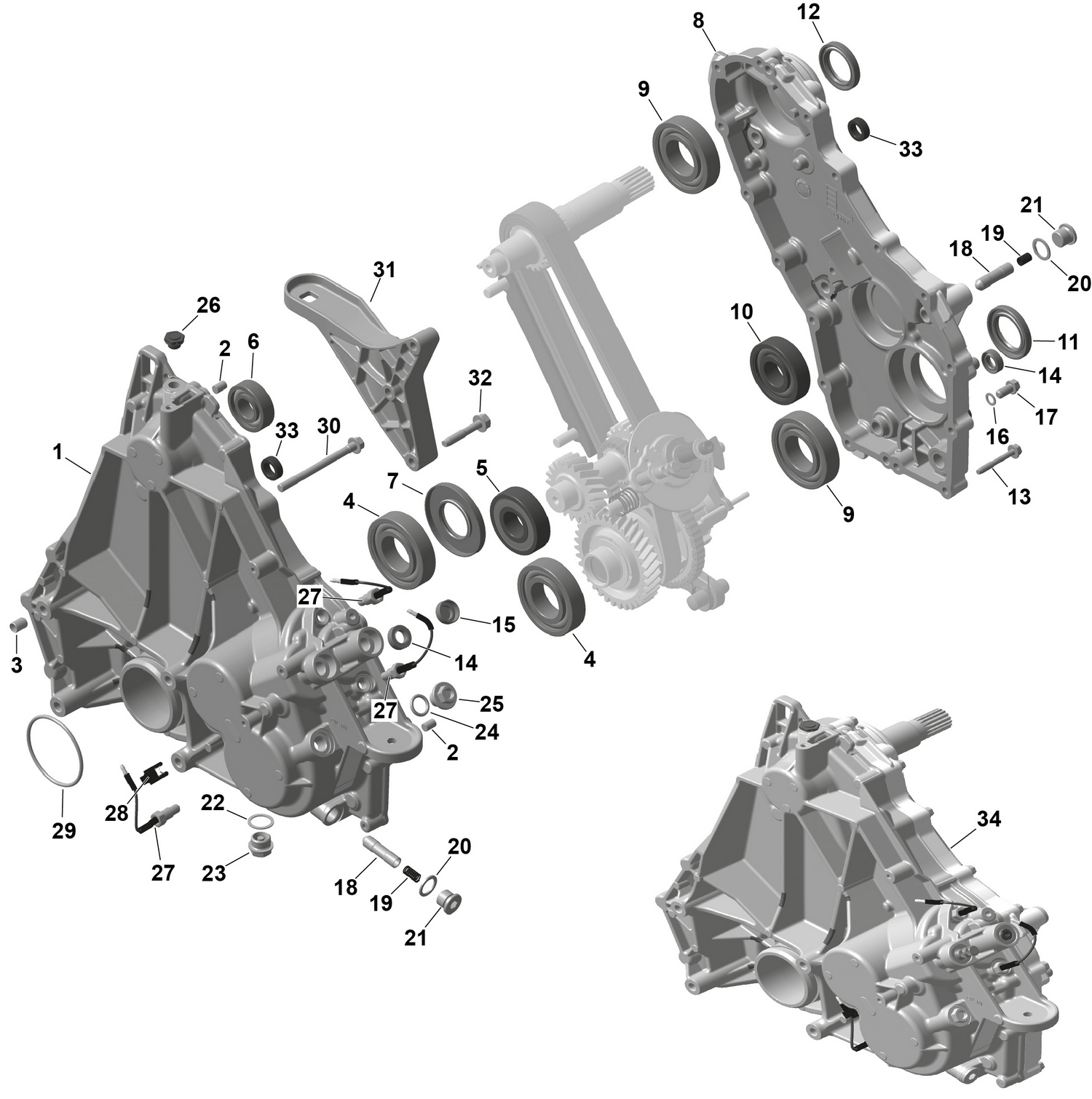

01- ROTAX - GearBox Housing
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420929670 | Dowel Pin 10 X 13 |
| 4 | 420632745 | Ball Bearing |
| 5 | 420832098 | Ball Bearing |
| 6 | 420932433 | Ball Bearing 6204 |
| 8 | 420213015 | Transmission Cover |
| 9 | 420632745 | Ball Bearing |
| 10 | 420832098 | Ball Bearing |
| 13 | 420441921 | Collar Screw M6 X 45 |
| 15 | 420460031 | Plug |
| 17 | 420440852 | Torx Flange Screw M8 X 16 |
| 18 | 420637990 | Index Pin |
| 19 | 420238065 | Spring |
| 21 | 420240234 | Plug Screw M16 X 1.5 |
| 23 | 420840278 | Drain Plug M18 X 1.5 |
| 25 | 420241662 | Plug Screw M14 X 1.5 |
| 26 | 420956590 | Breather Plug |
| 27 | 420640194 | Gear Selection Switch |
| 28 | 420651810 | Tie-Rap With Mount |
| 30 | 420941565 | Collar Hex Screw M8 X 95 |
| 31 | 420911783 | Engine Bracket Rear Inl |
| 32 | 420441932 | Torx Flange Screw M8 X 45 |
| 33 | 420260255 | Rubber Grommet |
