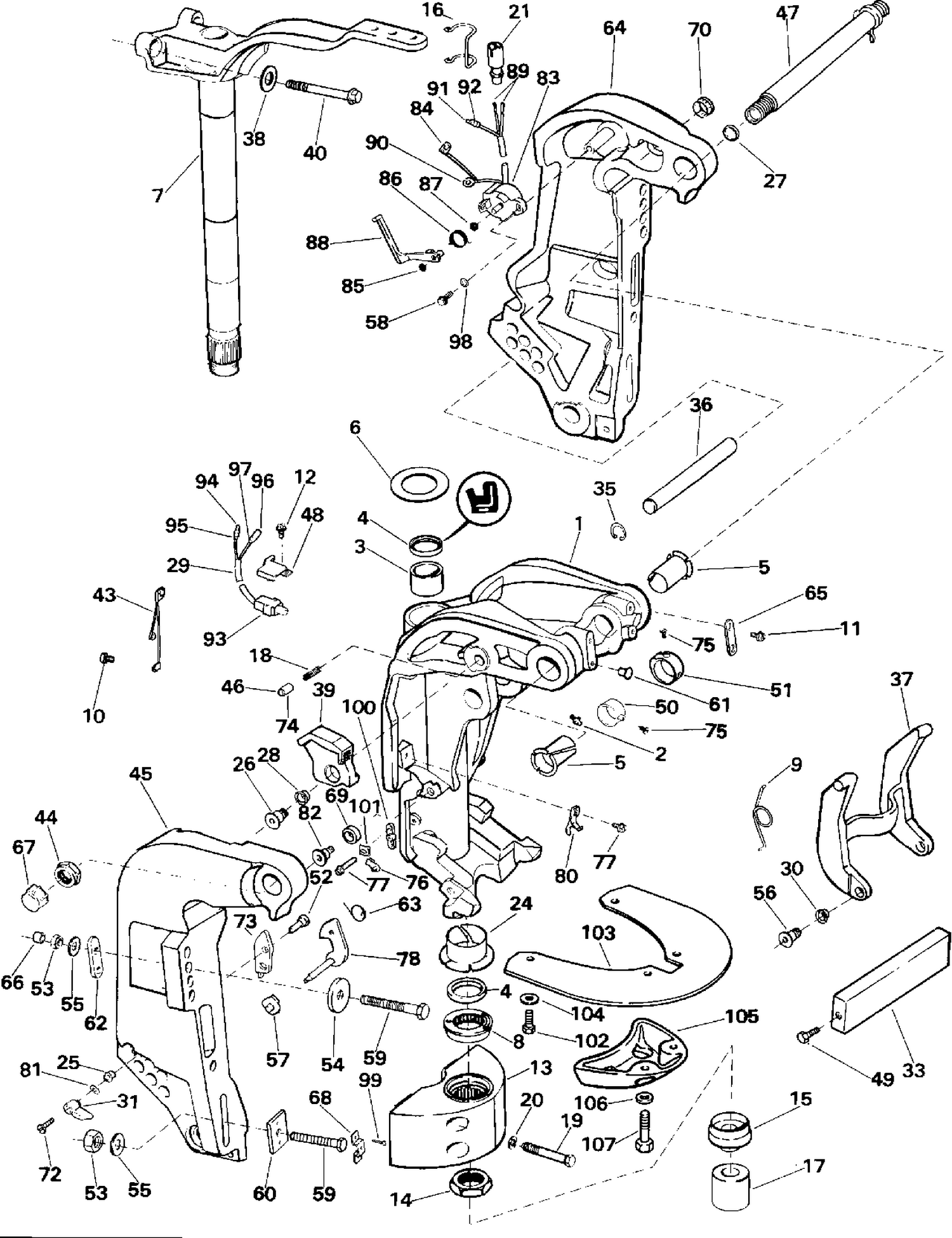

| Ref | Part Number | Description |
|---|
| 1 |
0434691 |
SUPPORT PIVOTANT This part replaces 0433466. |
| 1 |
0434724 |
SUPPORT PIVOTANT This part replaces 0434624. |
| 5 |
0336755 |
BUSHING, Swivel bracket This part replaces 0335464. |
| 6 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 7 |
5009553 |
Steer Arm&Shft 25" This part replaces 0434165. |
| 7 |
5009615 |
Arm&Shaft Ay This part replaces 0434164. |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0336210 |
RESSORT, verrouillage pour transport sur remorque vers support |
| 13 |
0338744 |
MOUNT BRACKET This part replaces 0335506. |
| 13 |
0340006 |
BRACKET, Mount This part replaces 0326797. |
| 14 |
0320746 |
CROU, support de montage |
| 15 |
0912233 |
DISPOSITIF DE RETENUE, joint arbre d'articulation |
| 16 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 17 |
0911312 |
JOINT, arbre d'articulation |
| 18 |
0336230 |
RESSORT, dispositif de blocage, verrouillage de relevage |
| 19 |
0328078 |
SCREW, Mount |
| 20 |
0306314 |
L'WASHER,Scr,long |
| 25 |
0319518 |
BUSHING |
| 26 |
0335481 |
SCREW, Tilt lever to bracket |
| 27 |
0335469 |
WIPER, Tilt lever |
| 28 |
0335486 |
BAGUE, levier de relevage |
| 29 |
0513817 |
BRAIDED SLEEVE |
| 30 |
0335701 |
BUSHING, Trail arm |
| 31 |
0335645 |
HANDLE, Trail lock |
| 33 |
5010190 |
ANODE KIT This part replaces 0433580. |
| 35 |
0336529 |
ANNEAU DE RETENUE, tige de correction d'assiette |
| 36 |
5009389 |
Kit This part replaces 0336525. |
| 37 |
0335470 |
ARM, Trail lock |
| 38 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 39 |
0335485 |
LEVER, Tilt lock |
| 40 |
0335612 |
SCREW, Upper |
| 43 |
0584262 |
LEAD Assy, Ground |
| 44 |
0335554 |
CROU, tube de relevage |
| 45 |
0351922 |
STERN BRACKET, Starboard This part replaces 0335489. |
| 46 |
0336209 |
BALL, Detent, tilt lock |
| 47 |
0435007 |
TILT TUBE Assembly This part replaces 0433592. |
| 48 |
0336171 |
BRACKET, Tilt limit switch |
| 49 |
0324816 |
SCREW, Anode |
| 50 |
0336170 |
STOP, Cam, tilt limit switch |
| 51 |
0336169 |
CAM, Tilt limit switch |
| 52 |
0335408 |
PIN, Latch detent |
| 53 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 54 |
0307238 |
RONDELLE |
| 55 |
0320248 |
RONDELLE, écrou |
| 56 |
0335487 |
SCREW, Thrust roller, swivel bracket |
| 57 |
0336231 |
DETENT, Trail lock arm |
| 59 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) This part replaces 0327053. |
| 59 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 59 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 59 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 60 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 61 |
0334076 |
CAP, Tilt tube |
| 62 |
0321735 |
SUPPORT, Stern bracket |
| 63 |
0335472 |
SPRING, Trail lock |
| 64 |
0351921 |
STERN BRACKET, Port This part replaces 0335416. |
| 65 |
0513787 |
DISPOSITIF DE RETENUE, interrupteur-limiteur de relevage |
| 66 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 67 |
0317894 |
CACHE, tube de relevage |
| 68 |
0318273 |
Bolt hex retainer 1/2 in. |
| 69 |
0335949 |
ROULEAU DE BUTÉE |
| 70 |
0909988 |
BUSHING, Tilt & trim cable This part replaces 0336610. |
| 72 |
0333750 |
SCREW, Cover |
| 73 |
0336233 |
DETENT, Trail lock latch |
| 74 |
0334241 |
GUIDE |
| 75 |
0336507 |
SCREW, Tilt limit switch |
| 76 |
0335814 |
DISPOSITIF DE RETENUE, ressort de verrouillage pour transport sur remorque |
| 78 |
0433461 |
LEVER & SHAFT, Trail lock |
| 80 |
0336172 |
DISPOSITIF DE RETENUE, bras transport sur remorque |
| 81 |
0310057 |
SPRING WASHER, Connector |
| 82 |
0335487 |
SCREW, Thrust roller, swivel bracket |
| 83 |
0584176 |
SENDING UNIT ASSY |
| 93 |
0585141 |
SWITCH ASSY., Tilt limit This part replaces 0584149. |
| 99 |
0319886 |
SCREW |
| 100 |
0336467 |
RETAINER, Support |
| 101 |
0336853 |
ATTACHE, vis, dispositif de retenue |
| 102 |
0910741 |
SCREW, Cover plate |
| 103 |
0345776 |
DÉFLECTEUR DE PROJECTIONS This part replaces 0334979. |
| 105 |
0345776 |
DÉFLECTEUR DE PROJECTIONS This part replaces 0913262. |
