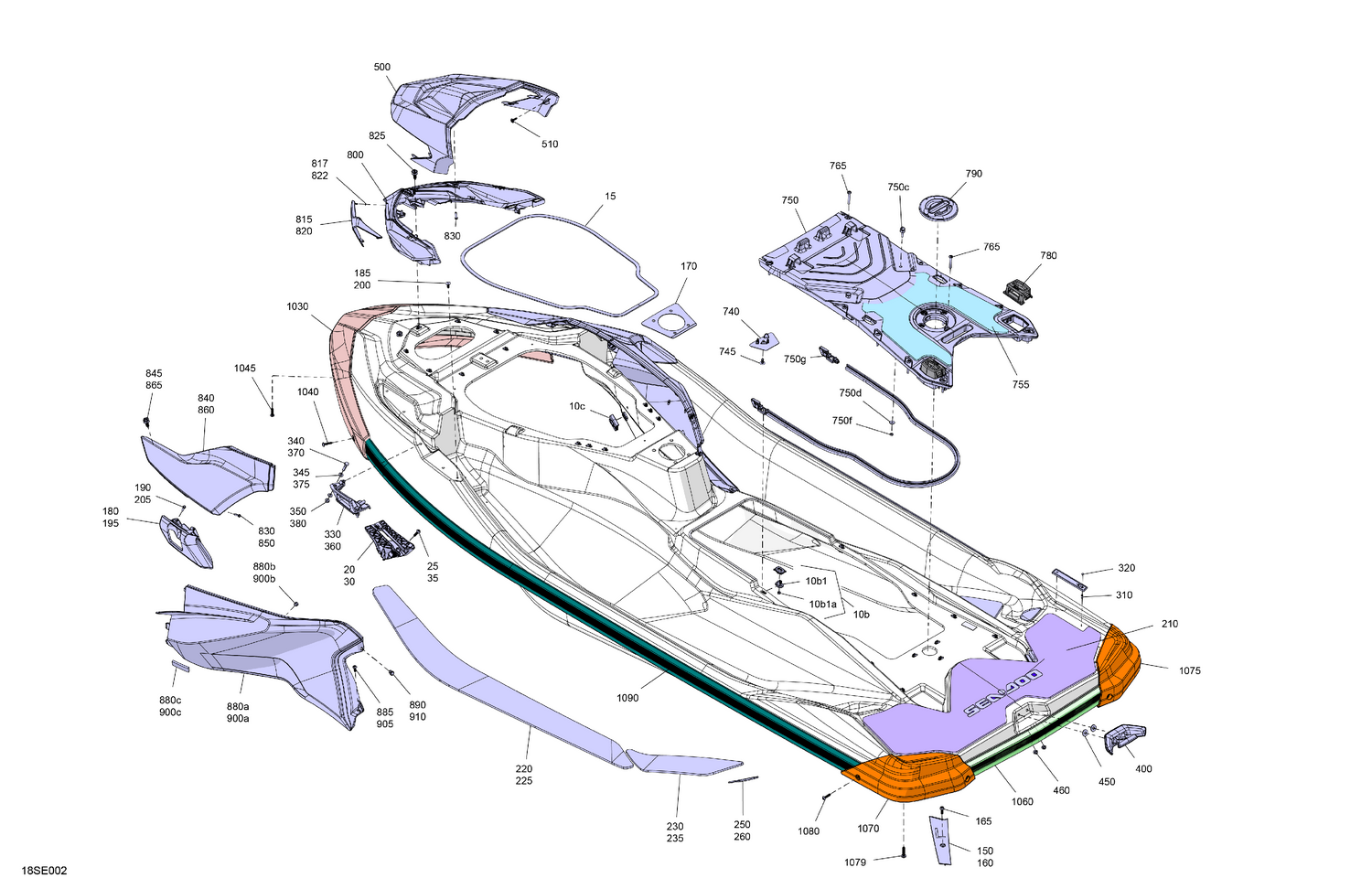

| Ref | Part Number | Description |
|---|
| 10b1a |
232561200 |
Brass Elastic Stop Nut M6 |
| 10c |
293750109 |
Anchorage Tie Wrap |
| 15 |
293250401 |
Gasket |
| 20 |
291004714 |
LH Support |
| 25 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 30 |
291004715 |
RH Support |
| 35 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 150 |
291005176 |
LH Shim |
| 160 |
291005177 |
RH Shim |
| 165 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 170 |
293250451 |
Gasket |
| 180 |
291004661 |
LH Shell Cleat |
| 185 |
293730011 |
Black, Dart |
| 190 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 195 |
291004719 |
RH Shell Cleat |
| 200 |
293730011 |
Black, Dart |
| 205 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 210 |
291005076 |
Rear Plat-Form Carpet |
| 220 |
291005351 |
LH Front Anti Slip Mat |
| 225 |
291005350 |
RH Front Anti Slip Mat |
| 230 |
291005353 |
LH Rear Anti Slip Mat |
| 235 |
291005352 |
RH Rear Anti Slip Mat |
| 250 |
291005883 |
LH Anti Slip Mat |
| 260 |
291005884 |
RH Anti Slip Mat |
| 310 |
293150016 |
Rivet 1/8" |
| 320 |
293000014 |
Black, Snap Cap |
| 330 |
291004559 |
LH Cleat |
| 340 |
207083560 |
Hex. Screw M8 X 35 |
| 345 |
234081600 |
Stainless, Flat Washer 8 mm |
| 350 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 360 |
291004720 |
RH Cleat |
| 370 |
207083560 |
Hex. Screw M8 X 35 |
| 375 |
234081600 |
Stainless, Flat Washer 8 mm |
| 380 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 400 |
291004597 |
Cleat |
| 450 |
234082600 |
Flat Washer 8 mm, Stainless |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 500 |
291005579 |
Deep Black, Hood |
| 510 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 740 |
291004941 |
Hose Protector |
| 745 |
293730011 |
Black, Dart |
| 750c |
291004611 |
STUD - Call your local BRP dealership This part replaces 291004611. |
| 750d |
234062600 |
Flat Washer M6, Stainless |
| 750f |
232561200 |
Brass Elastic Stop Nut M6 |
| 750g |
291004717 |
Seal |
| 755 |
291005861 |
Deep Black, Rear Mat |
| 765 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 780 |
295100858 |
Linq Bases Kit |
| 790 |
291004481 |
Access Cap Ass'y |
| 800 |
291005915 |
Front Hood Grille |
| 815 |
291005970 |
Gulfstream Blue, LH Trim |
| 817 |
250100206 |
Push Nut |
| 820 |
291005971 |
Gulfstream Blue, RH Trim |
| 822 |
250100206 |
Push Nut |
| 825 |
293730071 |
Dard |
| 830 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 840 |
291004676 |
Iceland Grey, LH Front Body Panel |
| 845 |
293730071 |
Dard |
| 850 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 860 |
291004775 |
Iceland Grey, RH Front Body Panel |
| 865 |
293730071 |
Dard |
| 880a |
291004556 |
Iceland Grey, LH Central Body Panel |
| 880b |
293830005 |
Rubber Bumper |
| 880c |
278003860 |
Stopper |
| 885 |
250001206 |
Screw-Plastite Torx Hd.M6.81X20 |
| 890 |
293150230 |
Tuflok Plastic Rivet |
| 900a |
291004558 |
Iceland Grey, RH Central Body Panel |
| 900b |
293830005 |
Rubber Bumper |
| 900c |
278003860 |
Stopper |
| 905 |
250001206 |
Screw-Plastite Torx Hd.M6.81X20 |
| 910 |
293150230 |
Tuflok Plastic Rivet |
| 1030 |
291004452 |
Front Bumper |
| 1040 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 1045 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 1060 |
291004468 |
Bumper 2775±25mm |
| 1070 |
291004465 |
LH Rear Bumper |
| 1075 |
291004466 |
RH Rear Bumper |
| 1079 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 1080 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
