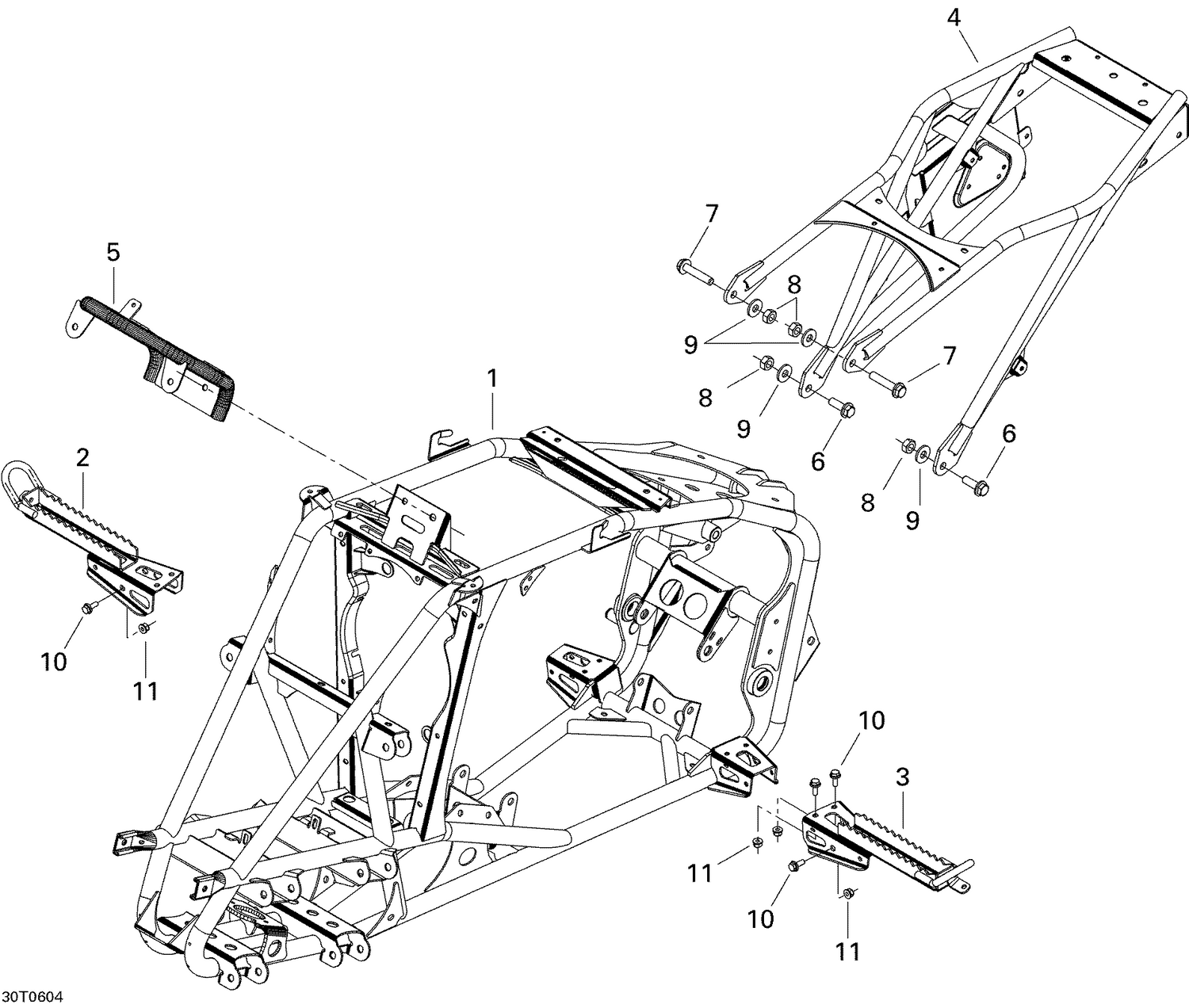

| Ref | Part Number | Description |
|---|
| 1 |
705200922 |
FRAME - Call your local BRP dealership |
| 2 |
705200688 |
RH FOOTREST, BLACK - Call your local BRP dealership |
| 3 |
705200695 |
LH FOOTREST, BLACK - Call your local BRP dealership |
| 4 |
705200716 |
Frame Extension |
| 5 |
705200717 |
Box Support |
| 6 |
207502587 |
HEX. FLANGED SCREW M10 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 7 |
207505087 |
HEX. FLANGED SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership |
| 8 |
232001487 |
Hex. Nut M10 |
| 9 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 10 |
207661644 |
Hex. Flange Screw M6 X 16 |
