| Ref | Part Number | Description |
|---|
| 1 |
0396409 |

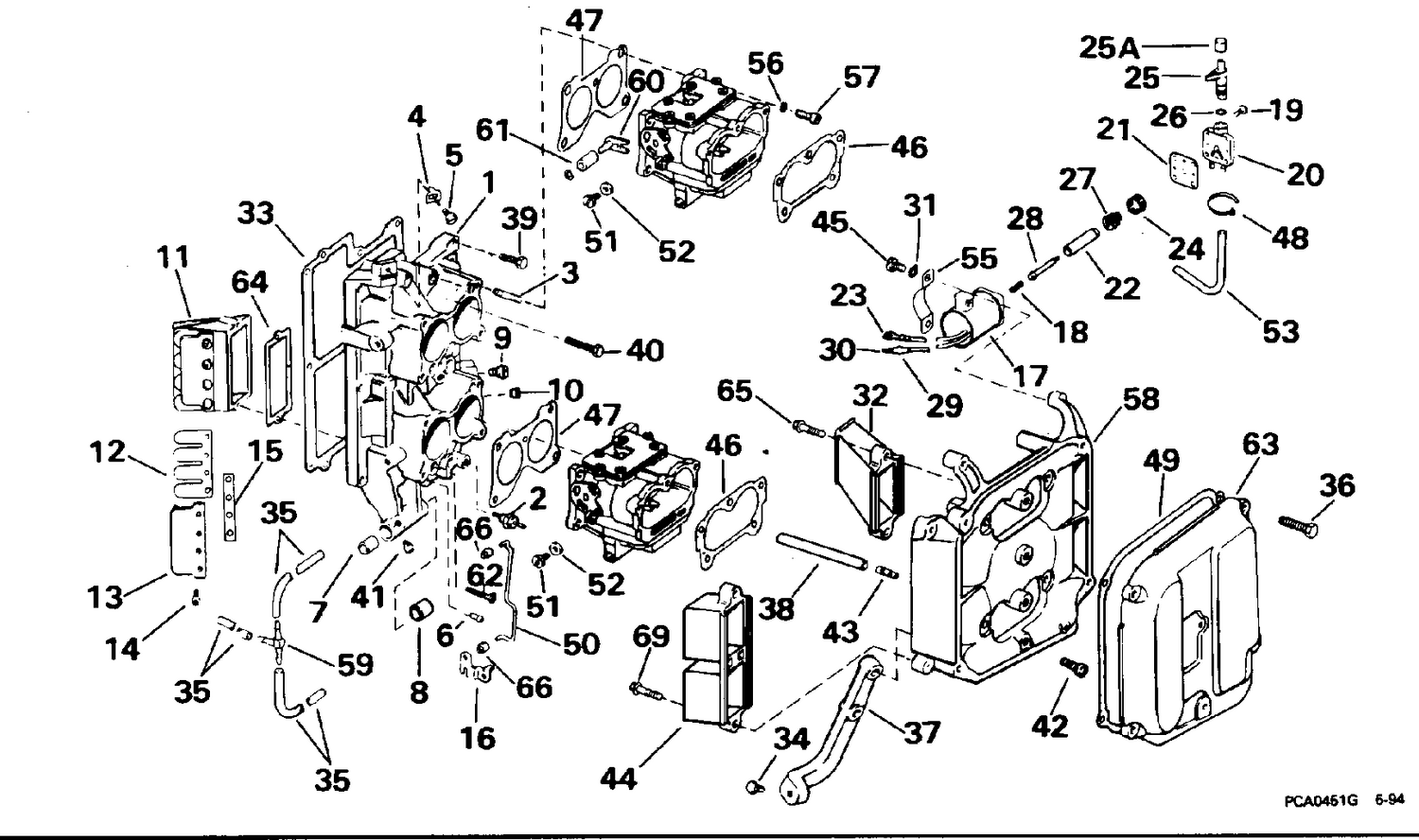

INTAKE MANIFOLD ASSY. |
| 2 |
0392988 |
CHECK VALVE |
| 3 |
0314956 |
STUD |
| 4 |
0330115 |
CLAMP, Power pack connector |
| 5 |
0329594 |
SCREW, Cam follower |
| 7 |
0332126 |
BUSHING, Shift lever |
| 8 |
0331839 |
BUSHING |
| 11 |
0389823 |
CLAPET |
| 16 |
0320575 |
ADJ LEVER, Throttle link |
| 17 |
5007356 |
Kit Ay This part replaces 0437238. |
| 32 |
0329612 |
EXTENSION, Base, port |
| 33 |
0319174 |
GASKET, Exhaust cover, 85, 100, 115 hp |
| 35 |
HOSE, |
Drain system |
| 36 |
0909533 |
SCREW, Pressure relief valve cover |
| 37 |
0330900 |
BRACKET, Throttle shift cable |
| 38 |
HOSE, |
Air silencer |
| 39 |
0309905 |
SCEW,Cylinder head |
| 40 |
0322906 |
SCREW, Intake, long |
| 42 |
0328695 |
CLAMP, Engine cable |
| 44 |
0330939 |
EXTENSION, Starboard |
| 46 |
0319771 |
GASKET SET, Air silencer |
| 47 |
0327707 |
GASKET, Air silencer |
| 49 |
0321722 |
GASKET, Cover |
| 50 |
0330158 |
LINK, Throttle lever |
| 51 |
0329594 |
SCREW, Cam follower |
| 53 |
HOSE, |
Primer solenoid system |
| 54 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 55 |
0330118 |
CLAMP |
| 57 |
0203023 |
SCREW, Bracket to upper carb. |
| 58 |
0911432 |
BASE, Air silencer |
| 59 |
0325569 |
T, amorçage |
| 60 |
0432638 |
LEVER & PIN |
| 61 |
0432639 |
GALET, contre-came |
| 62 |
0321707 |
SCREW, Leaf plate |
| 63 |
0325335 |
COVER, Air silencer |
| 64 |
0321907 |
GASKET, Leaf plate |
| 65 |
0909533 |
SCREW, Pressure relief valve cover |
