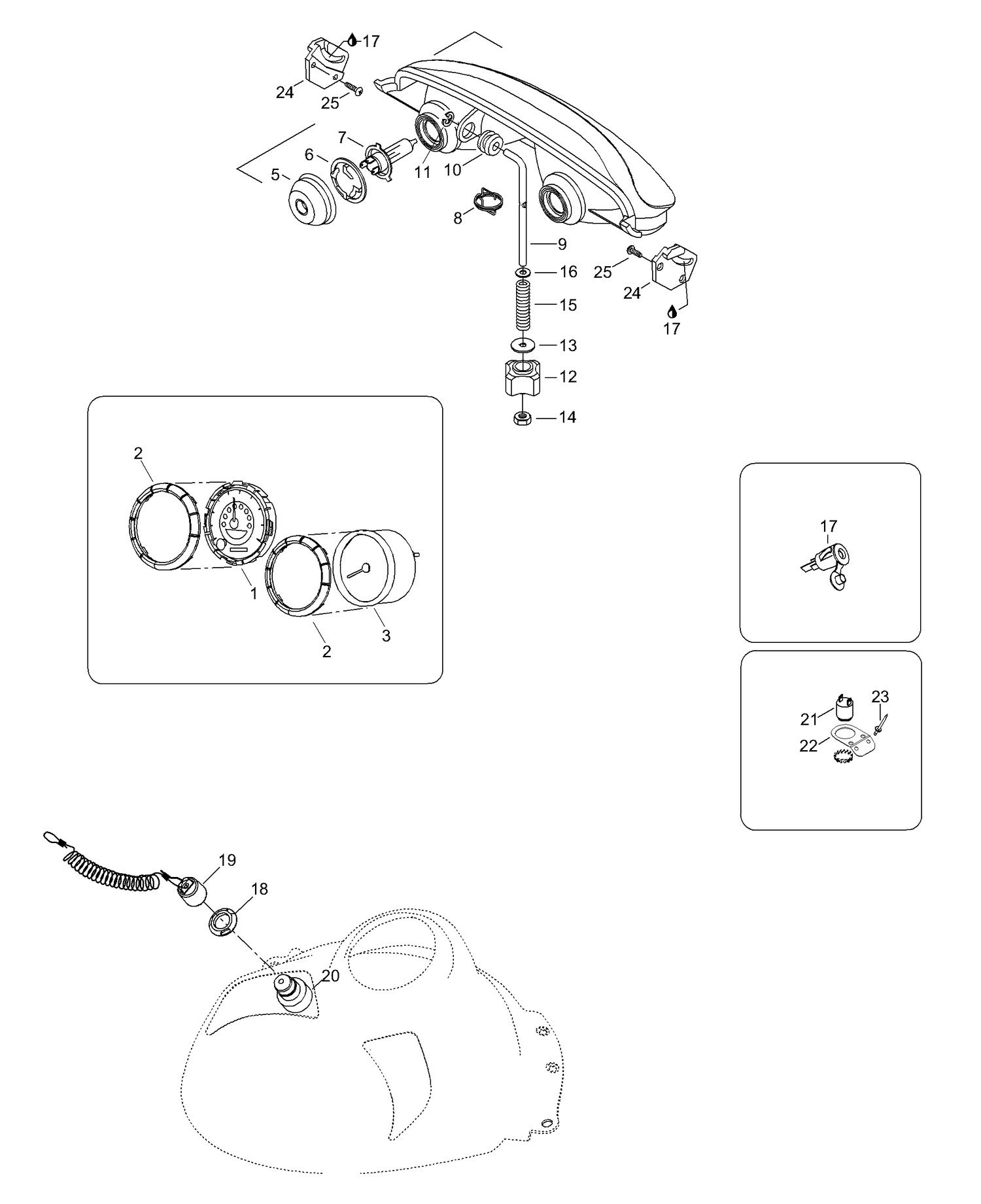

10- Electric
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176012 | Speedometer |
| 2 | 515179005 | Gauge Ring This part replaces 515175651. |
| 3 | 515176072 | Tachometer |
| 5 | 410607100 | PROTECTOR CAP - Call your local BRP dealership |
| 6 | 410608300 | BULB HOLDER - Call your local BRP dealership |
| 7 | 515176274 | Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 8 | 5447238 | Spring |
| 9 | 515175920 | Adjuster rod |
| 10 | 415100800 | Grommet - Call your local BRP dealership |
| 11 | 732610072 | Push Nut |
| 12 | 515175548 | Handle - Call your local BRP dealership |
| 13 | 20038 | Washer |
| 14 | 33010 | Lock Nut M6 (1=10Pcs) |
| 15 | 415100600 | SPRING - Call your local BRP dealership |
| 16 | 20003 | Washer |
| 17 | 413707500 | Grease tube LMZ 400 g |
| 18 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 19 | 515178284 | Dess. This part replaces 515166900. |
| 20 | 515175913 | D.E.S.S. switch |
| 21 | 515176035 | HORN - Call your local BRP dealership |
| 22 | 5447941 | HORN SUPPORT - Call your local BRP dealership |
| 23 | 36005 | Rivet |
| 24 | 517289300 | R.H. headlamp support |
| 24 | 517289400 | L.H. headlamp support |
