Parts Catalog

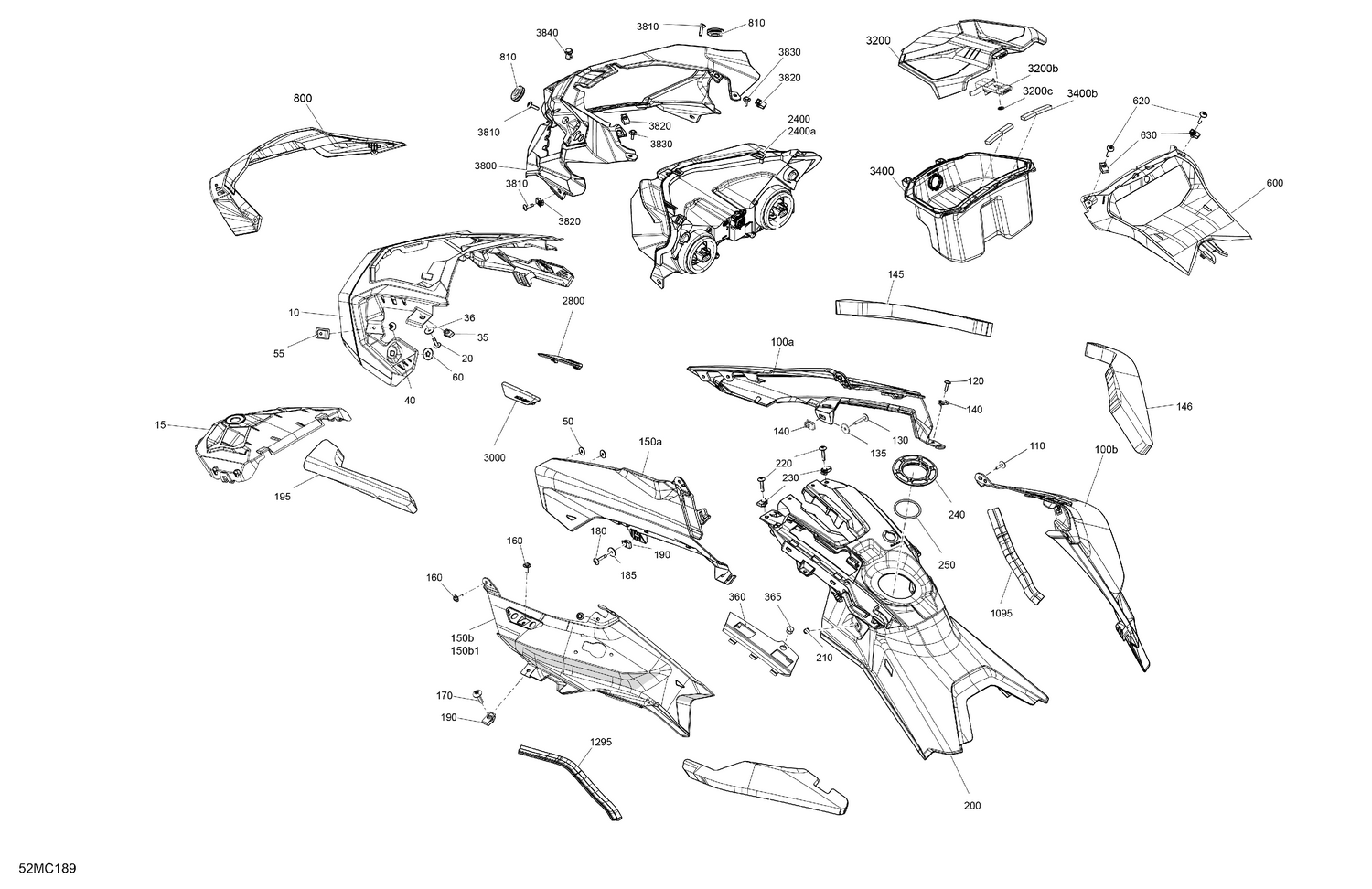

07- Body - Hood - VIP Hi-End Gauge

Parts (48)

Ref	Part Number	Description
10	517306284	Deep Black, Center Hood This part replaces 517308950.
15	517307593	Central Hood Grille
20	250000528	Torx Screw M5 X 20
35	250000958	Panel Nut M5 X 0.8
36	250200166	Washer
40	293150104	Pop Rivet 3/16"
50	517124300	Washer
55	517305109	Rivet Plate
60	508000853	Push Nut
110	250000725	Screw M4 X 16
120	250000528	Torx Screw M5 X 20
130	250000587	Torx Screw M5 X 26
135	250200166	Washer
140	250000958	Panel Nut M5 X 0.8
145	517305763	RH Front Hood Foam
146	517306001	RH Hood Foam
150b1	517307311	LH Rear Hood
160	250000725	Screw M4 X 16
170	250000528	Torx Screw M5 X 20
180	250000587	Torx Screw M5 X 26
185	250200166	Washer
190	250000958	Panel Nut M5 X 0.8
195	517305764	LH Front Hood Foam
200	517307684	Rear Console
210	233251434	Flange Elastic Nut M5
220	250000587	Torx Screw M5 X 26
230	250000958	Panel Nut M5 X 0.8
240	517306602	Console Nut
250	706002839	O-Ring
360	517306583	LH Front Console
365	572051500	Cap
600	517307400	Gauge Support
620	250000586	Torx Truss M5 X 20
630	250000958	Panel Nut M5 X 0.8
800	517305875	Deep Black, Wind Deflector
810	517303756	Grommet
1095	219704371	Neoprene Seal 3000 mm Long
1295	219704371	Neoprene Seal 3000 mm Long
2400a	415130081	Bulb
2800	517306049	RH Hood Plate
3000	517306050	LH Hood Plate
3200b	517305779	Latch
3200c	732610072	Push Nut
3400b	517305157	Seal Joint
3800	517306301	Headlamp Fairing
3810	250000528	Torx Screw M5 X 20
3820	250000958	Panel Nut M5 X 0.8
3830	250000725	Screw M4 X 16
